73420 (416-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) Seat Parts Diagram

Garden Tractor

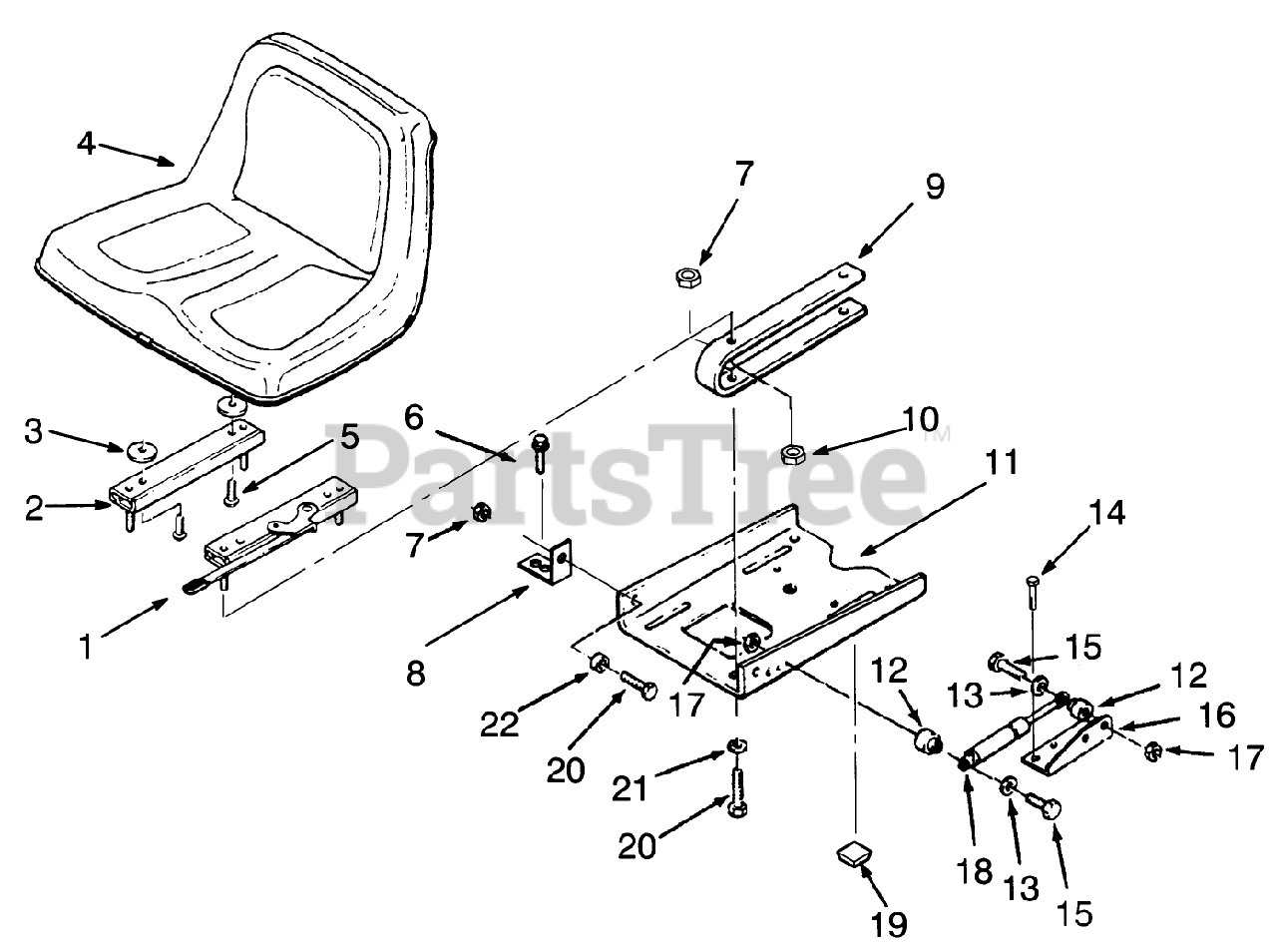

Seat Parts Diagram

  • Title

1

Toro 114264

DISCONTINUED
(Superseded to 93-0319)

$

$

Not available

2

Toro 114265

DISCONTINUED

$

$

Not available

3

Toro 109989

SPACER-NYLON

$5.99

$

In Stock, only 2 left!

0

4

Toro 79-3680

See Supercession: 88-3210
(Superseded to 88-3210)

$1087.99

$

Usually ships in 3-6 days

0

5

Toro 9108652

Bolt

$

$

Currently unavailable

6

Toro 913464

See Supercession: 130-9795
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 105524

DISCONTINUED

$

$

Not available

9

Toro 114263

See Supercession: 114263-03
(Superseded to 114263-03)

$

$

Not available

10

Toro 9151126

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

11

Toro 78-2990

DISCONTINUED
(Superseded to 78-2990-03)

$

$

Not available

12

Toro 114344

SPACER

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

14

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

15

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

16

Toro 114345

BRACKET-CYLINDER *R

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 114343

GAS SPRING

$144.99

$

In Stock, only 1 left!

0

19

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

Usually ships in 3-6 days

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

22

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0
