73520 (520-H) - Toro Garden Tractor (SN: 059000178 - 059999999) (1995) EATON HYDROSTATIC TRANSMISSION #1100-062 Parts Diagram

Garden Tractor

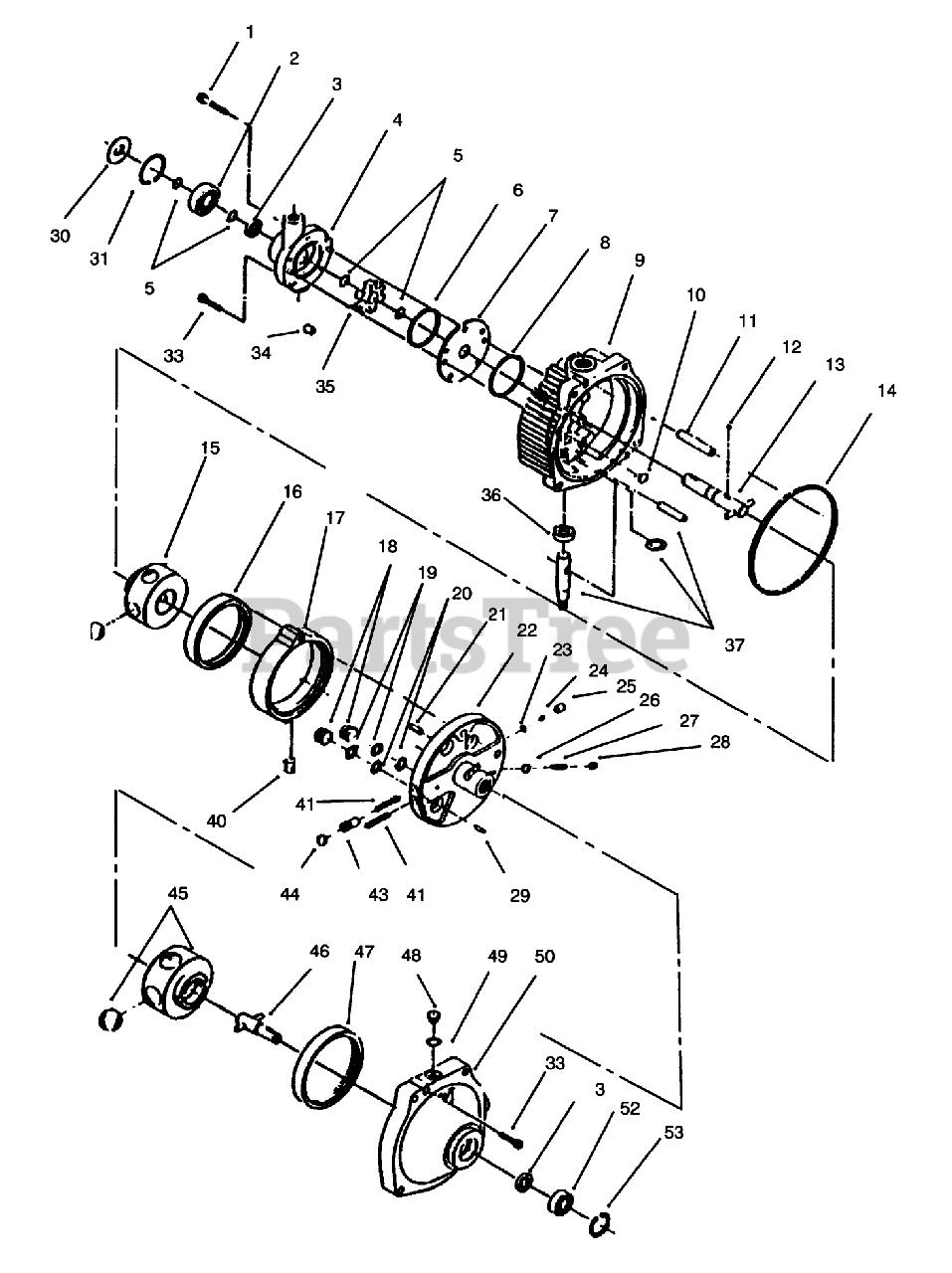

EATON HYDROSTATIC TRANSMISSION #1100-062 Parts Diagram

  • Title

1

Toro 56-2800

CAPSCREW

$

$

Not available

2

Toro 56-2810

BEARING

$204.99

$

Usually ships in 3-6 days

0

3

Toro 56-2820

SEAL-OIL

$38.99

$

In Stock, only 3 left!

0

4

Toro 112637

Housing-Pump Assembly (Incl. Ref.# 3)

$

$

Not available

5

Toro 56-3090

RING

$4.49

$

In Stock, only 2 left!

0

6

Toro 56-2850

SEAL

$6.49

$

In Stock, Qty 7

0

7

Toro 56-2860

PLATE

$

$

Not available

8

Toro 56-2870

SEAL

$7.99

$

In Stock, only 2 left!

0

9

Toro 112641

Cover Assembly (Incl. Ref. #11,36 & 37)

$

$

Not available

10

Toro 56-2880

BUTTON

$

$

Not available

11

Toro 56-2890

PIN

$

$

Not available

12

Toro 56-2900

PIN

$

$

Not available

13

Toro 56-2910

SHAFT

$

$

Not available

14

Toro 56-2920

SEAL

$

$

Not available

15

Toro 56-2930

ROTOR

$

$

Not available

16

Toro 113136

PUMP-RACE

$

$

Not available

17

Toro 93-9810

RING-CAM

$633.99

$

Usually ships in 3-6 days

0

18

Toro 56-2950

PISTON

$

$

Not available

19

Toro 56-2960

RING

$5.99

$

Usually ships in 3-6 days

0

20

Toro 56-2970

O-RING

$3.49

$

Usually ships in 3-6 days

0

21

Toro 56-2980

PIN

$

$

Not available

22

Toro 56-2990

Pintle Assembly (Inc. Ref. #1 18-21,23-29 41,43 & 44)

$3389.99

$

Usually ships in 3-6 days

0

23

Toro 56-3000

RING

$4.49

$

In Stock, only 2 left!

0

24

Toro 56-3010

BALL

$

$

Not available

25

Toro 56-3020

BODY

$

$

Not available

26

Toro 56-3030

BALL

$

$

Not available

27

Toro 56-3040

SPRING

$

$

Not available

28

Toro 56-3050

PLUG

$

$

Not available

29

Toro 56-3060

PIN

$

$

Not available

30

Toro 112652

SHIELD-GRASS

$

$

Not available

31

Toro 112653

RETAINING-RING

$

$

Not available

33

Toro 56-3100

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

34

Toro 56-3110

ROLL

$20.99

$

Usually ships in 3-6 days

0

35

Toro 56-3120

CARRIER

$194.99

$

Usually ships in 3-6 days

0

36

Toro 56-3130

SEAL-OIL

$

$

Not available

37

Toro 56-3140

SHAFT KIT

$

$

Not available

40

Toro 56-3170

INSERT

$

$

Not available

41

Toro 56-3180

SPRING

$

$

Not available

43

Toro 56-3200

BODY

$

$

Not available

44

Toro 56-3210

BALL

$

$

Not available

45

Toro 56-3220

ROTOR

$

$

Not available

46

Toro 56-3230

SHAFT

$

$

Not available

47

Toro 56-3240

RACE

$

$

Not available

48

Toro 56-3250

Plug-Asm (Incl. Ref. #49)

$

$

Not available

49

Toro 56-3260

O-RING

$

$

Not available

50

Toro 93-9811

Body

$

$

Currently unavailable

52

Toro 112666

Bearing-Output
(Superseded to 112602)

$61.99

$

Usually ships in 3-6 days

0

Toro 112602

BEARING-BALL (INPUT)

$61.99

$

Usually ships in 3-6 days

0

53

Toro 56-3290

RING

$

$

Not available

Toro 56-3310

Kit-Seal, Overhaul (Incl. Ref. #3, 6, 8, 14, 19, 20, 36, & 49)

$98.99

$

Usually ships in 3-6 days

0

Toro 93-9812

Body Assembly (Incl. Ref. #3, 33, 46-50.52, 53 & 57)

$

$

Currently unavailable

56

Toro 56-2940

Ring-Cam (Incl. Ref.#16-17)

$

$

Not available

57

Toro 93-9813

FITTING-HYDRAULIC 90 DEG

$

$

Not available
