73520 (520-H) - Toro Garden Tractor (SN: 059000178 - 059999999) (1995) Front Axle And Wheel Assembly Parts Diagram

Garden Tractor

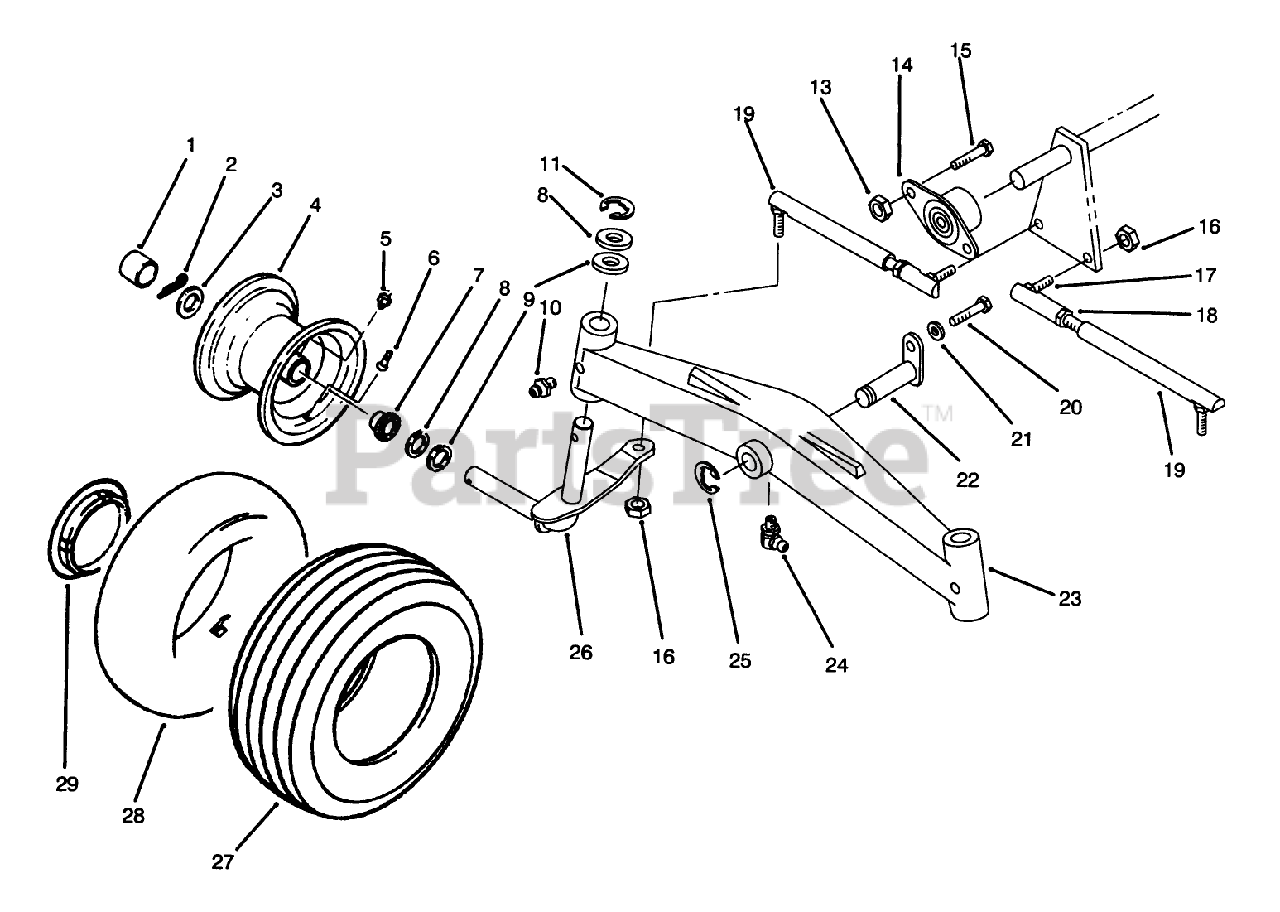

Front Axle And Wheel Assembly Parts Diagram

  • Title

1

Toro 111951

HUBCAP

$18.99

$

In Stock, Qty 9

0

2

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

3

Toro 111952

WASHER WHEEL

$7.49

$

In Stock, only 2 left!

0

4

Toro 93-9802

See Supercession: 93-9801
(Superseded to 93-9801)

$272.99

$

Usually ships in 3-6 days

0

5

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

6

Toro 5108

VALVE

$7.99

$

In Stock, only 3 left!

0

7

Toro 110513

BEARING-WHEEL

$23.99

$

In Stock, Qty 20+

0

8

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

9

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

10

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

11

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 6472

BEARING-FLANGED

$27.99

$

In Stock, only 2 left!

0

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

17

Toro 78-2920

See Supercession: 94-7572
(Superseded to 94-7572)

$36.99

$

In Stock, only 2 left!

0

18

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 13

0

19

Toro 78-2900

ASS'Y-TIE ROD*

$74.99

$

In Stock, only 2 left!

0

20

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

22

Toro 6216

PIN AND PLATE ASM

$54.99

$

Usually ships in 3-6 days

0

23

Toro 5638

See Supercession: 5638-01
(Superseded to 5638-01)

$

$

Not available

24

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, only 1 left!

0

25

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0

26

Toro 113382

See Supercession: 113382-01
(Superseded to 113382-01)

$120.99

$

In Stock, only 1 left!

0

Toro 113381

See Supercession: 113381-01
(Superseded to 113381-01)

$125.99

$

Usually ships in 3-6 days

0

27

Toro 117127

TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL

$

$

Not available

28

Toro 100079

TUBE

$

$

Not available

29

Toro 114427

DISCONTINUED

$

$

Not available
