73520 (520-H) - Toro Garden Tractor (SN: 059000178 - 059999999) (1995) INTAKE MANIFOLD Parts Diagram

Garden Tractor

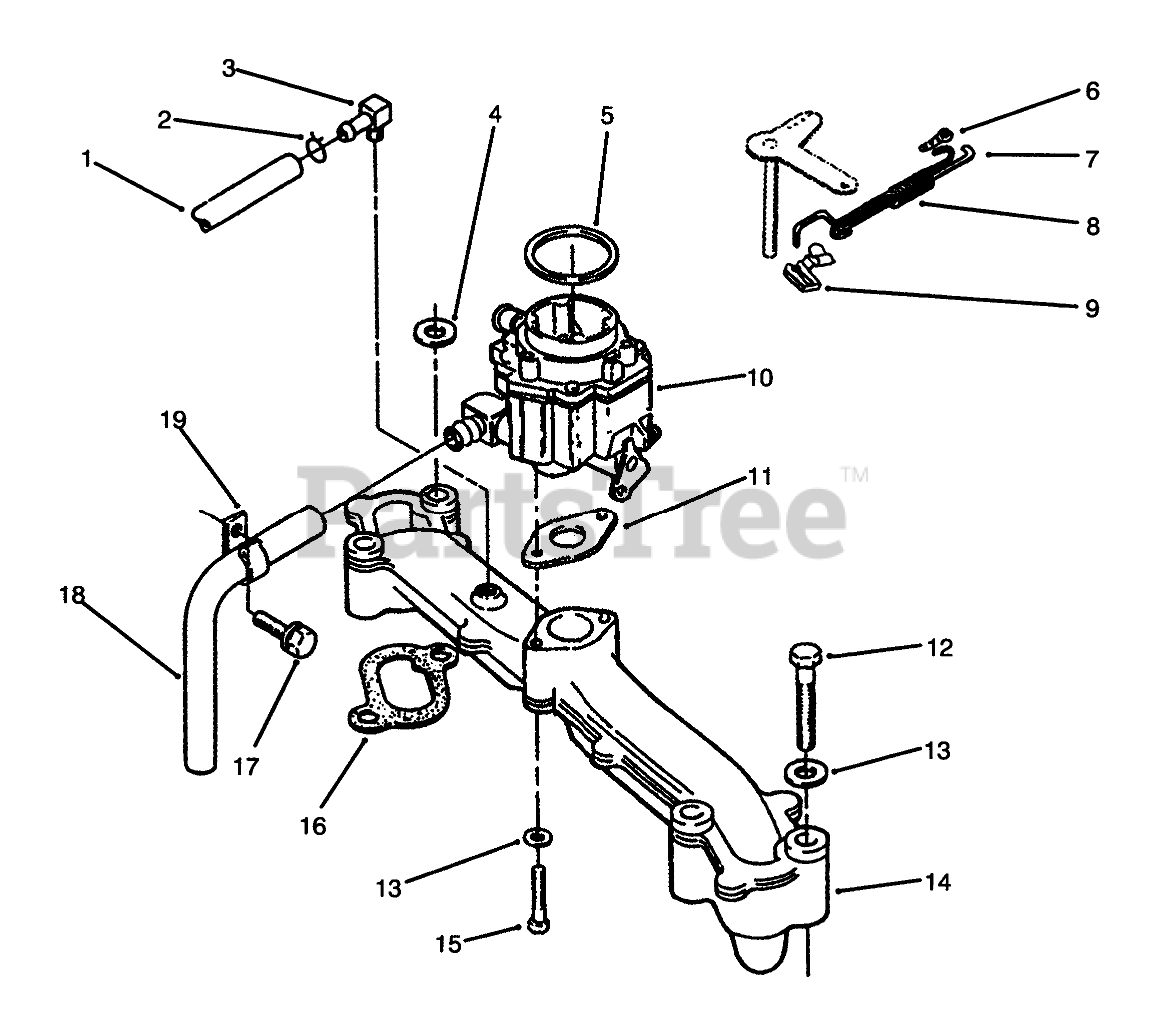

INTAKE MANIFOLD Parts Diagram

  • Title

1

Toro 82-1120

HOSE-RUBBER, BREATHER

Note: NOT REPAIRABLE

$

$

Not available

2

Toro 82-1080

CLAMP-HOSE

Note: NOT REPAIRABLE

$7.49

$

In Stock, only 4 left!

0

2

Toro 82-1090

CLAMP-HOSE, BREATHER

Note: NOT REPAIRABLE

$

$

Not available

3

Toro 82-1070

FITTING-BARB

Note: NOT REPAIRABLE

$

$

Not available

4

Toro NN10362

FLAT WASHER

Note: NOT REPAIRABLE

$

$

Not available

5

Toro 57-9620

SEAL

Note: NOT REPAIRABLE

$6.99

$

Usually ships in 3-6 days

0

6

Toro 57-9700

CLIP

Note: NOT REPAIRABLE

$5.49

$

In Stock, only 1 left!

0

7

Toro NN10227

Governor Control Rod
(Superseded to 57-9160)

Note: NOT REPAIRABLE

$

$

Not available

8

Toro NN10877

Spring-Governor Rod
(Superseded to NN10928)

Note: NOT REPAIRABLE

$

$

Not available

9

Toro 57-9730

CLIP

Note: NOT REPAIRABLE

$5.99

$

Usually ships in 3-6 days

0

10

Toro 62-2790

Assembly-Carburetor Before Serial No. 59000178 (Incl. Ref. #5 & 11)
(Superseded to NN10204)

Note: NOT REPAIRABLE

$

$

Not available

Toro 94-1847

Kit-Carburetor (220)
(Superseded to NN10204)

Note: NOT REPAIRABLE

$

$

Not available

Toro 94-1843

Kit-Float After Serial No. 5900177 (Includes Float & Gasket)
(Superseded to 93-1677)

Note: NOT REPAIRABLE

$139.99

$

Usually ships in 3-6 days

0

Toro 94-1848

JET - HIGH ALTITUDE

Note: NOT REPAIRABLE

$

$

Not available

Toro 94-1844

KIT-ACCELERATOR PUMP FIX

Note: NOT REPAIRABLE

$

$

Not available

11

Toro 82-0850

GASKET-CARBURETOR

Note: NOT REPAIRABLE

$11.99

$

In Stock, only 1 left!

0

12

Toro NN10375

HHCS

Note: NOT REPAIRABLE

$

$

Not available

13

Toro 82-1350

WASHER-FLAT

Note: NOT REPAIRABLE

$

$

Not available

14

Toro 92-0918

MANIFOLD

Note: NOT REPAIRABLE

$

$

Not available

15

Toro NN10545

HEX-HEAD CAP SCREW

Note: NOT REPAIRABLE

$

$

Not available

16

Toro 71-5980

GASKET

Note: NOT REPAIRABLE

$14.99

$

In Stock, Qty 5

0

17

Toro 82-1540

SCREW-HWH

Note: NOT REPAIRABLE

$

$

Not available

18

Toro NN10306

FUEL HOSE

Note: NOT REPAIRABLE

$

$

Not available

19

Toro 71-6220

CLIP-WIRE

Note: NOT REPAIRABLE

$

$

Not available
