79201 - Toro 42"/48" Easy Twin Vacuum Bagger (SN: 039000001 - 039999999) (1993) SHIELD ASSEMBLY (48" CUTTING UNIT) Parts Diagram

42"/48" Easy Twin Vacuum Bagger

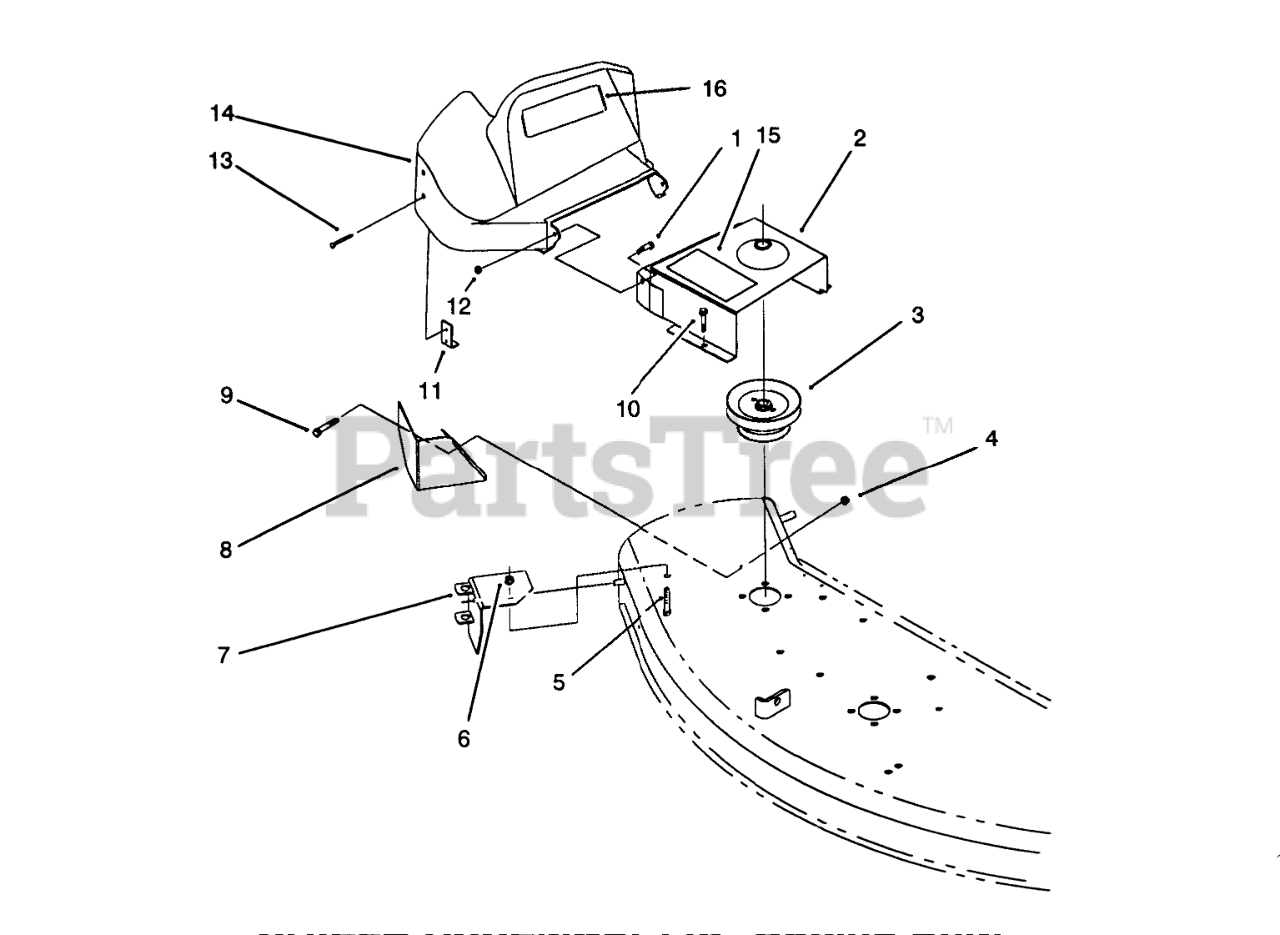

SHIELD ASSEMBLY (48" CUTTING UNIT) Parts Diagram

  • Title

1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

2

Toro 88-9590

48" Inner Shield Assembly (Incl. Ref. #15)

$

$

Not available

3

Toro 79-7320

PULLEY

$139.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 79-7000

PIVOT SUPPORT ASM
(Superseded to 79-7000-03)

$106.99

$

Usually ships in 3-6 days

0

8

Toro 79-7290

48" DEFLECTOR B
(Superseded to 79-7290-03)

$104.99

$

Usually ships in 3-6 days

0

9

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

10

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

11

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$11.99

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 79-0470

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

14

Toro 92-1164

Belt Shield Assembly (Incl. Ref. #16)
(Superseded to 86-9300)

$304.99

$

Usually ships in 3-6 days

0

15

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

16

Toro 79-7620

DECAL - DANGER

$

$

Not available
