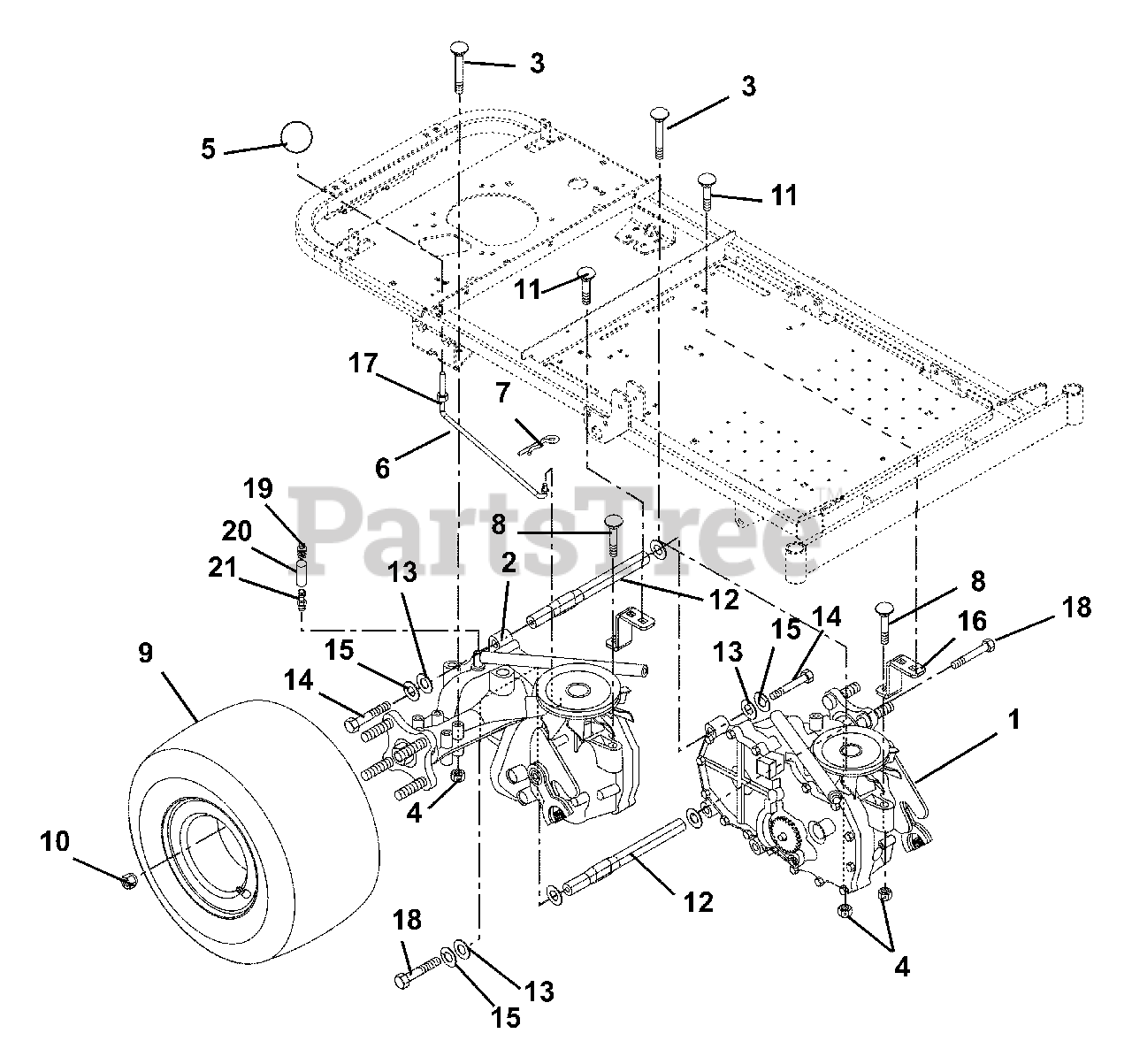

915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 009999) Transaxle, Dump Valves And Rear Wheels Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 00177300

EZT, Left Hand Transaxle-Hydrogear

$969.99

$

Usually ships in 4-12 days

0

2

Gravely 00177200

EZT, Right Hand Transaxle-Hydrogear

$950.99

$

Usually ships in 4-12 days

0

3

Gravely 06212300

Bolt-Round Head Square Neck .31-18 x 2.75

$2.99

$

In Stock, Qty 8

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07520500

Knob

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 00164000

Rod, Dump EZT

$

$

Not available

7

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

8

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 01588700

Assembly, Tire 8.5 x 18 2 Ply
(Superseded to 07100234)

$155.99

$

In Stock, only 1 left!

0

10

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

12

Gravely 00187100

Rod

$61.99

$

In Stock, Qty 5

0

13

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 6

0

14

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 00183551

Strap, Torque

$33.99

$

In Stock, only 3 left!

0

17

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

18

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

19

Gravely 07026400

Cap, Vent .50

$14.99

$

In Stock, Qty 6

0

20

Gravely 01543100

Hose, Vent

$9.49

$

In Stock, Qty 5

0

21

Gravely 07026300

Fitting, Straight .50

$23.99

$

In Stock, only 4 left!

0
