915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 009999) Transaxle, Dump Valves And Rear Wheels Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

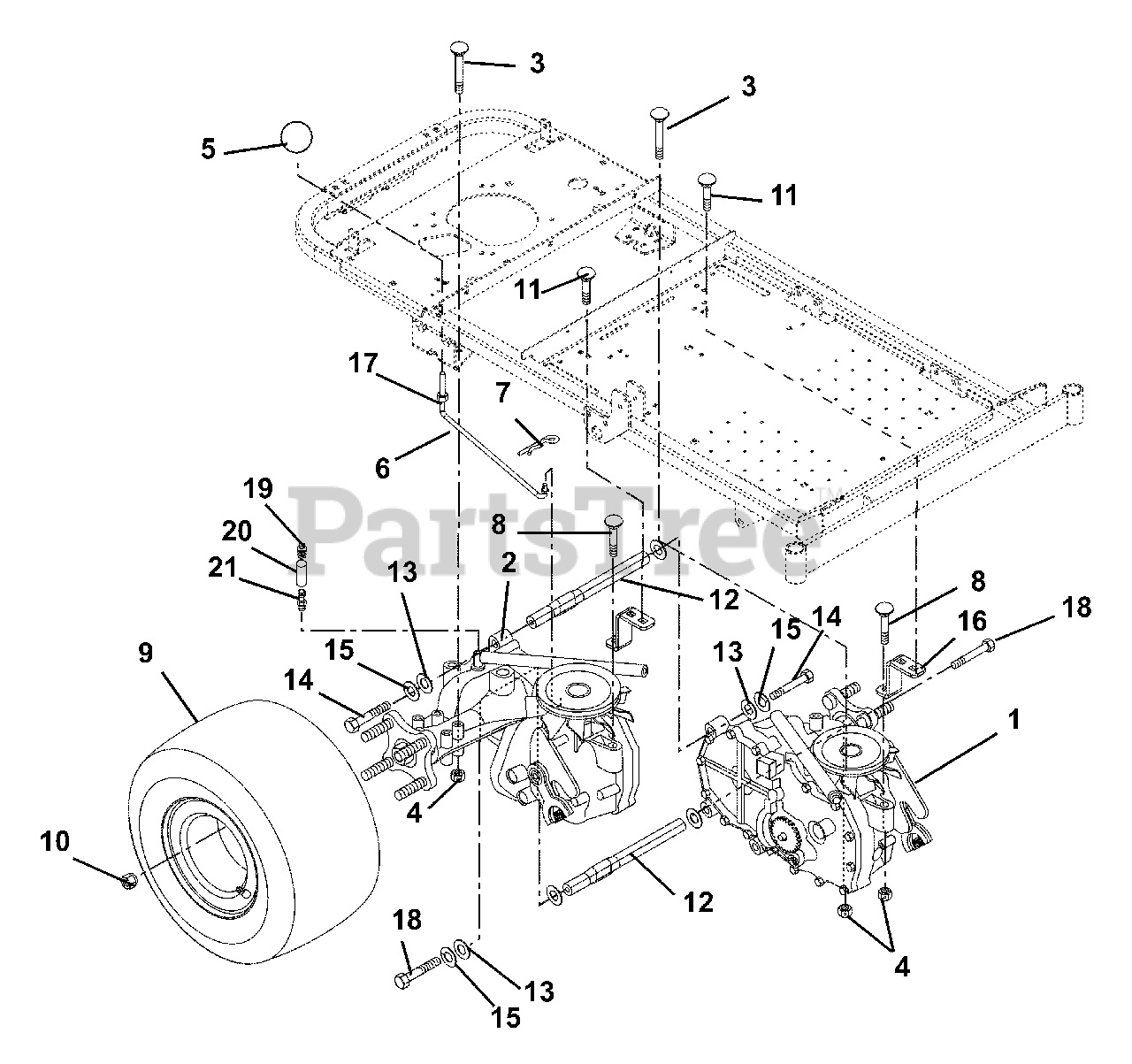

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 00177300

EZT,LH TRANSAXLE-HYDROGEAR

$1034.99

$

Usually ships in 4-12 days

0

2

Gravely 00177200

EZT,RH TRANSAXLE-HYDROGEAR

$1034.99

$

Usually ships in 4-12 days

0

3

Gravely 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$3.49

$

In Stock, Qty 12

0

4

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 07520500

KNOB,

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 00164000

ROD, DUMP EZT

$

$

Not available

7

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

8

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

9

Gravely 01588700

ASSY-TIRE 8.5X18 2PLY
(Superseded to 07100234)

$139.99

$

Usually ships in 4-12 days

0

10

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 00187100

ROD

$63.99

$

In Stock, Qty 5

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 00183551

TORQUE STRAP

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

18

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

19

Gravely 07026400

CAP-VENT .50

$17.99

$

In Stock, only 2 left!

0

20

Gravely 01543100

HOSE - VENT

$9.99

$

In Stock, only 2 left!

0

21

Gravely 07026300

FTG-STR .50 O-RING

$26.99

$

In Stock, only 2 left!

0
