915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above)

34" Zero-Turn Mower, 13hp Briggs & Stratton

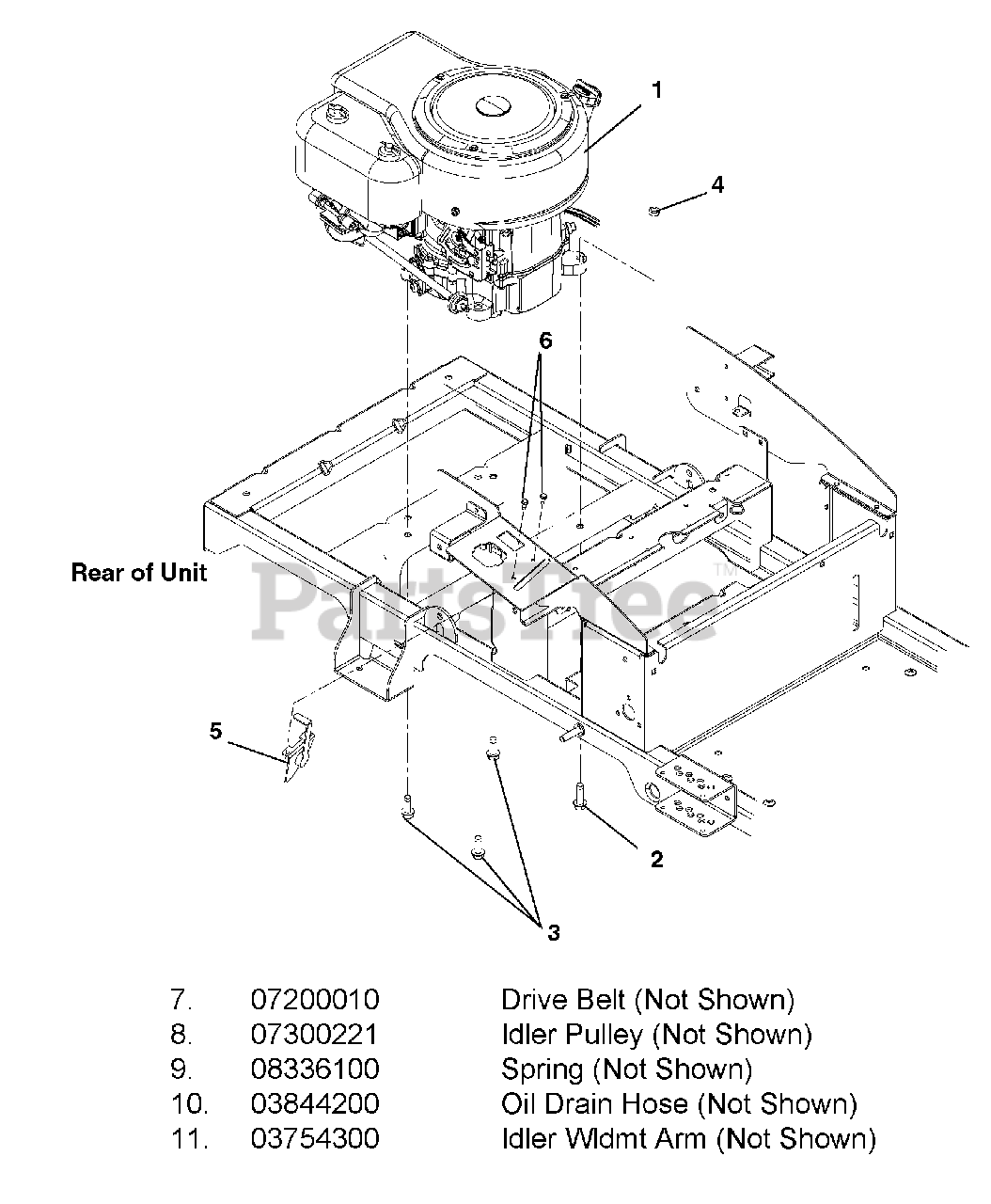

915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (15) > Engine

  • Title
08200433

1

Engine, 13.5 HP Briggs and Stratton IC

Part# 08200433

OEM Warranty Repair Part for Gravely

Not available

07414700

2

Screw, Tapping .38-16 x 1.25 Hex Washer Head

Part# 07414700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

07414100

3

Screw, Tapping .38-16 x 1.00 Hex Washer Head

Part# 07414100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06537200

4

Nut, Locking Jam .375-16

Part# 06537200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

00619600

5

Throttle/Choke Cable

Part# 00619600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.37

07415800

6

Screw, Tapping 10-24 x .50 Hex Washer Head

Part# 07415800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

07200010

7

Drive Belt (Not Shown)

Part# 07200010

Note: (Not Shown)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $29.29

07300221

8

Idler Pulley (Not Shown)

Part# 07300221

Note: (Not Shown)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

08336100

9

Spring (Not Shown)

Part# 08336100 (Superseded to 08300512)

Note: (Not Shown)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

03844200

10

Oil Drain Hose (Not Shown)

Part# 03844200

Note: (Not Shown)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

03754300

11

Idler Wldmt Arm (Not Shown)

Part# 03754300

Note: (Not Shown)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $26.78
