915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above) Frame, Hood, Fenders, Casters And Tires Parts Diagram

34" Zero-Turn Mower, 13hp Briggs & Stratton

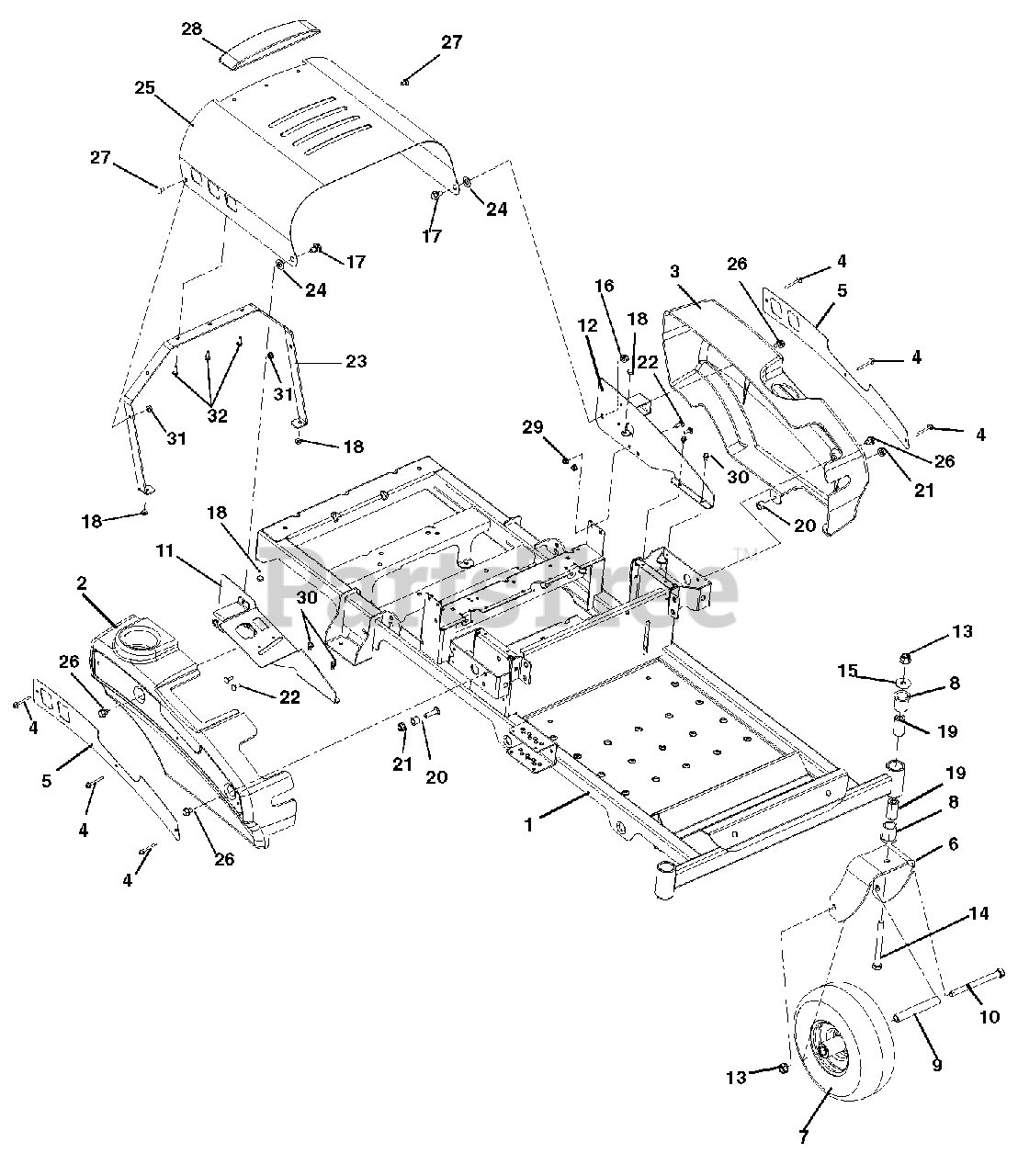

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 03752551

WMT, FRAME BBZ
(Superseded to 51525800)

$

$

Not available

2

Gravely 03768600

FENDER, RH

$81.99

$

Usually ships in 4-12 days

0

3

Gravely 03768700

FENDER, LH
(Superseded to 51534400)

$98.99

$

Usually ships in 4-12 days

0

4

Gravely 06800106

RIVET, NYLON (.219 HOLE .25TH)
(Superseded to 07500125)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03769053

PLATE, FENDER

$40.99

$

In Stock, only 2 left!

0

6

Gravely 03368551

CASTER FORK WELDMENT

$74.99

$

In Stock, only 2 left!

0

7

Gravely 07100801

TIRE/WHL ASM, FRONT

$75.99

$

In Stock, Qty 5

0

8

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 03768851

WMT, FENDER MOUNT RH

$

$

Not available

12

Gravely 03768951

WMT, FENDER MOUNT LH

$

$

Not available

13

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, only 3 left!

0

18

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

19

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$7.99

$

In Stock, Qty 20+

0

20

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

21

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 03766553

STRAP, HOOD

$

$

Not available

24

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

25

Gravely 03766453

HOOD, BBZ
(Superseded to 51520200)

$

$

Not available

26

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

28

Gravely 02970500

TRIM-ZTXL HOOD GRAVELY

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 13

0

32

Gravely 07400035

SCREW,PHLPS PAN HEAD 12-11X5/8

$3.99

$

Usually ships in 4-12 days

0
