915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above) Frame, Hood, Fenders, Casters And Tires Parts Diagram

34" Zero-Turn Mower, 13hp Briggs & Stratton

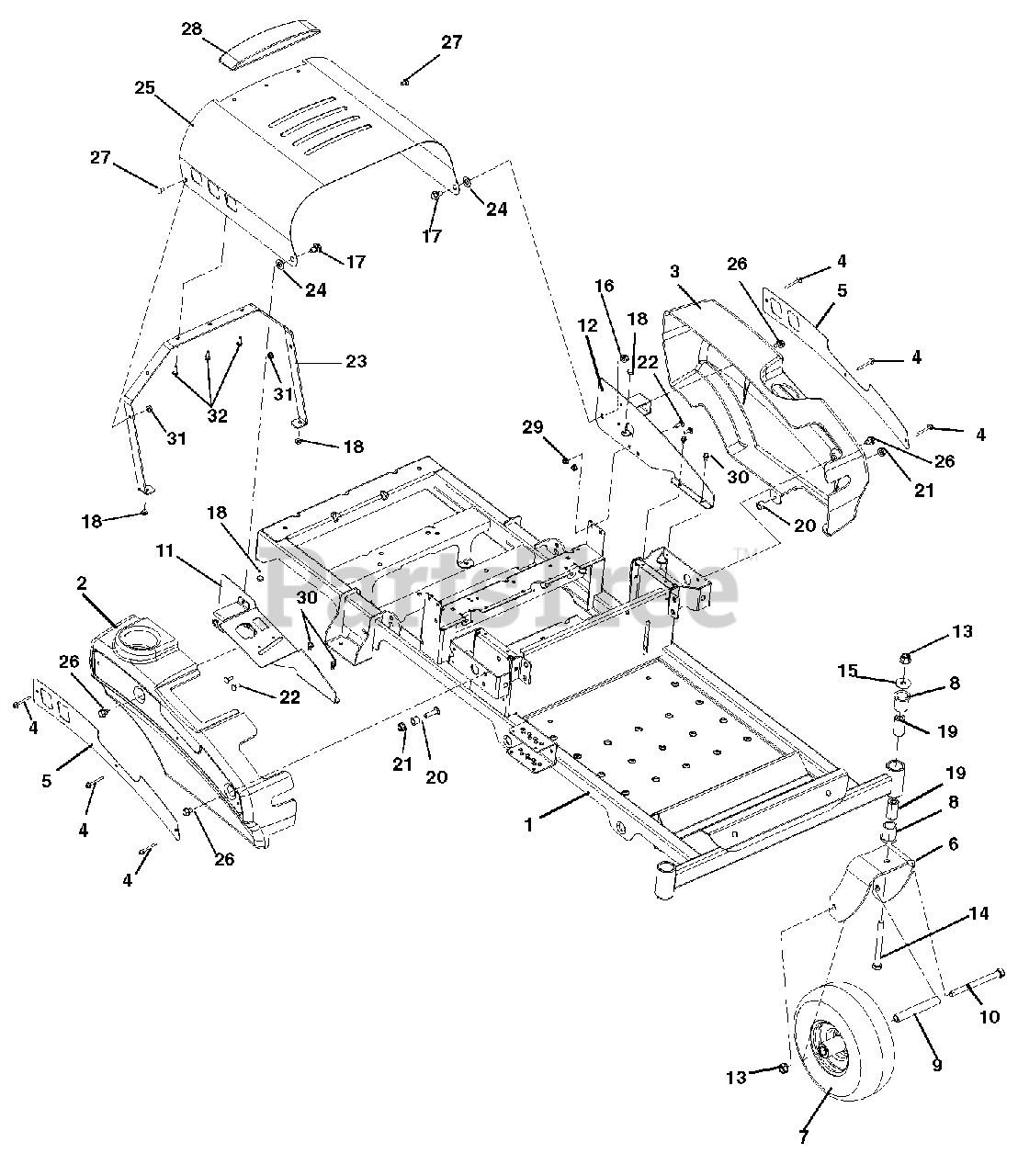

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 03752551

Weldment, Frame
(Superseded to 51525800)

$739.99

$

Usually ships in 4-12 days

0

2

Gravely 03768600

Fender, Right Hand

$79.99

$

In Stock, only 1 left!

0

3

Gravely 03768700

Fender, Left Hand
(Superseded to 51534400)

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 06800106

Rivet, Nylon
(Superseded to 07500125)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 03769053

Plate, Fender

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 03368551

Fork, Caster

$72.99

$

In Stock, only 2 left!

0

7

Gravely 07100801

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0

$68.99

$

In Stock, Qty 12

0

8

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, Qty 16

0

11

Gravely 03768851

Weldment, Fender Mount Right Hand

$

$

Not available

12

Gravely 03768951

Weldment, Fender Mount Left Hand

$

$

Not available

13

Gravely 06543600

Nut, Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 14

0

16

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

18

Gravely 07503100

Bumper Grommet .125 x .250 Diameter

$3.49

$

In Stock, only 2 left!

0

19

Gravely 00363100

Spacer, Caster

$5.99

$

In Stock, Qty 9

0

20

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, Qty 13

0

21

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 03766553

Hood Brace

$

$

Not available

24

Gravely 06443300

Washer, Flat-Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 19

0

25

Gravely 03766453

Hood
(Superseded to 51520200)

$

$

Not available

26

Gravely 07412900

Screw, Tapping .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

27

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

28

Gravely 02970500

Trim, Hood

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

30

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

32

Gravely 07400035

Screw, Phillips Pan Head 12-11X5/8

$3.49

$

Usually ships in 4-12 days

0
