915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above)

34" Zero-Turn Mower, 13hp Briggs & Stratton

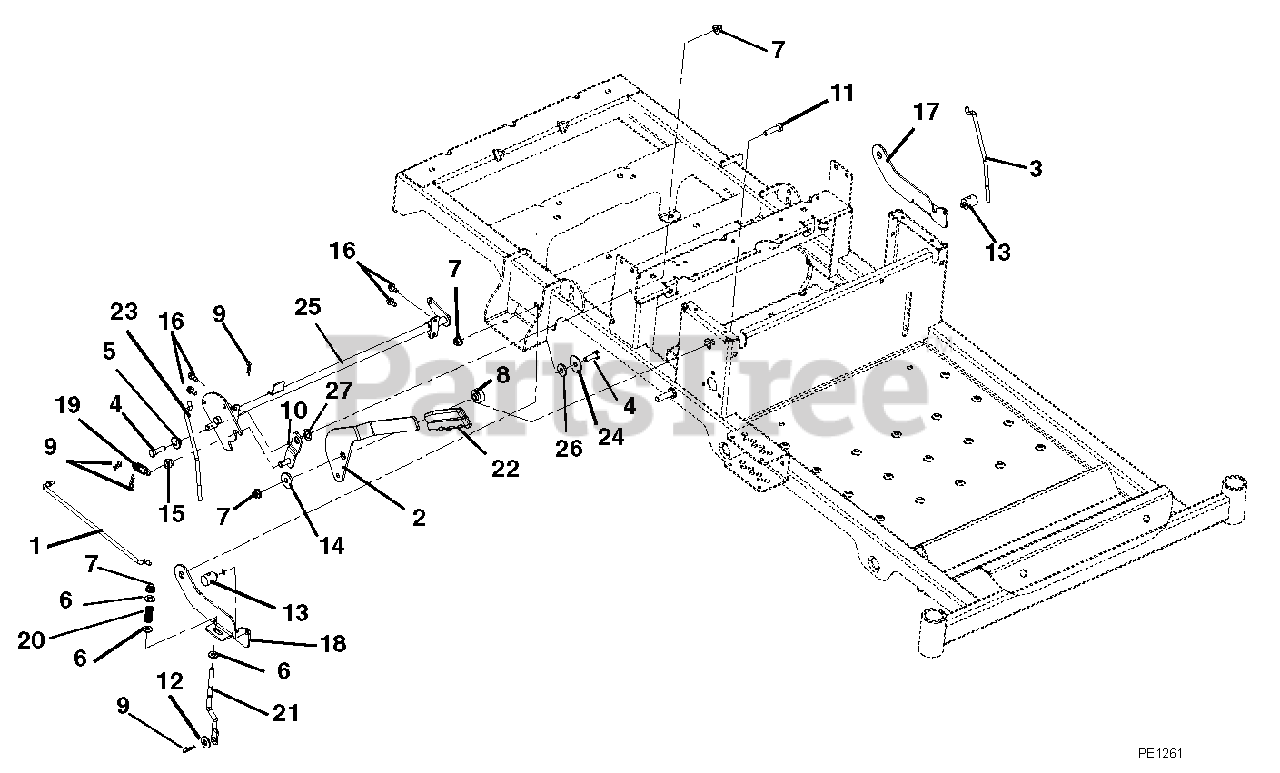

915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (15) > Parking Brake

  • Title
03759400

1

Link, Brake Handle

Part# 03759400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.14

03759100

2

Handle, Parking Brake

Part# 03759100

OEM Warranty Repair Part for Gravely

Not available

03823300

3

Link, Neutral LH

Part# 03823300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $21.24

05946900

4

Bolt, Hex .31-18 x 1.00 Grade 5

Part# 05946900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05514800

5

Bushing, Flange .312 x .500 x .344 x .880

Part# 05514800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06437200

6

Washer, Flat-Steel .344 x .688 x .065

Part# 06437200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06545400

7

Nut, Flange Nyloc 5/16-18

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

03769400

8

Spacer, Brake Handle

Part# 03769400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

06713500

9

Pin, Hair Internal .08 x .18 x 1.18

Part# 06713500

OEM Warranty Repair Part for Gravely

Not available

03759200

10

Weldment, Detent Arm

Part# 03759200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $26.78

05947500

11

Bolt, Hex .31-18 x 1.25 Grade 5

Part# 05947500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06435700

12

Washer, Flat Steel .38 x .875 x .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

03764800

13

Trunnion, 1/4-20

Part# 03764800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $9.34

06446300

14

Washer, Flat Steel .344 x 1.125 x .135

Part# 06446300

OEM Warranty Repair Part for Gravely

Not available

03764900

15

Roller

Part# 03764900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

07412000

16

Screw, Tapping .25-20 x .50 Hex Washer Head

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03759000

17

Latch, LH Neutral

Part# 03759000 (Superseded to 03759067)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

03758900

18

Latch, RH Neutral

Part# 03758900 (Superseded to 03758967)

OEM Warranty Repair Part for Gravely

Not available

08326700

19

Spring, Tension .072 x .565 x 1.87

Part# 08326700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

08300028

20

Spring, Compression

Part# 08300028

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

03759600

21

Link, Brake Cog

Part# 03759600 (Superseded to 03759667)

OEM Warranty Repair Part for Gravely

Not available

03826900

22

Grip, Park Brake

Part# 03826900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.52

03759500

23

Link, Neutral RH

Part# 03759500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

06446900

24

Washer, Flat Steel .347 x 1.254 x .048

Part# 06446900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03761100

25

Weldment, Brake Shaft

Part# 03761100 (Superseded to 03761167)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.60

01305900

26

Bushing, Flange .325 x .499 x .26 x .88

Part# 01305900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.47

06441400

27

Washer, Flat-Steel .754 x 1.125 x .062

Part# 06441400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85
