915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above)

34" Zero-Turn Mower, 13hp Briggs & Stratton

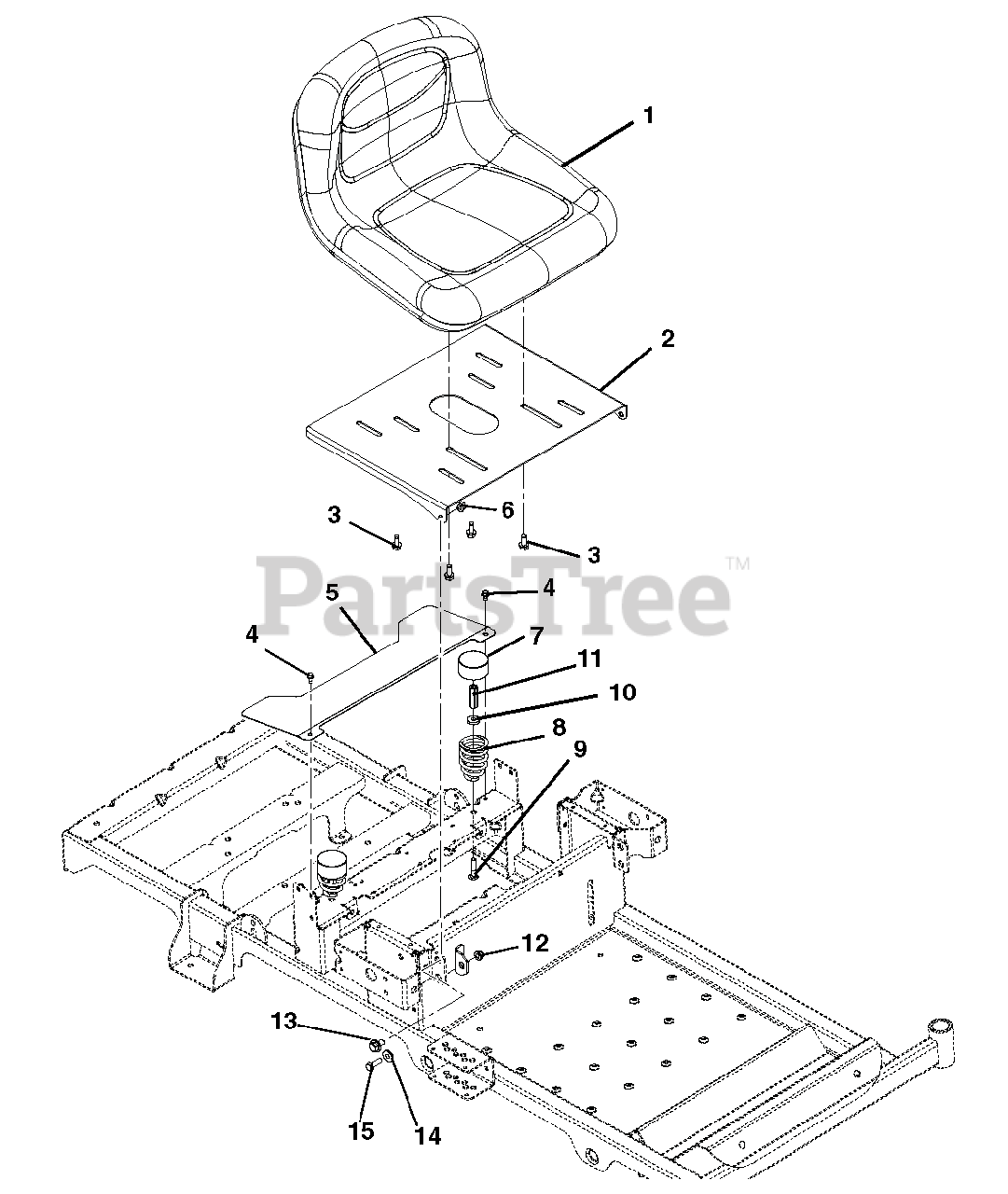

915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (15) > Seat And Seat Support

  • Title
03795800

1

Seat, 13 in Grey

Part# 03795800

OEM Warranty Repair Part for Gravely

Not available

03782051

2

Seat Plate

Part# 03782051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $96.65

05900033

3

Bolt, Hex 5/16-18 x 3/4

Part# 05900033

OEM Warranty Repair Part for Gravely

Not available

07412000

4

Screw, Tapping .25-20 x .50 Hex Washer Head Thread

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03753300

5

Guard, Fan

Part# 03753300

OEM Warranty Repair Part for Gravely

Not available

06542000

6

Nut, .38-16 Nyloc Flange

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

00337700

7

Hub Cap

Part# 00337700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

08300021

8

Spring, Seat

Part# 08300021

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

06212100

9

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5

Part# 06212100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06439100

10

Washer-Flat-Steel .328 x .87 x .179

Part# 06439100

OEM Warranty Repair Part for Gravely

Not available

06500015

11

Nut, Coupling 5/16-18 x 1 .75

Part# 06500015

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06545400

12

Nut, 5/16-18 Flange Nyloc

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

07056700

13

Bolt, Shoulder .375-16 x .135

Part# 07056700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

01305900

14

Bushing, Flange .325 x .499 x .26 x .88

Part# 01305900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.47

05946900

15

Bolt, Hex .31-18 x 1.00 Grade 5

Part# 05946900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40
