915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above)

34" Zero-Turn Mower, 13hp Briggs & Stratton

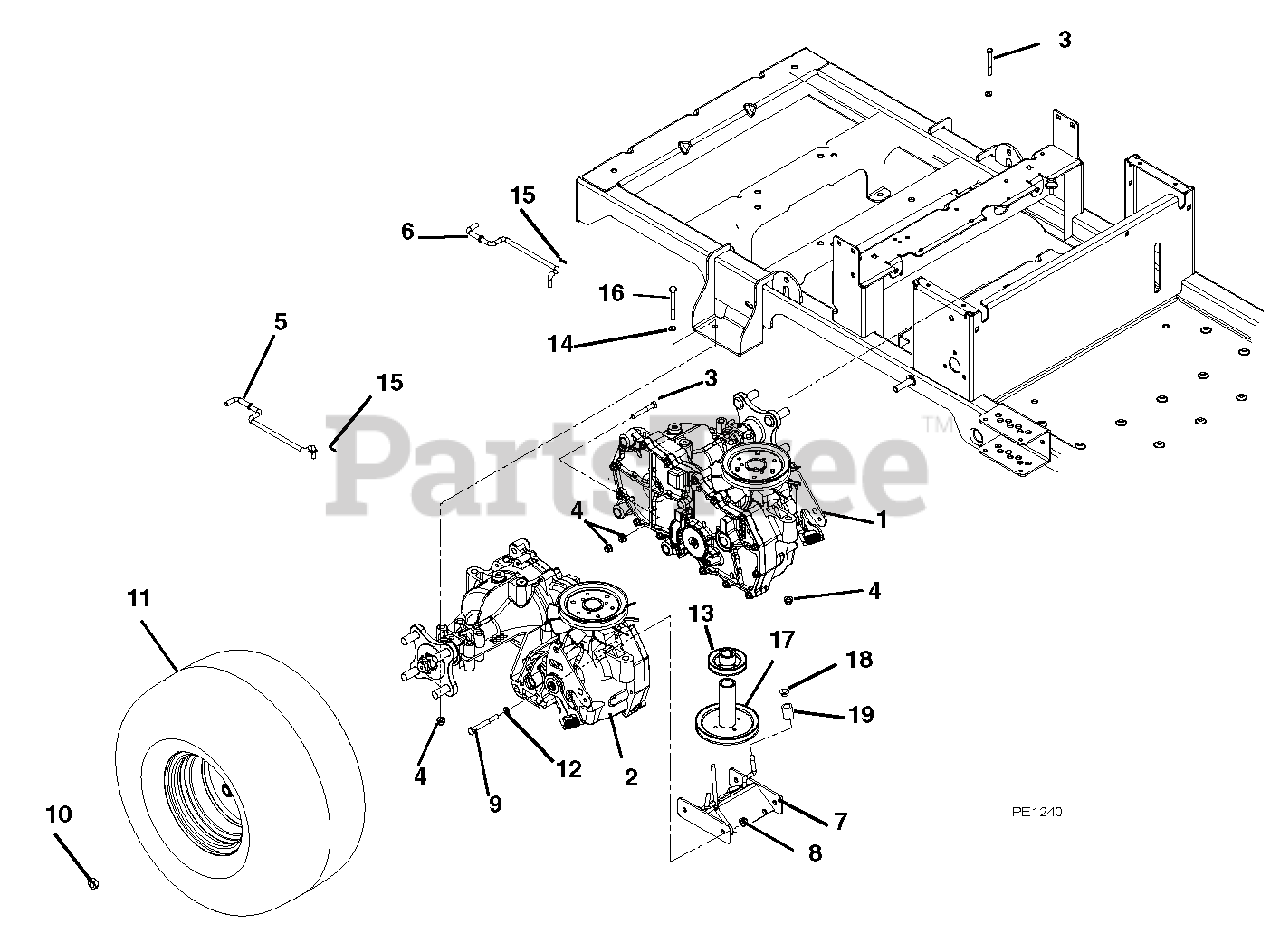

915130 (ZT 1334) - Gravely 34" Zero-Turn Mower, 13hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (15) > Transaxle, Dump Valves And Rear Wheels

  • Title
03762200

1

Transaxle, EZT Short Left Hand

Part# 03762200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $845.26

03762300

2

Transaxle, EZT Short Right Hand

Part# 03762300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $846.71

05963700

3

Bolt, Hex .31-18 x 2.25 Grade 5

Part# 05963700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06545400

4

Nut 5/16-18 Flange Nyloc

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

03762700

5

Dump Valve (RH)

Part# 03762700

Note: (RH)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.24

03762800

6

Dump Valve (LH)

Part# 03762800

Note: (LH)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

03819551

7

Weldment, Transaxle Brace

Part# 03819551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.01

06545500

8

Nut, Nyloc Flange .38-16

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05958400

9

Bolt-Hex .38-16 x 2.50 Grade 5

Part# 05958400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06517600

10

Nut, Wheel .50-20 13/16

Part# 06517600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07100738

11

Tire/Wheel Assembly, 18 x 6.5-8 Offset

Part# 07100738

OEM Warranty Repair Part for Gravely

Not available

06444000

12

Washer, Flat Steel .406 x 1.00 x .188

Part# 06444000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

03770800

13

Weldment, Sheave Ground Drive

Part# 03770800 (Superseded to 07332700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

06435700

14

Washer-Flat-Steel .38 x .875 x .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06701900

15

Pin-Hair-Internal .06 x .18 x .77

Part# 06701900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05960600

16

Bolt, Hex .31-18 x 2.75

Part# 05960600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

03766700

17

Weldment, Sheave PTO Drive

Part# 03766700

OEM Warranty Repair Part for Gravely

Not available

06514900

18

Nut-Push .312

Part# 06514900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

03877000

19

Spacer, .75 x .335 x .75

Part# 03877000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $16.32
