915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Belt Covers And Blades Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

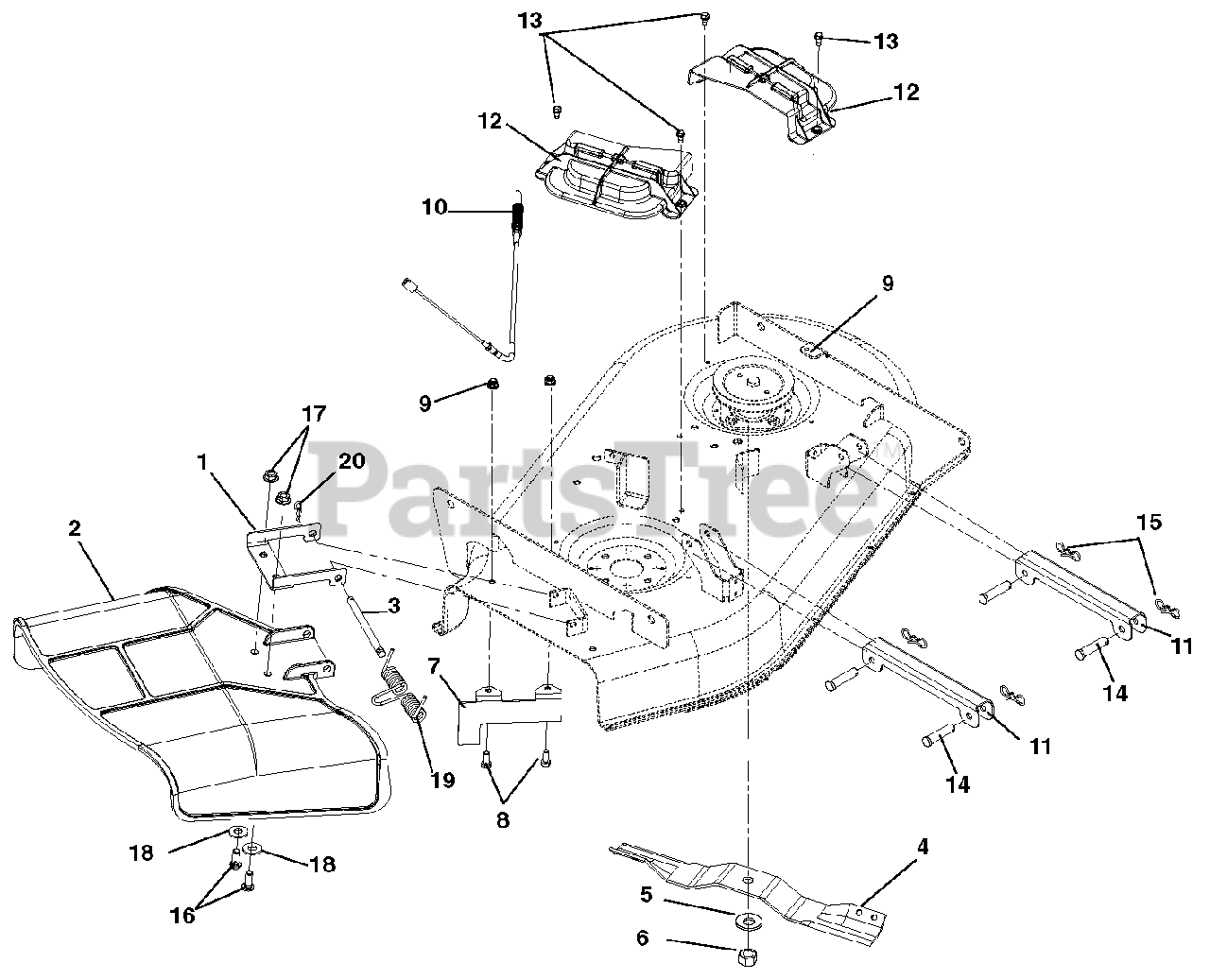

Belt Covers And Blades Parts Diagram

  • Title

1

Gravely 00662653

BRKT, CHUTE REINFORCEMENT

$

$

Not available

2

Gravely 03994300

CHUTE, SIDE DISCHARGE

$58.99

$

In Stock, Qty 6

0

3

Gravely 06800002

PIN, 5/16 X 3.88"

$9.99

$

In Stock, only 2 left!

0

4

Gravely 03746500

BLADE-17.2" X .156
(Superseded to 03971900)

Note: (SN - 000101 thru 011621)

$23.99

$

In Stock, Qty 20+

0

Gravely 03971900

BLADE, MOWER 17.35

Note: (SN - 011622 and up)

$23.99

$

In Stock, Qty 20+

0

5

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

6

Gravely 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 03779253

BRKT-BAFFLE, DISCHARGE 34"

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06900338

CABLE-PTO

$74.99

$

Usually ships in 4-12 days

0

11

Gravely 03764053

BRKT-STABILIZER LINK

$46.99

$

Usually ships in 4-12 days

0

12

Gravely 03796000

COVER-BELT, MOLDED

$

$

Not available

13

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06800102

PIN-CLEV .375 X 2.00 YWZC

$3.99

$

In Stock, Qty 12

0

15

Gravely 06700206

PIN, BOW TIE LOCKING
(Superseded to 06700225)

$4.99

$

In Stock, Qty 8

0

16

Gravely 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$4.99

$

In Stock, Qty 13

0

17

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 01258100

SPRING, TORSION

$9.99

$

In Stock, Qty 10

0

20

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0
