915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Electrical System Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

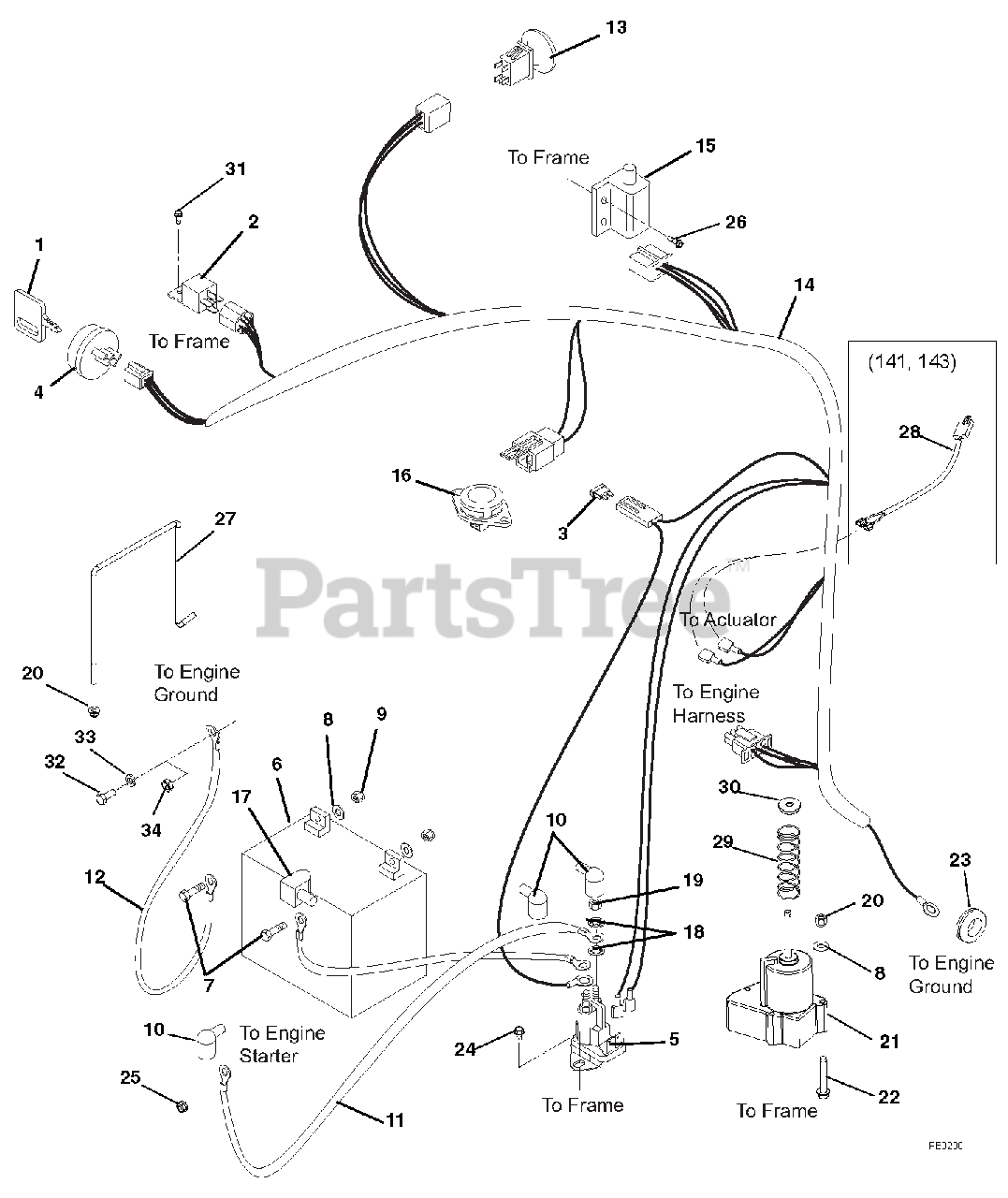

Electrical System Parts Diagram

  • Title

1

Gravely 03927000

KEY, 03290500 KEYSWITCH

$10.99

$

In Stock, Qty 12

0

2

Gravely 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

4

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 20+

0

4

Gravely 04986400

KEY, IGNITION

Note: Not Shown

$9.49

$

In Stock, Qty 20+

0

5

Gravely 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

6

Battery, Sealed Maintenance free U1-250 (Purchase replacement locally)

Note: (Purchase replacement locally)

$

$

Not available

7

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

8

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (140)

$0.99

$

In Stock, Qty 20+

0

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (142, 144)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0

11

Gravely 03777100

CABLE, POS. BAT. 14.25"
(Superseded to 04249800)

$29.99

$

Usually ships in 4-12 days

0

12

Gravely 03777000

CABLE, GROUND 26.00"
(Superseded to 04249900)

$40.99

$

In Stock, only 1 left!

0

13

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

14

Gravely 03773900

HARNESS-WIRING, BBZ

$127.99

$

In Stock, only 1 left!

0

15

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

16

Gravely 03654200

SWITCH- SEAT

Note: (N.O.)

$15.99

$

In Stock, Qty 7

0

17

Gravely 07505700

INSULATOR

$10.99

$

In Stock, only 2 left!

0

18

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

19

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

20

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

Note: (140)

$1.99

$

In Stock, Qty 20+

0

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

Note: (142, 144)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 03773800

ACTUATOR-NORAM PAC 2"

Note: (140)

$246.99

$

Usually ships in 4-12 days

0

22

Gravely 05961600

BLT-HEX .25-20X2.50 GR5 YWZC

Note: (140)

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

26

Gravely 07400038

SCR- 12-14X.75 HX W/HD TEK ZC

$

$

Not available

27

Gravely 03781900

HOLD DOWN, BATTERY

$27.99

$

Usually ships in 4-12 days

0

28

Gravely 03972600

HARNESS, CLUTCH

Note: (142, 144)

$23.99

$

In Stock, Qty 9

0

29

Gravely 08300504

SPRING, COMPRESSION

Note: (140)

$6.49

$

Usually ships in 4-12 days

0

30

Gravely 03896500

RETAINER, COMP SPRING

Note: (140)

$35.99

$

In Stock, only 1 left!

0

31

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

32

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

Note: (144)

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (144)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

Note: (140, 142)

$1.49

$

In Stock, Qty 20+

0
