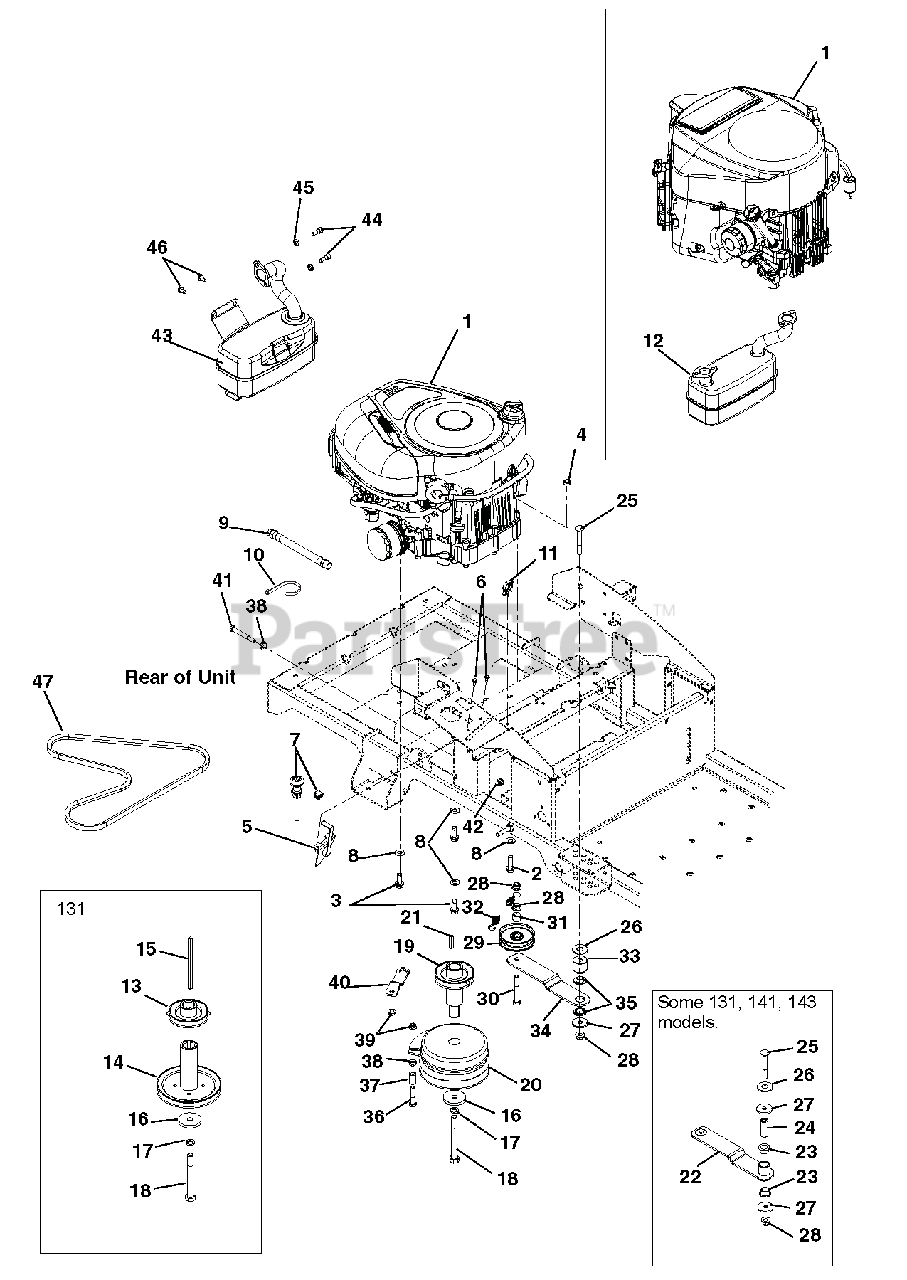

915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Engine Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

Engine Parts Diagram

  • Title

1

Gravely 08200522

ENGINE, 16.5 HP B&S (3600RPM)

Note: (140)

$

$

Not available

Gravely 08200317

ENGINE, 18HP INTEK SINGLE

Note: (142)

$

$

Not available

Gravely 08200520

FR651-22 KAWASAKI TWIN ENGINE

Note: (144)

$

$

Not available

2

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

Note: (140, 142)

$3.49

$

In Stock, Qty 20+

0

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

Note: (144)

$2.99

$

In Stock, Qty 19

0

3

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (140, 142)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

Note: (140, 142)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00619600

THROTTLE/CHOKE CABLE

Note: (140, 142)

$65.99

$

In Stock, Qty 6

0

Gravely 06900416

CABLE, THROTTLE

Note: (144)

$36.99

$

In Stock, only 1 left!

0

6

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 07500123

PLUG, 5/8" SQ BLACK (14-20GA)

Note: (14-20GA) (140, 142)

$3.99

$

Usually ships in 4-12 days

0

Gravely 06900408

CABLE, CHOKE (SNAP IN)

Note: (SNAP IN) (144)

$41.99

$

In Stock, only 2 left!

0

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (144)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03844200

OIL DRAIN HOSE

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 04003800

TIE WRAP

$

$

Not available

11

Gravely 00390100

WIRE CLIP

Note: (FOR .25" HOLE)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 03946900

MUFFLER, TWIN
(Superseded to 04749700)

Note: (144)

$55.99

$

In Stock, Qty 10

0

13

Gravely 03770800

WMT-SHEAVE, GROUND DRIVE
(Superseded to 07332700)

$85.99

$

Usually ships in 4-12 days

0

14

Gravely 03766751

SHEAVE, PTO DRIVE
(Superseded to 07332651)

$105.99

$

Usually ships in 4-12 days

0

15

Gravely 06600212

KEY-STR .25X.25X5.50

$

$

Not available

16

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

17

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, Qty 11

0

19

Gravely 03992000

WMT-PTO EXTENSION W/SHEAVE
(Superseded to 07333000)

Note: (142, 144)

$209.99

$

Usually ships in 4-12 days

0

20

Gravely 03972700

CLUTCH, 105 FT*LB MONO POLE

Note: (142, 144)

$263.99

$

Usually ships in 4-12 days

0

21

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

Note: (142, 144)

$3.99

$

In Stock, Qty 12

0

22

Gravely 03754300

WMT, IDLER ARM

Note: (140, 144)

$41.99

$

Usually ships in 4-12 days

0

23

Gravely 05500907

BSHG-FLG, .625X.750X.500X1.00

Note: (140, 144)

$6.99

$

In Stock, Qty 20+

0

24

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$4.99

$

In Stock, Qty 20+

0

25

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0

26

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

28

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 07300221

PULLEY, ENGINE CLUTCH 03608

$

$

Not available

30

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

31

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

32

Gravely 08300512

SPRING, EXTENSION

$17.99

$

In Stock, Qty 20+

0

33

Gravely 03961100

SPACER, GROUND DRIVE IDLER

$6.49

$

In Stock, Qty 12

0

34

Gravely 03961000

IDLER ARM, GROUND DRIVE
(Superseded to 03961067)

$

$

Not available

35

Gravely 03960700

BUSHING, IDLER ARM

$6.99

$

In Stock, Qty 12

0

36

Gravely 05901418

SCR-CAP .31-18X1 3/4 S/HD YWZC

Note: (142, 144)

$2.99

$

In Stock, only 1 left!

0

37

Gravely 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

Note: (142, 144)

$2.99

$

In Stock, only 2 left!

0

38

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (142, 144)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 03956751

BRKT, CLUTCH STOP

Note: (142, 144)

$11.99

$

Usually ships in 4-12 days

0

41

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0

42

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

43

Gravely 04058800

MUFFLER, B&S 500 BBZ
(Superseded to 51521000)

Note: (142, 140)

$148.99

$

In Stock, only 1 left!

0

44

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (142, 140)

$2.99

$

In Stock, Qty 20+

0

45

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (142, 140)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (142, 140)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 07200010

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, Qty 20+

0
