915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Frame, Hood, Fenders, Casters And Tires Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

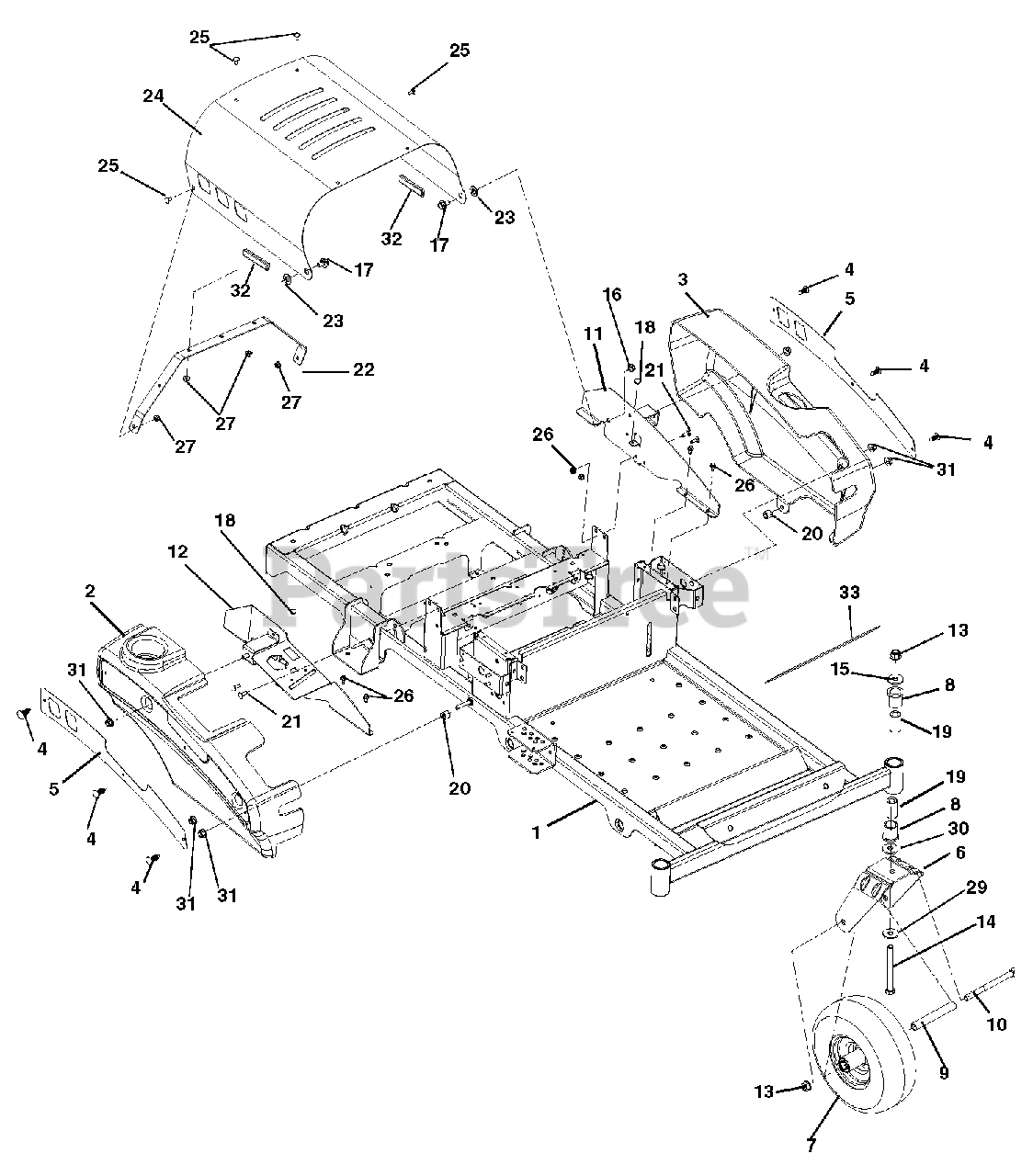

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 03896851

WMT, BBZ FRAME
(Superseded to 51525800)

$

$

Not available

2

Gravely 03768600

FENDER, RH

$81.99

$

Usually ships in 4-12 days

0

3

Gravely 03768700

FENDER, LH
(Superseded to 51534400)

$98.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03769053

PLATE, FENDER

$40.99

$

In Stock, only 2 left!

0

6

Gravely 03744751

CASTER FORK
(Superseded to 51522500)

$125.99

$

In Stock, only 1 left!

0

7

Gravely 07100801

TIRE/WHL ASM, FRONT

$75.99

$

In Stock, Qty 5

0

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 04039951

WMT-RH FENDER BRKT

$

$

Not available

12

Gravely 04040751

WMT-RH FENDER BRKT

$

$

Not available

13

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, only 3 left!

0

18

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

19

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$7.99

$

In Stock, Qty 20+

0

20

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

27

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 03909253

HOOD BRACE

$

$

Not available

23

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03872253

HOOD, BBZ

$

$

Not available

25

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

26

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

30

Gravely 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$3.99

$

In Stock, only 1 left!

0

31

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.99

$

In Stock, Qty 9

0

33

Gravely 03833800

GRIP, ADHESIVE (1" X 16" BLK)

Note: (1" x 16" BLK)

$3.99

$

Usually ships in 4-12 days

0
