915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Mower Deck, Belt, And Idlers Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

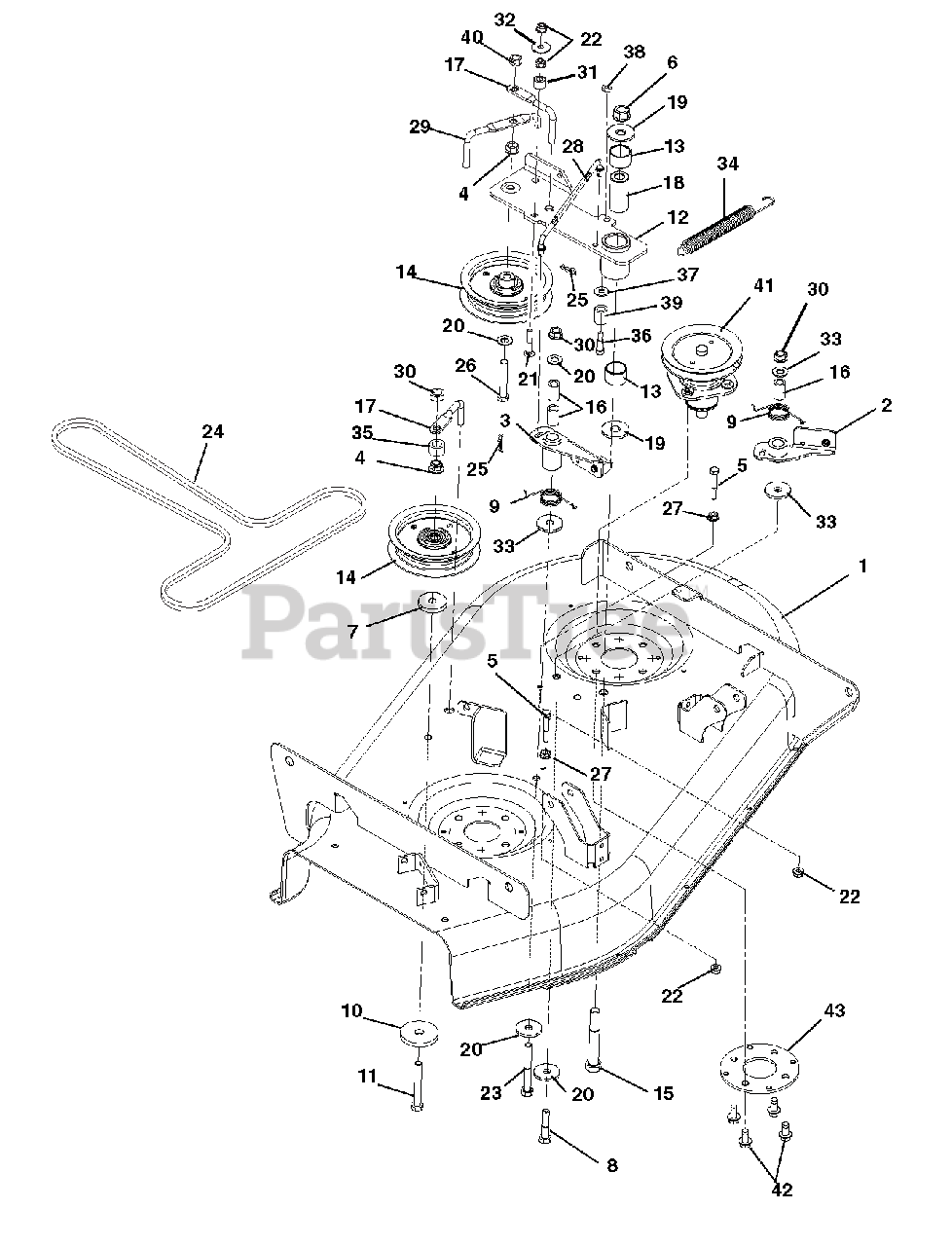

Mower Deck, Belt, And Idlers Parts Diagram

  • Title

1

Gravely 03886453

WMT, BBZ 34 DECK
(Superseded to 51520000)

$670.99

$

Usually ships in 4-12 days

0

2

Gravely 51519900

ASSY-BRAKE ARM LH

$60.99

$

In Stock, only 2 left!

0

3

Gravely 51519800

ASSY-BRAKE ARM RH

$70.99

$

In Stock, only 4 left!

0

4

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

6

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 08300502

SPRING, TORSION

$9.99

$

In Stock, Qty 6

0

10

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 03875600

WMT, IDLER ARM

$67.99

$

In Stock, only 2 left!

0

13

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

14

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

15

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

16

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$6.49

$

In Stock, Qty 5

0

17

Gravely 03828853

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.99

$

In Stock, only 2 left!

0

18

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

19

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06222300

BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.99

$

In Stock, Qty 5

0

22

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

24

Gravely 07200116

V-BELT, HA-WRAPPED

$66.99

$

In Stock, Qty 19

0

25

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

28

Gravely 03771700

WIREFORM-LINK, BRAKE

$30.99

$

Usually ships in 4-12 days

0

29

Gravely 03856853

WIREFORM, BELT FINGER
(Superseded to 03856800)

$7.49

$

In Stock, Qty 10

0

30

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 03242100

SPACER .325 X.625 X.455

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

33

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

34

Gravely 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$15.99

$

In Stock, Qty 9

0

35

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0

36

Gravely 05901340

BLT-SHSB .25-20X.312X.625

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 06442300

WSHR-FL-STL.250X.56X.049 YWZC

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 03877100

ROLLER-.50X.328X.625

$9.99

$

Usually ships in 4-12 days

0

40

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 51519500

KIT, DECK SPINDLE ASM (34/50)

Note: (34/50)

$159.99

$

In Stock, Qty 11

0

42

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

43

Gravely 03839053

PLATE-REINF, SPINDLE

$23.99

$

In Stock, Qty 8

0
