915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Mower Deck, Belt, And Idlers Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

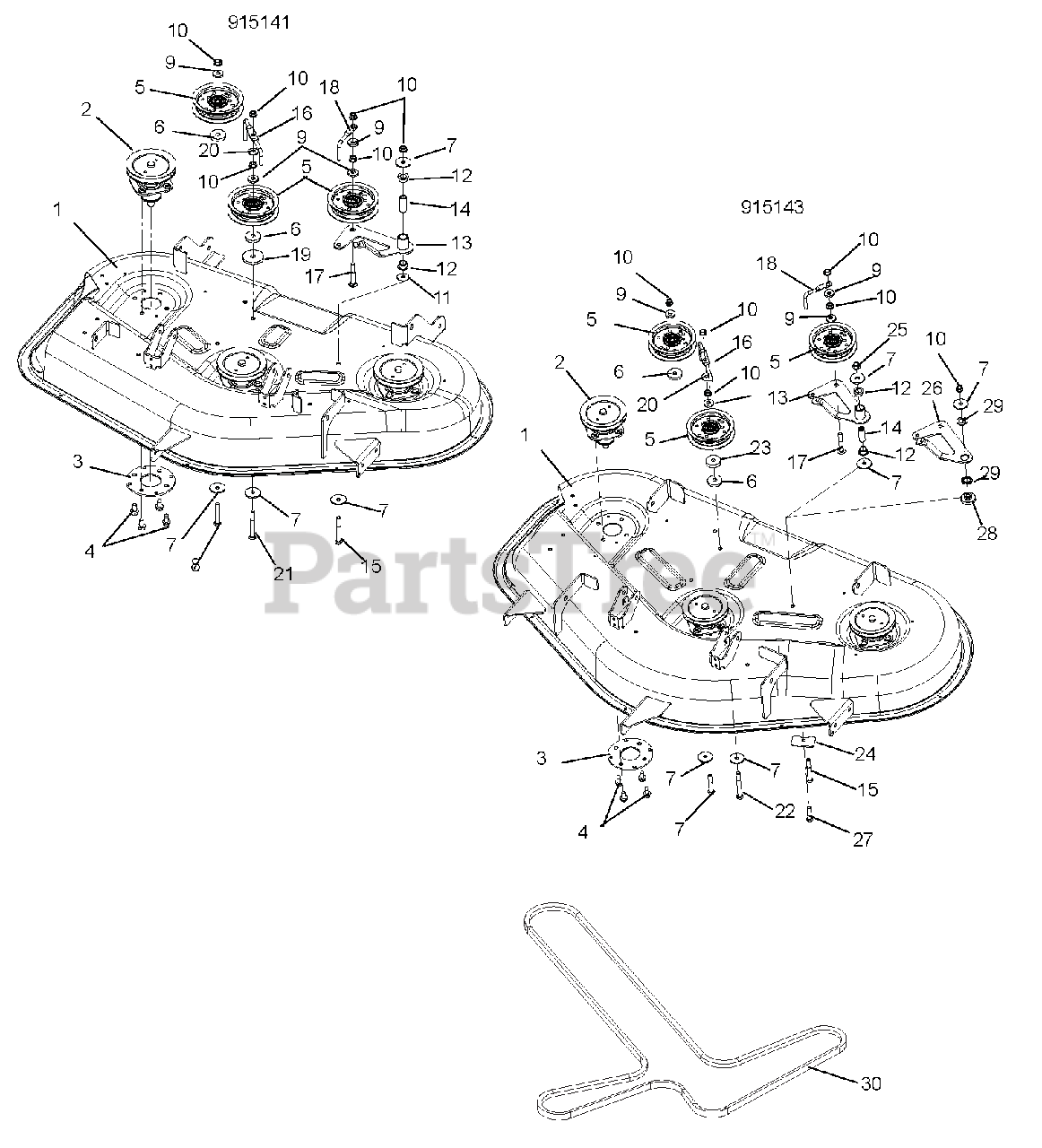

Mower Deck, Belt, And Idlers Parts Diagram

  • Title

1

Gravely 03967753

WMT, 42" ZT DECK
(Superseded to 51526200)

Note: (142)

$791.99

$

Usually ships in 4-12 days

0

Gravely 03945953

WMT, 50 DECK STAMPED
(Superseded to 51524600)

Note: (144)

$685.99

$

Usually ships in 4-12 days

0

2

Gravely 51520900

KIT, DECK SPINDLE ASM (42)

Note: (142)

$170.99

$

In Stock, Qty 9

0

Gravely 51519500

KIT, DECK SPINDLE ASM (34/50)

Note: (144)

$159.99

$

In Stock, Qty 11

0

3

Gravely 03839059

PLATE-REINF, SPINDLE

$25.99

$

In Stock, only 1 left!

0

4

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

6

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

12

Gravely 05500907

BSHG-FLG, .625X.750X.500X1.00

$6.99

$

In Stock, Qty 20+

0

13

Gravely 04072900

WMT, IDLER ARM

$64.99

$

Usually ships in 4-12 days

0

14

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$4.99

$

In Stock, Qty 20+

0

15

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 03974153

WIREFORM, BELT FINGER
(Superseded to 03974100)

$

$

Not available

17

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 03828853

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.99

$

In Stock, only 2 left!

0

19

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (142)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

Note: (142)

$2.99

$

In Stock, Qty 13

0

22

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

Note: (144)

$4.99

$

In Stock, Qty 20+

0

31

Gravely 08320300

SG-TENS .135X.98X6.0 WLD 62

$19.99

$

In Stock, Qty 20+

0

23

Gravely 01594000

SPACER, .39 X 1.50 X .380

Note: (144)

$3.99

$

In Stock, Qty 14

0

24

Gravely 04061053

PLATE-DECK REINF.

Note: (144)

$21.99

$

Usually ships in 4-12 days

0

25

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (144)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 03956000

IDLER ARM

Note: (144)

$

$

Not available

27

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: (144)

$1.99

$

In Stock, Qty 17

0

28

Gravely 03960600

SPACER, IDLER ARM
(Superseded to 05500907)

Note: (144)

$6.99

$

In Stock, Qty 20+

0

29

Gravely 03960700

BUSHING, IDLER ARM

Note: (144)

$6.99

$

In Stock, Qty 12

0

30

Gravely 07200523

V-BELT, 4L-WRAPPED

Note: (142)

$72.99

$

In Stock, Qty 20+

0

Gravely 07200524

V-BELT, 4L-WRAPPED

Note: (144)

$87.99

$

In Stock, Qty 15

0
