915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

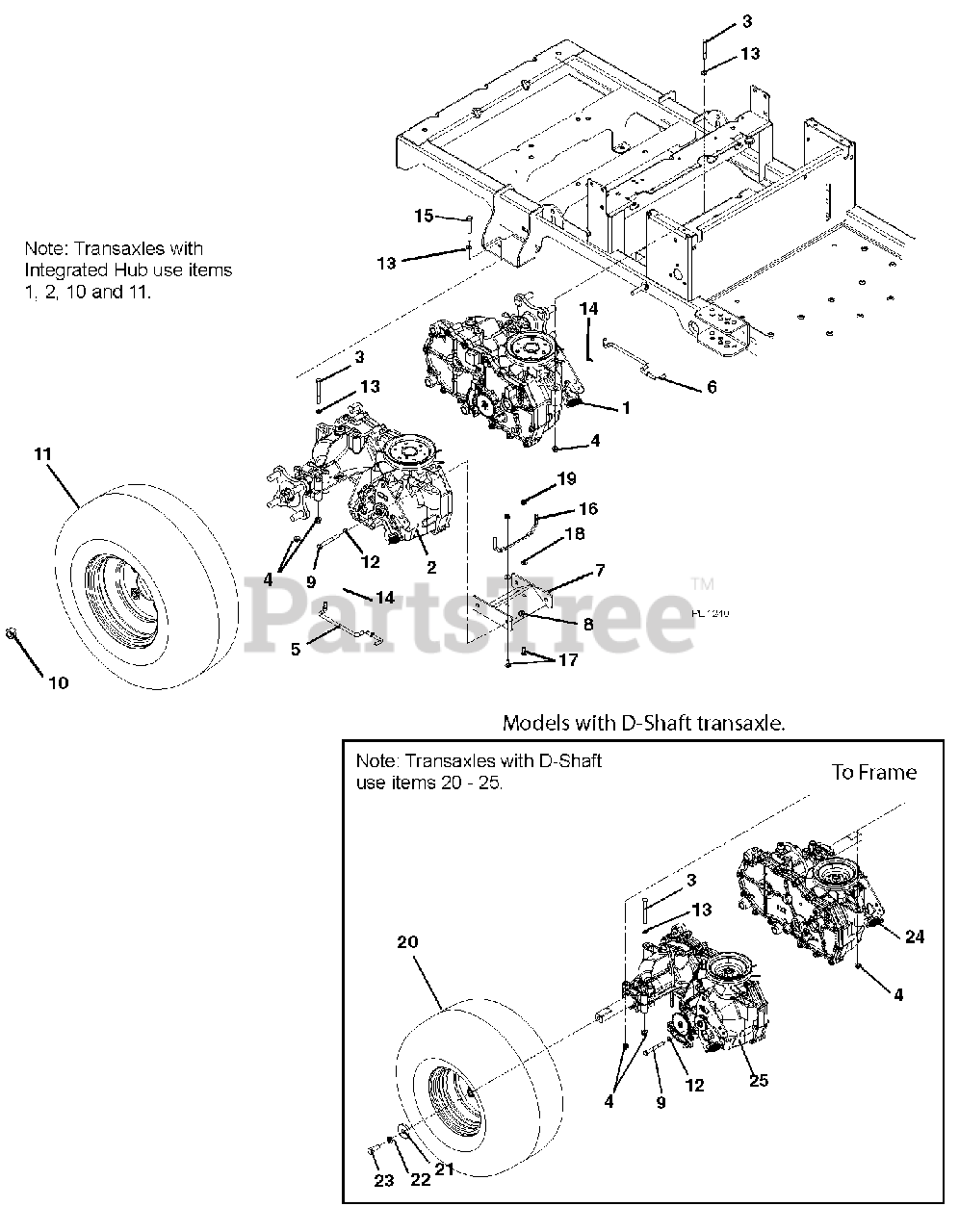

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 03762200

Transaxle, EZT Short Left Hand

$903.99

$

Usually ships in 4-12 days

0

2

Gravely 03762300

Transaxle, EZT Short Right Hand

$

$

Not available

3

Gravely 05963700

Bolt, Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 5

0

4

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

5

Gravely 03762700

Dump Valve, Right Hand

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 03762800

Dump Valve, Left Hand

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 03879551

Weldment, Transaxle Brace

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 06545500

Nut, Nyloc Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06517600

Nut, Wheel .50-20 13/16
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07100738

Tire/Wheel Assembly, 18 x 6.5-8 Offset

$

$

Not available

12

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

14

Gravely 06701900

Pin-Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

15

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 03879651

Belt Finger, Drive Sheave

$16.99

$

Usually ships in 4-12 days

0

17

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06437300

Washer, Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

19

Gravely 06500012

Nut, Locking Nylon Flange 1/4-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

20

Gravely 07100809

Tire, Assembly 18 x 6.5-8 2 Pulley D-Shaft (with D-Shaft Transaxle)

Note: (with D-Shaft Transaxle)

$113.99

$

In Stock, only 1 left!

0

21

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245 (with D-Shaft Transaxle)
(Superseded to 06401110)

Note: (with D-Shaft Transaxle)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06308800

Washer, Locking .38 x .094 Regular (with D-Shaft Transaxle)
(Superseded to 06300116)

Note: (with D-Shaft Transaxle)

$0.99

$

In Stock, Qty 19

0

23

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5 (with D-Shaft Transaxle)
(Superseded to 05901711)

Note: (with D-Shaft Transaxle)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 03872300

Transaxle, Left Hand EZT D-Shaft (with D-Shaft Transaxle)
(Superseded to 09160551)

Note: (with D-Shaft Transaxle)

$6.99

$

Usually ships in 4-12 days

0

25

Gravely 03872400

Transaxle, Right Hand EZT D-Shaft (with D-Shaft Transaxle)
(Superseded to 09160551)

Note: (with D-Shaft Transaxle)

$6.99

$

Usually ships in 4-12 days

0
