915140 (ZT 34) - Gravely 34" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

34" Zero-Turn Mower, Briggs & Stratton

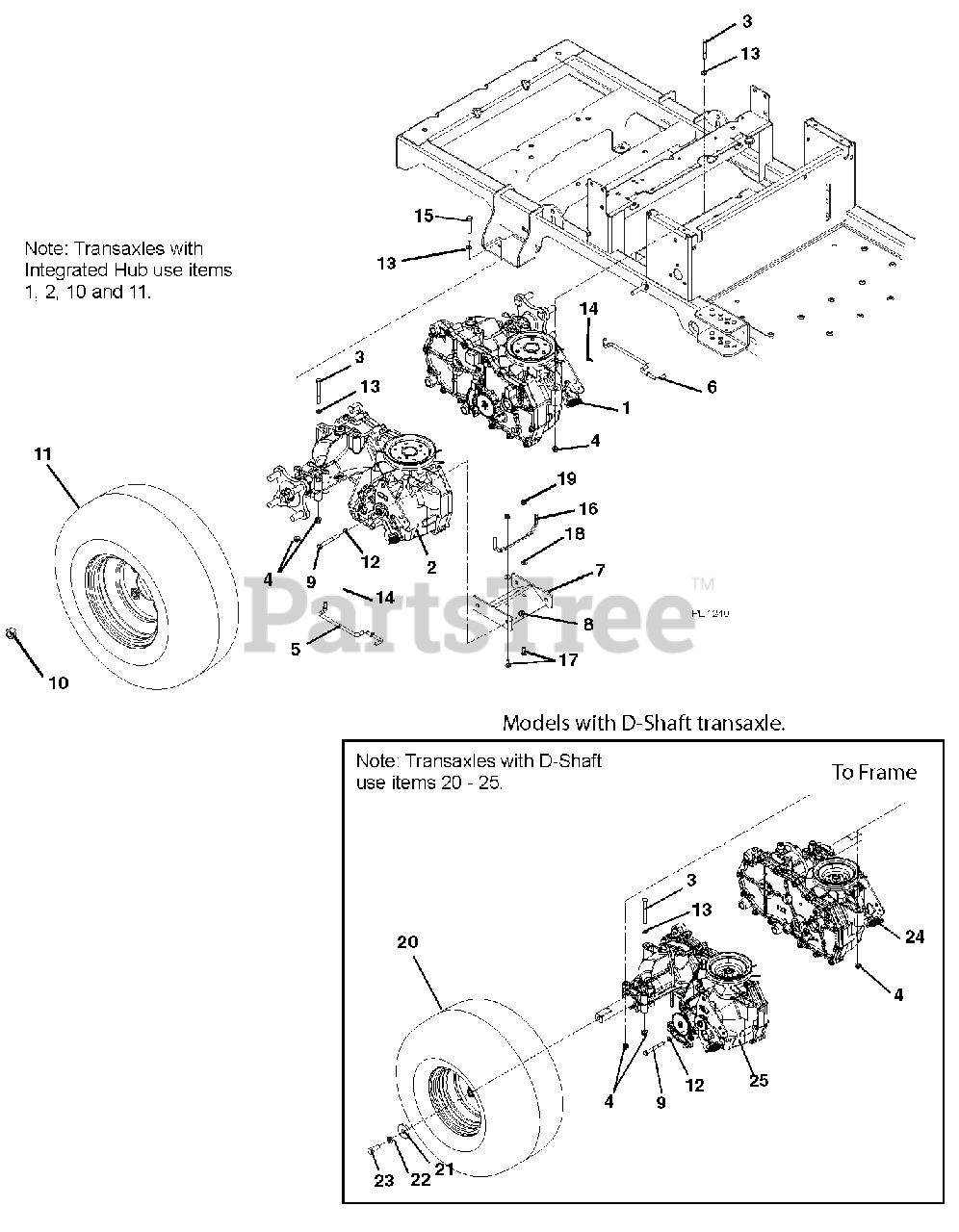

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 03762200

TRANSAXLE, LH EZT SHORT

$921.99

$

Usually ships in 4-12 days

0

2

Gravely 03762300

TRANSAXLE, RH EZT SHORT

$

$

Not available

3

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 12

0

4

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 03762700

DUMPVALVE, RH LCZ

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 03762800

DUMPVALVE, LH LCZ

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 03879551

WMT, TRANSMISSION BRACE

$52.99

$

Usually ships in 4-12 days

0

8

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07100738

TIRE-ASM 18X6.5-8 2 PLY OFFSET

$

$

Not available

12

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, only 4 left!

0

15

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0

16

Gravely 03879651

BELT FINGER, DRIVE SHEAVE

$17.99

$

In Stock, only 1 left!

0

17

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 07100809

TIRE-ASM 18X6.5-8 4 PLY DSHAFT

Note: (with D-Shaft Transaxle)

$136.99

$

Usually ships in 4-12 days

0

21

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

Note: (with D-Shaft Transaxle)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

Note: (with D-Shaft Transaxle)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (with D-Shaft Transaxle)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 03872300

TRANSAXLE, LH EZT D-SHAFT
(Superseded to 09160551)

Note: (with D-Shaft Transaxle)

$7.49

$

Usually ships in 4-12 days

0

25

Gravely 03872400

TRANSAXLE, RH EZT D-SHAFT
(Superseded to 09160551)

Note: (with D-Shaft Transaxle)

$7.49

$

Usually ships in 4-12 days

0
