915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 010000 - 019999) Mower Deck, Belts, Idlers and Blades Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

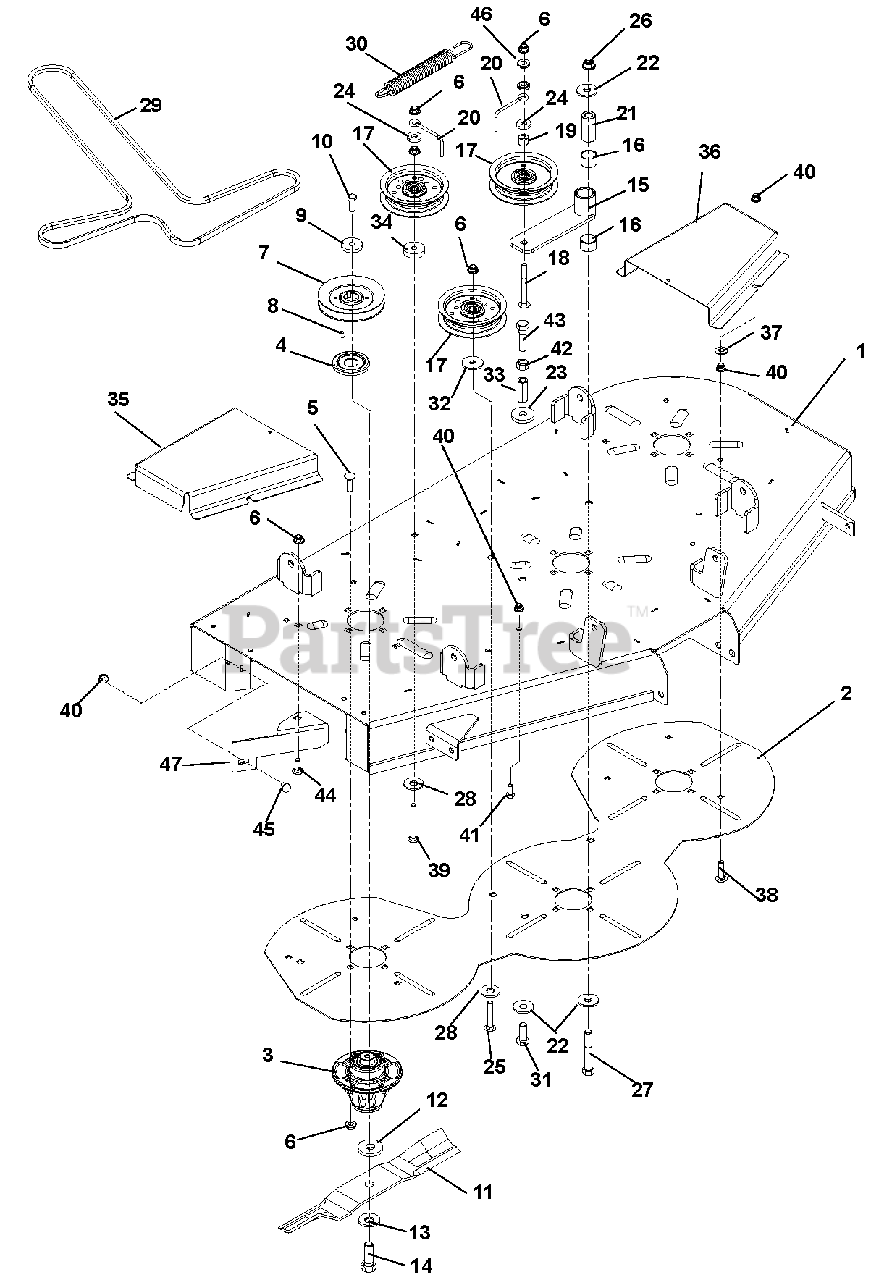

Mower Deck, Belts, Idlers and Blades Parts Diagram

  • Title

1

Gravely 51524300

Deck Replacement, 42 Deck (ZT XL) (915160)

Note: (ZT XL) (915160)

$790.99

$

Usually ships in 4-12 days

0

Gravely 51524400

Deck Replacement, 48 Deck (ZT XL) (915162)

Note: (ZT XL) (915162)

$1095.99

$

Usually ships in 4-12 days

0

Gravely 51524500

Deck Replacement, 54 Deck (ZT XL) (915164)

Note: (ZT XL) (915164)

$1053.99

$

Usually ships in 4-12 days

0

2

Gravely 03273053

Doubler Plate, 42 ZT XL (915160)

Note: (915160)

$

$

Not available

Gravely 02991053

Plate, 48" ZT XL Deck (915162)

Note: (915162)

$

$

Not available

Gravely 02989853

Doubler Plate, 54" Deck (915164)

Note: (915164)

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 61543800

Spindle Assembly
(Superseded to 51510000)

$233.99

$

In Stock, Qty 20+

0

4

Gravely 00587400

Dust Cap

$8.49

$

In Stock, Qty 8

0

5

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07300426

Sheave, Spindle 5.25 Dia.
(Superseded to 07340767)

$54.99

$

In Stock, Qty 20+

0

8

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, only 1 left!

0

9

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30 Grade 8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 02961600

Blade, 14.50" Mower (915160)

Note: (915160)

$27.99

$

In Stock, Qty 20+

0

Gravely 02982000

Blade, 16.19" Mower (915162)
(Superseded to 00450200)

Note: (915162)

$29.99

$

In Stock, Qty 20+

0

Gravely 02961700

Blade, 18.50" Mower (915164)

Note: (915164)

$30.99

$

In Stock, Qty 20+

0

12

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06445700

Washer, Beveled .63 x 1.625 x .140

$5.49

$

In Stock, Qty 20+

0

14

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 00652600

Idler Arm

$47.99

$

In Stock, Qty 5

0

16

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.99

$

In Stock, Qty 20+

0

17

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

18

Gravely 06222400

Bolt, Round Head Square Neck .38-16 x 3.50 Grade 5
(Superseded to 06200302)

$9.99

$

In Stock, Qty 11

0

19

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$6.49

$

In Stock, Qty 20+

0

20

Gravely 00391900

Finger, Belt

$21.99

$

In Stock, Qty 9

0

21

Gravely 01581700

Spacer, Powdered Metal

$6.99

$

In Stock, Qty 20+

0

22

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x 125
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .25

$6.49

$

In Stock, Qty 20+

0

24

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 06213400

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$4.99

$

In Stock, Qty 20+

0

26

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

28

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 07219600

Belt, HA 127.12 Wrapped (915160)

Note: (915160)

$83.99

$

In Stock, Qty 20+

0

Gravely 07200436

Belt, HA Wrapped 134" (915162)

Note: (915162)

$78.99

$

In Stock, only 3 left!

0

Gravely 07200023

Belt, HA 145.50 Wrapped (915164)

Note: (915164)

$90.99

$

In Stock, Qty 20+

0

30

Gravely 08300020

Spring

$26.99

$

In Stock, Qty 20+

0

31

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, Qty 9

0

32

Gravely 06441700

Washer, Flat Steel .39 x 1.5 x .125

$3.99

$

In Stock, Qty 12

0

33

Gravely 06500013

Nut, Coupling .50-13 x 1.75

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 01594000

Spacer, .39 x 1.50 x .380

$3.99

$

In Stock, Qty 16

0

35

Gravely 00655953

Belt Cover, Right (915160)

Note: (915160)

$33.99

$

Usually ships in 4-12 days

0

Gravely 00486953

Belt Cover, Right (915162)

Note: (915162)

$59.99

$

Usually ships in 4-12 days

0

Gravely 02995353

Belt Cover, Right (915164)

Note: (915164)

$51.99

$

Usually ships in 4-12 days

0

36

Gravely 00607553

Belt Cover, Left (915160)

Note: (915160)

$41.99

$

In Stock, only 1 left!

0

Gravely 00486853

Belt Cover, Left (915162)

Note: (915162)

$39.99

$

Usually ships in 4-12 days

0

Gravely 02995253

Belt Cover, Left (915164)

Note: (915164)

$45.99

$

In Stock, only 1 left!

0

37

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06200008

Bolt, Round Head Square Neck .31-18 x 1.25 Grade 5
(Superseded to 06200310)

$1.99

$

In Stock, only 3 left!

0

39

Gravely 06228100

Bolt, Round Head Square Neck .38-16 x 3.0 Grade 5
(Superseded to 06200418)

$4.99

$

In Stock, Qty 19

0

40

Gravely 06545400

Nut, .31-18 Nyloc Flange (915162, 164)
(Superseded to 06500809)

Note: (915162, 164)

$1.99

$

In Stock, Qty 20+

0

Gravely 06545400

Nut, .31-18 Nyloc Flange (915160)
(Superseded to 06500809)

Note: (915160)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 (915162, 164)
(Superseded to 05901704)

Note: (915162, 164)

$1.99

$

In Stock, Qty 20+

0

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 (915160)
(Superseded to 05901704)

Note: (915160)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 06537300

Nut, Hex .50-13
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

43

Gravely 05959700

Bolt, Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

44

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

45

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 05515800

Bushing, Flange .406 x .88 x .270 x .140

$9.99

$

In Stock, Qty 6

0

47

Gravely 02989953

Deflector, 42 Deck (915160)

Note: (915160)

$38.99

$

Usually ships in 4-12 days

0

Gravely 01975553

Deflector, 48/54 Deck (915162, 164)

Note: (915162, 164)

$35.99

$

Usually ships in 4-12 days

0
