918027 - Ariens Ikon Select 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 035000 & Above) Foot Pedal - 42" and 52" Select Parts Diagram

Ikon Select 42" Zero-Turn Mower, 21.5hp Kawasaki FR

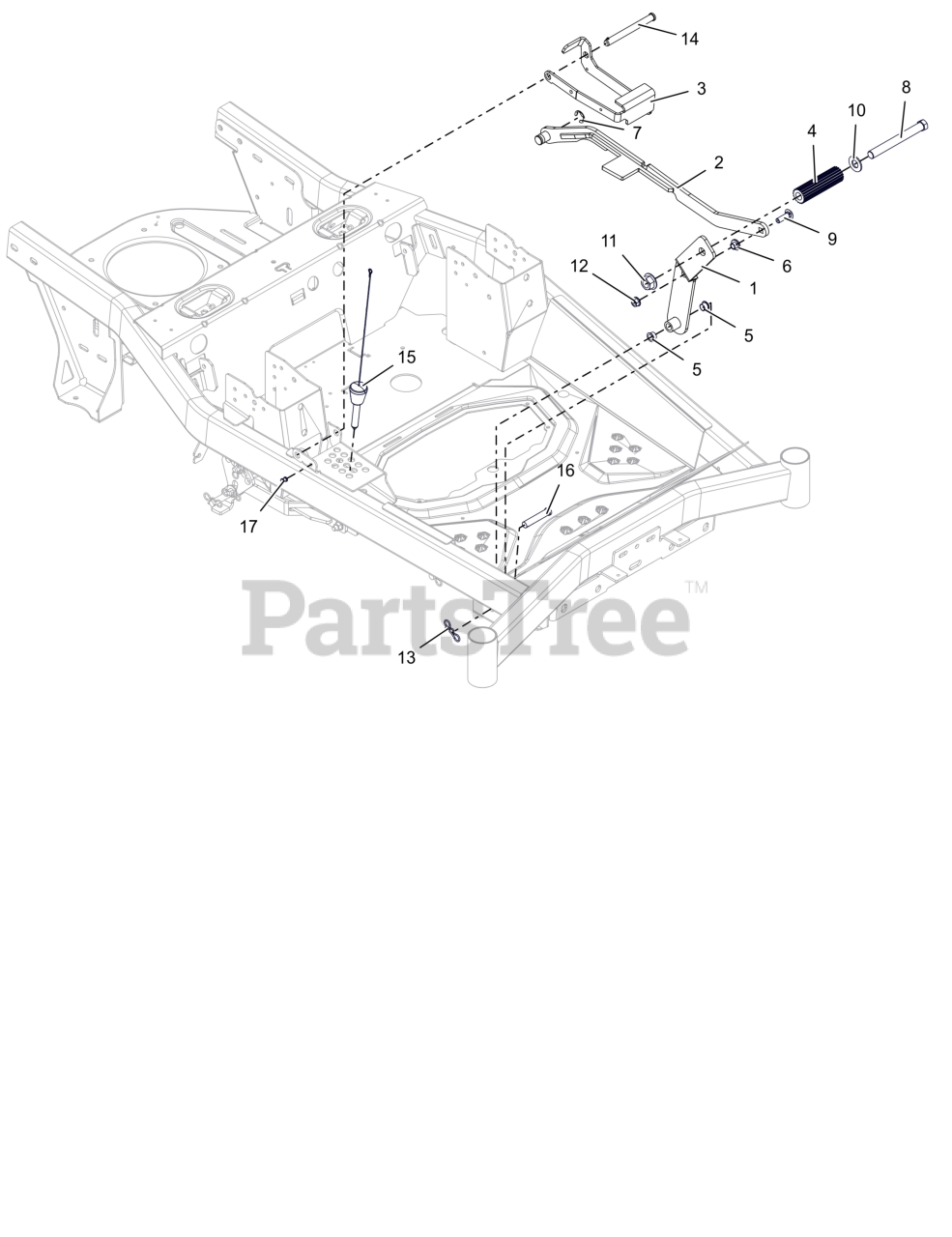

Foot Pedal - 42" and 52" Select Parts Diagram

  • Title

1

Ariens 09658659

WLDMT- FOOT PEDAL-ORG

$58.99

$

Usually ships in 4-12 days

0

2

Ariens 09660459

LINK- DECK LIFT-ORG

$64.99

$

Usually ships in 4-12 days

0

3

Ariens 09663659

WLDMT, TRANSPORT LOCK (ORANGE)

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 05120951

ROD, FOOT PEDAL (BLACK)

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

6

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

7

Ariens 05700218

E-RING .750X.050

$2.99

$

In Stock, Qty 20+

0

8

Ariens 05901730

BLT, HEX .62-11X5.50 G5 FBP

$7.49

$

Usually ships in 4-12 days

0

9

Ariens 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.99

$

In Stock, Qty 12

0

10

Ariens 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06500835

NUT,FLG-TOP LK .625-11 FBP

$7.49

$

Usually ships in 4-12 days

0

12

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06700220

PIN, BOWTIE .091X1.875 ZCC

$2.99

$

In Stock, Qty 20+

0

14

Ariens 06800201

PIN-SLIC .50X4.97X4.55 -ZCC

$8.49

$

In Stock, only 2 left!

0

15

Ariens 06800218

PIN- MAGNETIC .50X2.70

$25.99

$

In Stock, only 2 left!

0

16

Ariens 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

In Stock, Qty 18

0

17

Ariens 07001918

POST, & SCREW, PUSH LOCK .25 X .25

$3.99

$

Usually ships in 4-12 days

0
