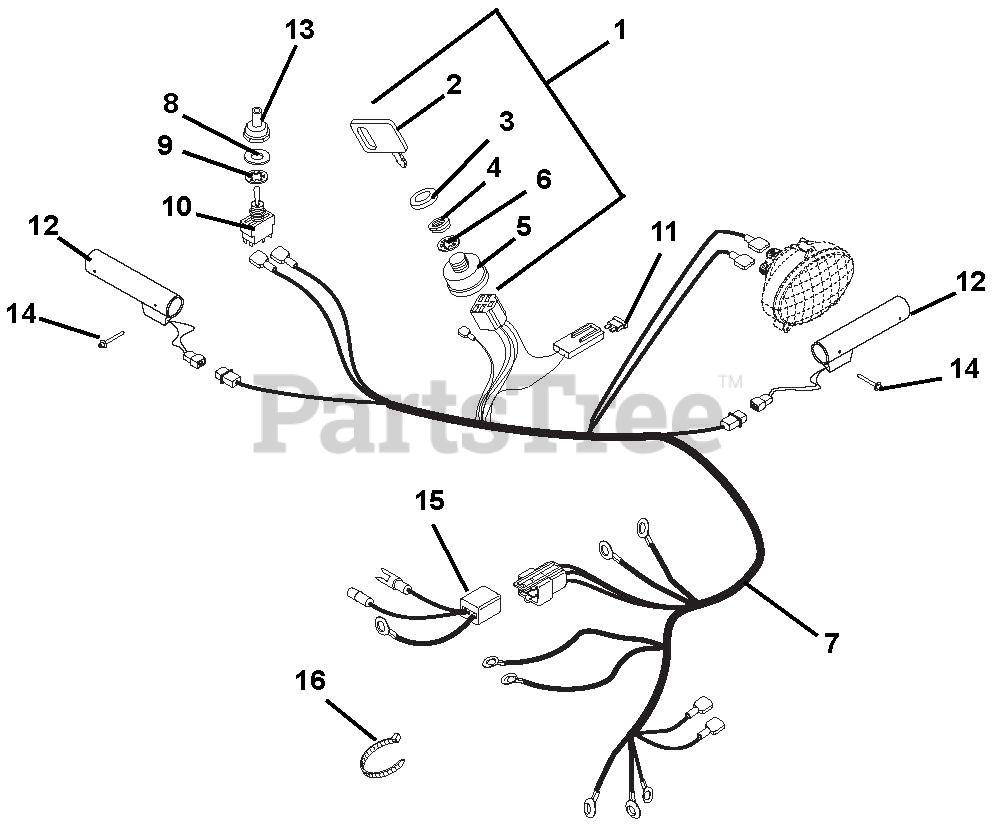

926320 (PRO 28) - Ariens Professional 28" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Electrical Parts Diagram

Professional 28" Track Snow Blower, Briggs & Stratton

Electrical Parts Diagram

  • Title

1

Ariens 52709300

SWITCH ASSEMBLY

Note: (Includes Items 2 - 6) (926104, 105, 506, 507, 508)

$60.99

$

In Stock, only 1 left!

0

2

Ariens 02460700

KEY -W/CAP

Note: (926104, 105, 506, 507, 508)

$11.99

$

In Stock, Qty 19

0

3

Ariens 07517700

CAP - IGNITION SWITCH

Note: (926104, 105, 506, 507, 508)

$4.99

$

In Stock, Qty 10

0

4

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: (926104, 105, 506, 507, 508)

$9.99

$

Usually ships in 4-12 days

0

5

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (926104, 105, 506, 507, 508)

$60.99

$

In Stock, only 1 left!

0

6

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

Note: (926104, 105, 506, 507, 508)

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 03883900

HARNESS, LIGHT&HW, 2 PIN W/GRD

Note: (926037, 038, 039, 040, 042, 043, 319, 320)

$54.99

$

Usually ships in 4-12 days

0

7

Ariens 00432401

HARNESS, WIRE-LT, HW, & 12V

Note: (926104, 105, 506, 507, 508)

$130.99

$

Usually ships in 4-12 days

0

8

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

$2.99

$

In Stock, only 1 left!

0

10

Ariens 02485700

SWITCH, ON/OFF

$18.99

$

In Stock, only 1 left!

0

11

Ariens 00524700

FUSE, 15 AMP.

Note: (926104, 105, 506, 507, 508)

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$55.99

$

In Stock, only 2 left!

0

13

Ariens 09207600

BOOT, SWITCH

Note: (Optional)

$68.99

$

Usually ships in 4-12 days

0

14

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 00388300

HARNESS ADAPTER, BRIGGS 12V

Note: (926104, 105, 506, 507, 508)

$

$

Not available

16

Ariens 07517300

CABLE TIE LG 5-1/2

$1.99

$

Usually ships in 4-12 days

0
