936027 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hanger Arm 40" Parts Diagram

Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro

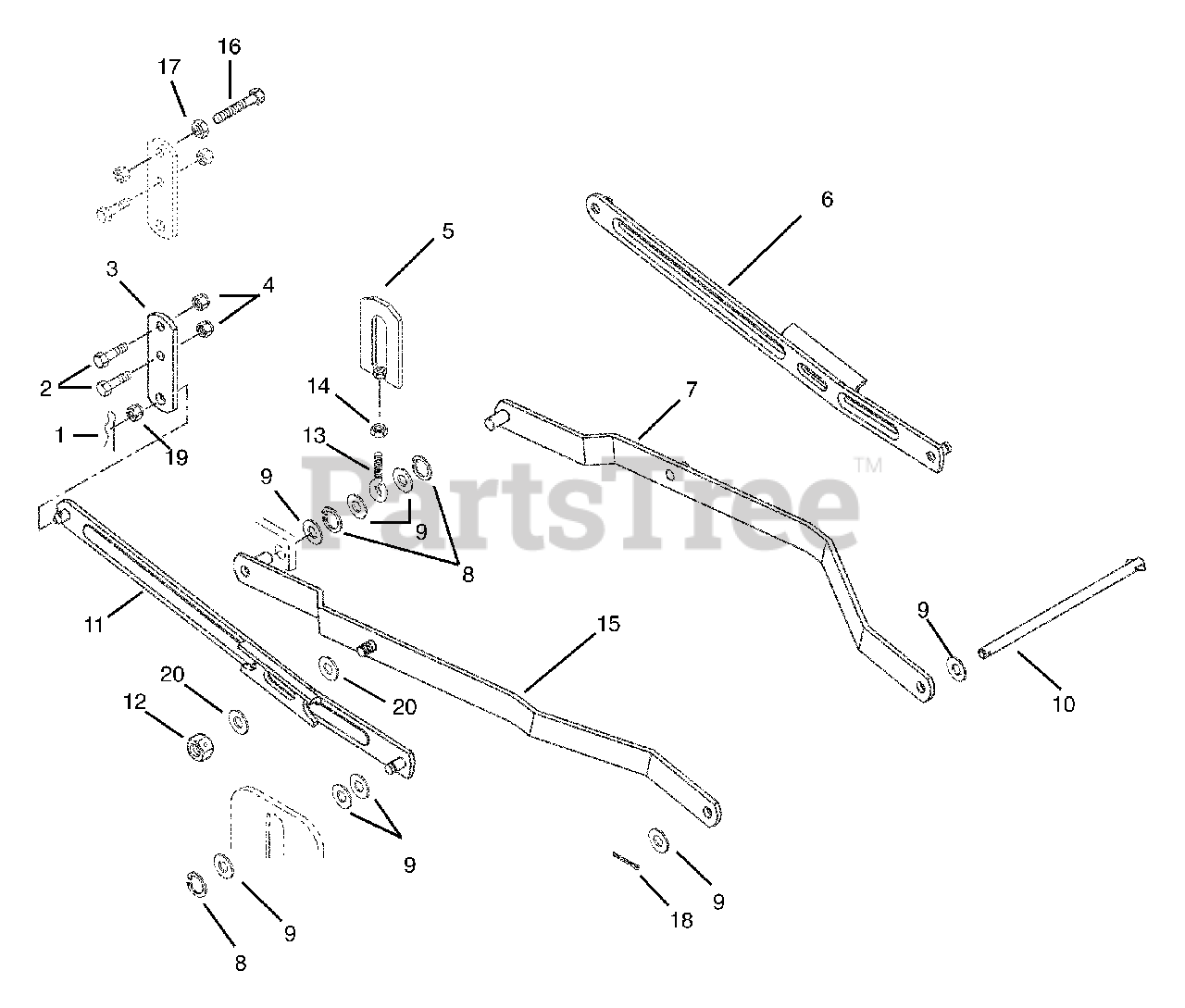

Hanger Arm 40" Parts Diagram

  • Title

1

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, only 2 left!

0

2

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (936022,312)

$1.99

$

In Stock, Qty 10

0

2

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (936023,026,027,310,311)

$1.99

$

In Stock, Qty 10

0

3

Ariens 03588700

HANGER BRACKET
(Superseded to 03588751)

$31.99

$

Usually ships in 4-12 days

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03486400

LINK, ADJUSTMENT

$44.99

$

In Stock, only 2 left!

0

6

Ariens 03667000

REAR HANGER - LH
(Superseded to 53608900)

$

$

Not available

7

Ariens 01534700

L.H. LIFT ARM
(Superseded to 51504400)

$

$

Not available

8

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

9

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

10

Ariens 01535900

PIN

$

$

Not available

11

Ariens 03667100

REAR HANGER - RH
(Superseded to 53609000)

$

$

Not available

12

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 03624500

HANGER

$

$

Not available

14

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 01534800

R.H. LIFT ARM
(Superseded to 51504500)

$

$

Not available

16

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (936023,026,027,310,311)

$1.99

$

In Stock, only 3 left!

0

17

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

Note: (936023,026,027,310,311)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

19

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

20

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0
