990013 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

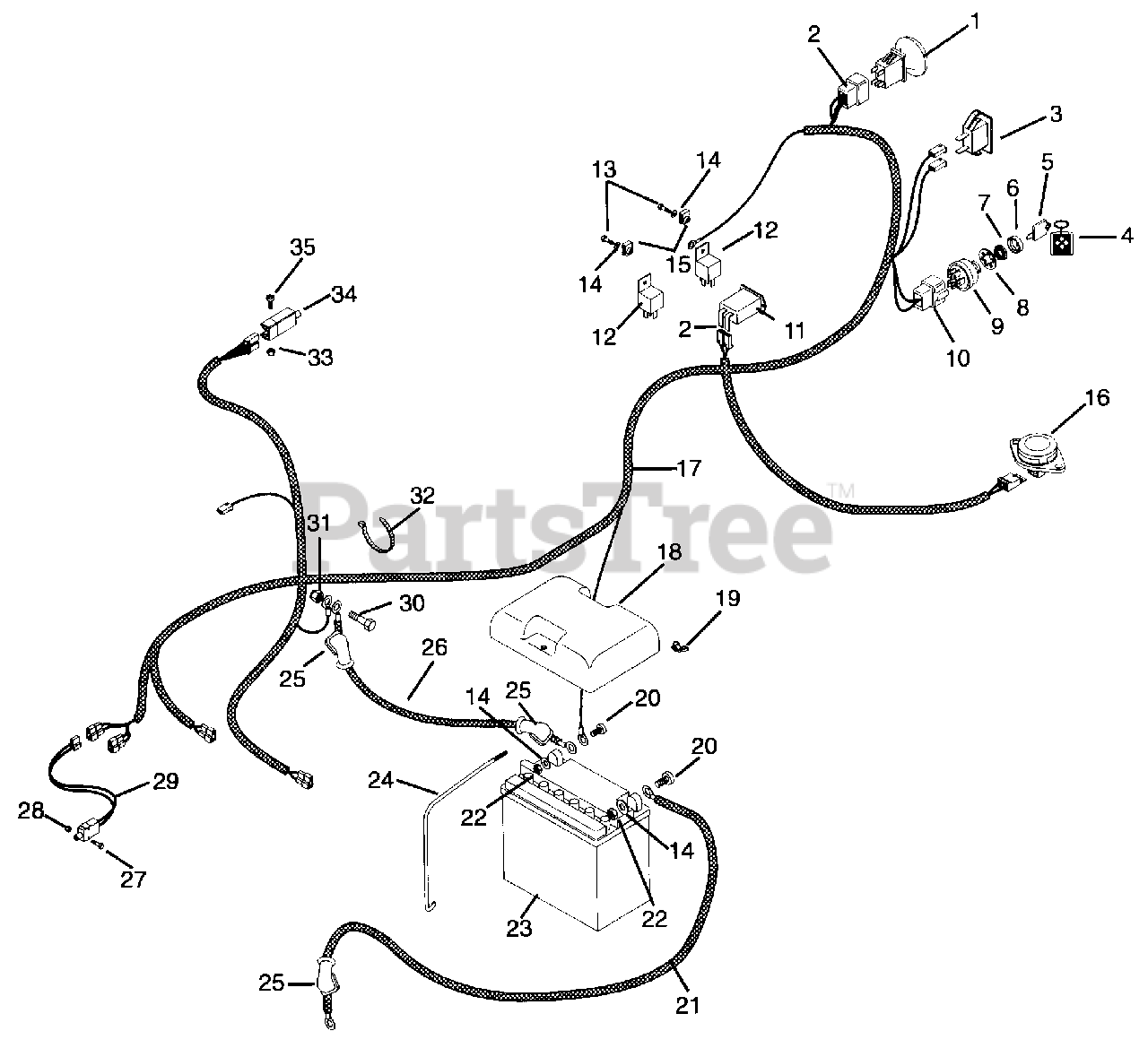

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 00522100

SWITCH, CLUTCH WITH RETAINER
(Superseded to 01545600)

$27.99

$

In Stock, Qty 20+

0

2

Gravely 038059

TERMINAL
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

3

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

4

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

5

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

6

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

7

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

8

Gravely 019667

WSHR-LK-INT .563X.040 YWZC
(Superseded to 06310900)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 15

0

10

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$8.49

$

In Stock, only 3 left!

0

11

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 15

0

12

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 06111400

SCR-MCH .31-18X.625 LH

$

$

Not available

14

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

16

Gravely 03654200

SWITCH- SEAT

$15.99

$

In Stock, Qty 7

0

17

Gravely 09065800

WIRE HARNESS

$

$

Not available

18

Gravely 044348

COVER, BATTERY
(Superseded to 04912900)

$11.99

$

In Stock, only 2 left!

0

19

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

20

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

21

Gravely 047649

CABLE, STARTER .31X23.00X.31
(Superseded to 03492500)

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

23

Gravely 051188

BATTERY
(Superseded to 09206000)

$

$

Not available

24

Gravely 051246

ROD,BATTERY
(Superseded to 09030400)

$

$

Not available

25

Gravely 03384700

BOOT, INSULATOR

$

$

Not available

26

Gravely 042130

CABLE-NEGATIVE BATTERY 24.00"
(Superseded to 03288100)

$20.99

$

In Stock, only 2 left!

0

27

Gravely 06117900

SCR-MCH 6-32X.75 HWH YWZC

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06538900

NUT-LK-NYL 6-32 W/INSRT YWZC

$1.49

$

Usually ships in 4-12 days

0

29

Gravely 050480

SWITCH, N.O.
(Superseded to 08996200)

$53.99

$

Usually ships in 4-12 days

0

30

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 046219

SWITCH,INTERLOCK
(Superseded to 08828100)

$21.99

$

In Stock, only 1 left!

0

35

Gravely 06117000

SCR-MCH 8-32X.75 HWH YWZC

$4.99

$

Usually ships in 4-12 days

0
