990013 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) PTO DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

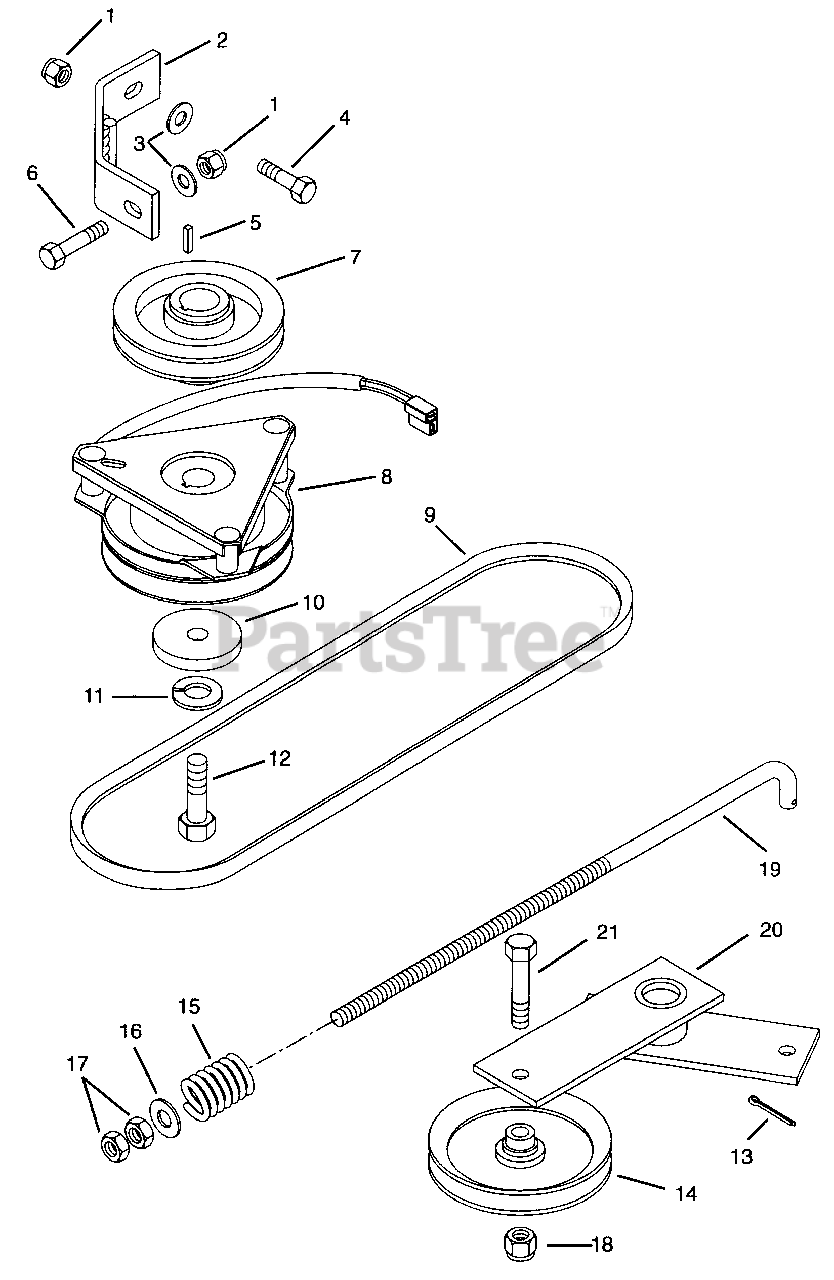

PTO DRIVE Parts Diagram

  • Title

1

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 052643

WLDMT,CLUTCH STOP
(Superseded to 09010800)

Note: (012)

$109.99

$

Usually ships in 4-12 days

0

Gravely 09069800

WLDMT, PTO CLUTCH STOP
(Superseded to 59002100)

Note: (013)

$76.99

$

Usually ships in 4-12 days

0

3

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$3.49

$

In Stock, only 1 left!

0

6

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

7

Gravely 049352

SHEAVE
(Superseded to 08989100)

Note: (012)

$

$

Not available

Gravely 09078200

SHEAVE

Note: (013)

$

$

Not available

8

Gravely 052632

CLUTCH, ELECTRIC
(Superseded to 04915400)

Note: (012)

$496.99

$

In Stock, only 1 left!

0

Gravely 09068200

CLUTCH, ELECTRIC

Note: (013)

$550.99

$

Usually ships in 4-12 days

0

9

Gravely 07225100

V-BELT, HA-RAW EDGE

Note: (012)

$42.99

$

In Stock, only 1 left!

0

Gravely 07233500

V-BELT, HB-WRAPPED

Note: (013)

$59.99

$

In Stock, only 1 left!

0

10

Gravely 044379

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

11

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

12

Gravely 05958800

BLT-HEX .44-20X1.5 YWZC
(Superseded to 05902004)

$6.99

$

In Stock, Qty 8

0

13

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$1.49

$

In Stock, Qty 20+

0

14

Gravely 021060

PLY-IDLER 4.00X.380
(Superseded to 07314800)

$43.99

$

In Stock, Qty 10

0

15

Gravely 021506

SG-COMP .072X.561X2.50
(Superseded to 08329600)

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 09037600

ROD, IDLER

$

$

Not available

20

Gravely 049754

WLDMT,IDLER
(Superseded to 08992400)

$

$

Not available

21

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.99

$

In Stock, Qty 20+

0
