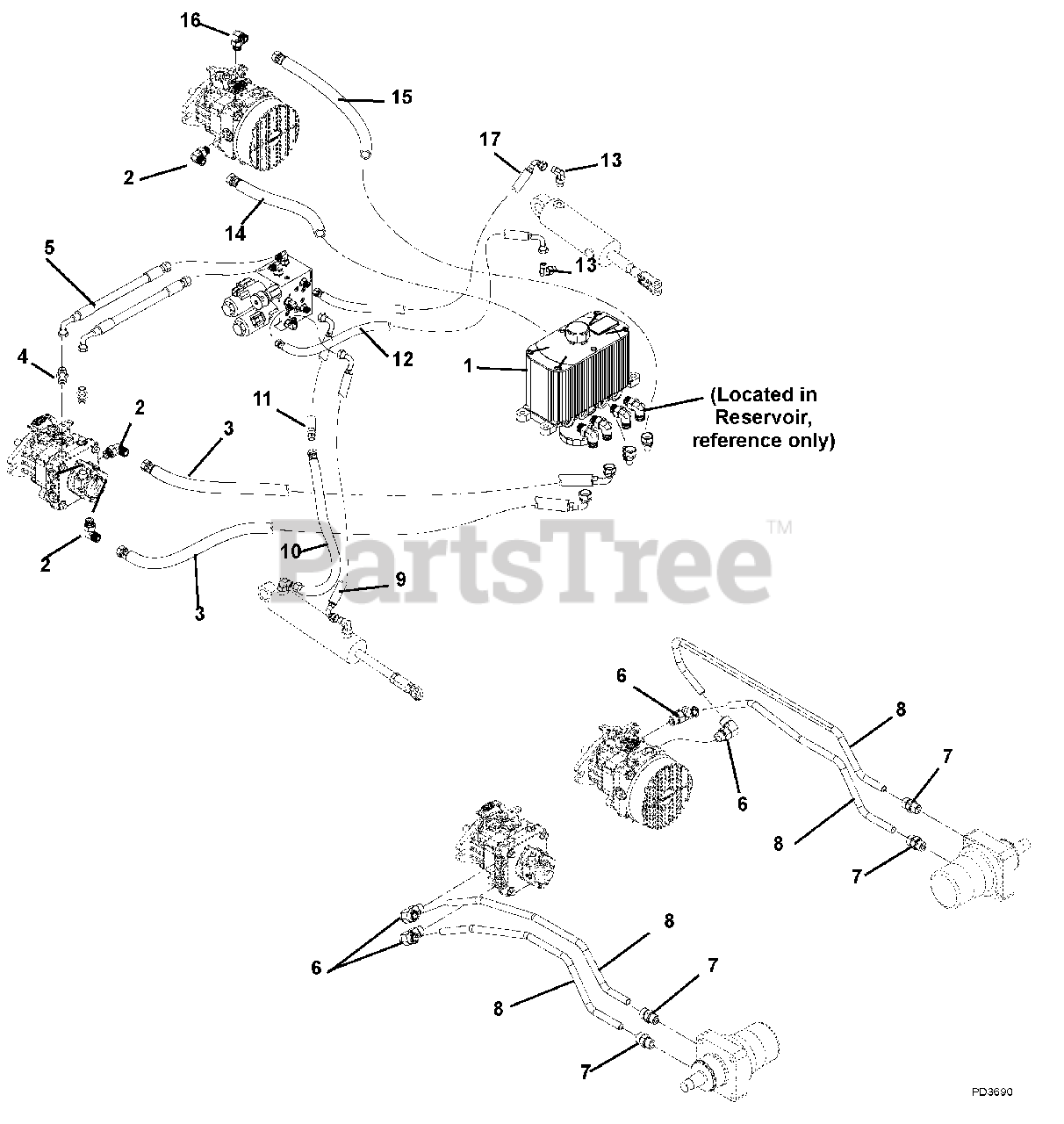

990102 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

  • Title

1

Gravely 00585500

Tank, Hydraulic Reservoir/Filter

$

$

Not available

NS

Gravely 21543400

Filter, Hydraulic

$23.99

$

In Stock, only 1 left!

0

2

Gravely 07069600

Fitting, Hydraulic 90 Elbow M8F-M8O 8 C5OLO-Steel

$35.99

$

Usually ships in 4-12 days

0

3

Gravely 00601700

Hose, Hydraulic .50-15-0K F08F0-F08F9

$107.99

$

Usually ships in 4-12 days

0

4

Gravely 07064100

Fitting, Hydraulic

$

$

Not available

5

Gravely 01967900

Hose, Hydraulic

$

$

Not available

6

Gravely 07000043

Fitting, Hydraulic 90 M10F-M8O

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 07000042

Fitting, Hydraulic Straight M10O-M10F

$

$

Not available

8

Gravely 00669000

Hose, Hydraulic .50-25-2K F10F0-F10F0

$

$

Not available

9

Gravely 00608900

Hose, Hydraulic .25-39-2K F04F0-F04F0

$43.99

$

Usually ships in 4-12 days

0

10

Gravely 00609000

Hose, Hydraulic .25-16-2K F04F0-F04F9

$48.99

$

Usually ships in 4-12 days

0

11

Gravely 00608700

Hose, Hydraulic .25-20-2K F04F9-F04F9

$

$

Not available

12

Gravely 00608600

Hose, Hydraulic .25-21-2K F04F0-F04F9

$

$

Not available

13

Gravely 07000045

Adapter, Hydraulic Fitting 90 M4F-M6O 4-6 C5OLO

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 00959700

Hose, Hydraulic .5-17.25-0K F8F9-F8F9

$64.99

$

Usually ships in 4-12 days

0

15

Gravely 00960100

Hose, Hydraulic .5-17.25-0K F8F9-F8F9

$68.99

$

Usually ships in 4-12 days

0

16

Gravely 07059900

Adapter, Face Seal 8 x 8 .50 O-Ring

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 00698400

Hose, Hydraulic .25-16-2K F04F9-F04F0

$

$

Not available
