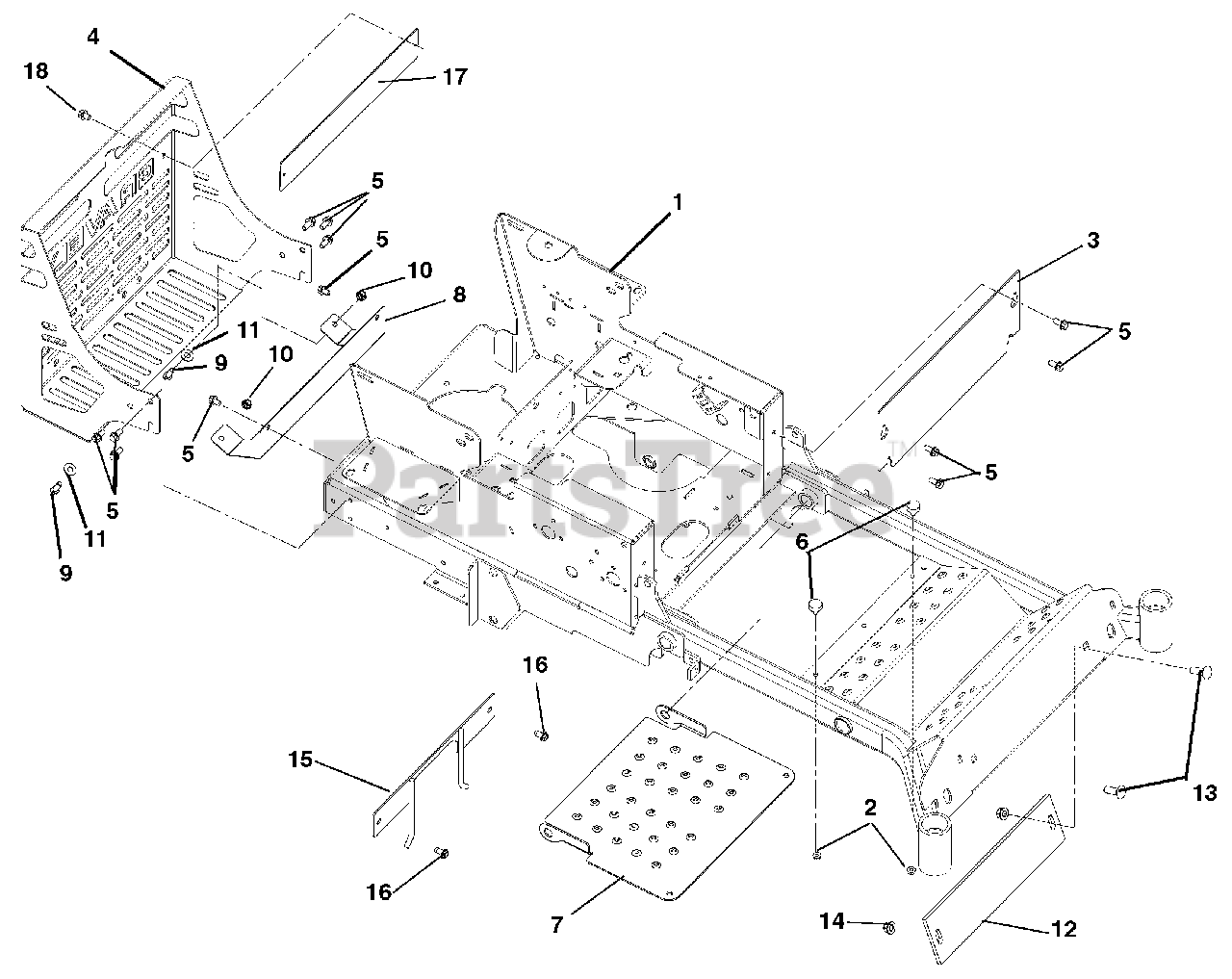

991073 - Ariens Max-Zoom HD 48" Zero-Turn Mower, 24hp Kawasaki (SN: 000101 & Above) Frame Parts Diagram

Max-Zoom HD 48" Zero-Turn Mower, 24hp Kawasaki

Frame Parts Diagram

  • Title

1

Ariens 03975051

WLDMT, 48" HD FRAME

Note: (073)

$

$

Not available

Ariens 03974951

WLDMT, 52/60" HD FRAME

Note: (074, 075)

$2149.99

$

Usually ships in 4-12 days

0

2

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 02989059

PLATE, KICK

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 03994651

BUMPER, ARIENS MAX ZOOM

$209.99

$

Usually ships in 4-12 days

0

5

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

7

Ariens 00298959

PANEL, INSPECTION

$83.99

$

Usually ships in 4-12 days

0

8

Ariens 00462351

SHIELD - HEAT - CZ PROD

$51.99

$

Usually ships in 4-12 days

0

9

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 01922851

COUNTERWEIGHT, CZ FRONT-BLACK

Note: (073)

$34.99

$

Usually ships in 4-12 days

0

13

Ariens 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

Note: (991073)

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

Note: (073)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 04053651

PTO BELT FINGER WLDMT - BLK

$29.99

$

Usually ships in 4-12 days

0

16

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 03948251

BUMPER BACKER PLATE - BLACK

$18.99

$

Usually ships in 4-12 days

0

18

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+
