991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 000101 - 019999) Engine And Clutch Parts Diagram

Compact-Pro 44" Zero-Turn Mower

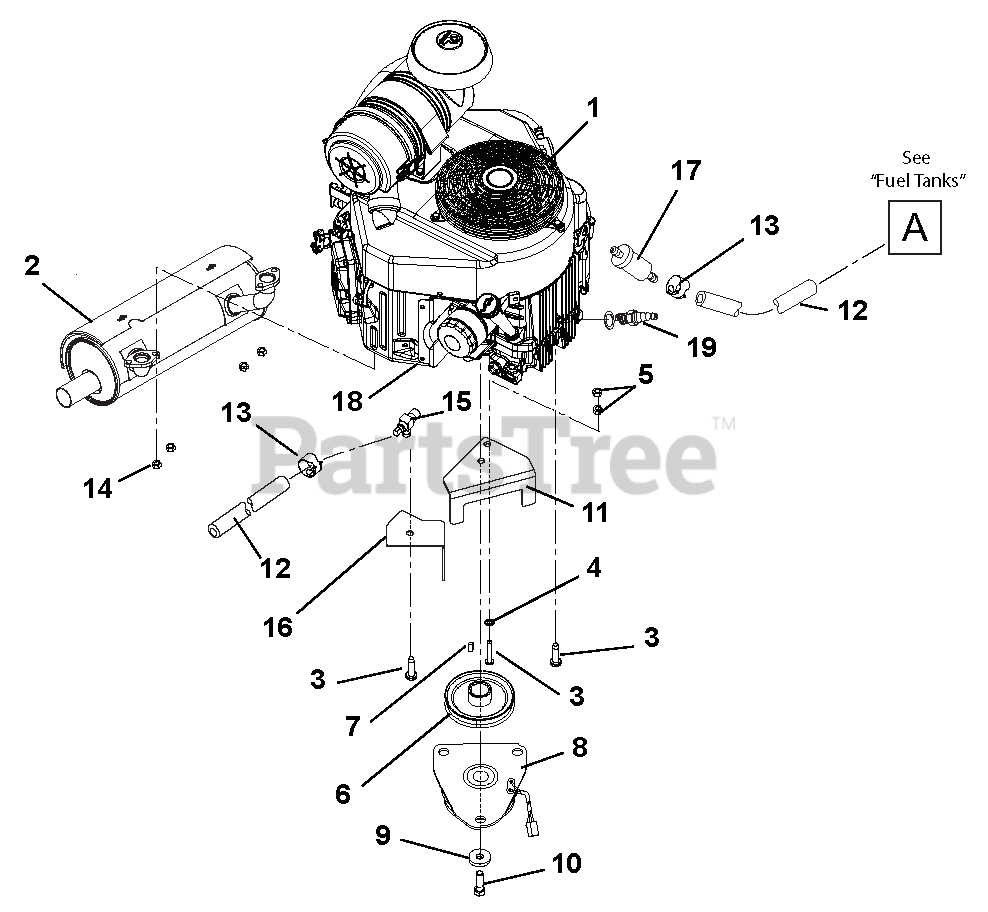

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200526

ENGINE, KAWASAKI FX600 (20HP)

$

$

Not available

2

Gravely 03971600

MUFFLER, KAWASAKI FX 16/20HP

$199.99

$

Usually ships in 4-12 days

0

3

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.99

$

In Stock, Qty 19

0

4

Gravely 06307200

WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, Qty 9

0

5

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE
(Superseded to 07331600)

$103.99

$

Usually ships in 4-12 days

0

7

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 20+

0

8

Gravely 03789900

CLUTCH, OGURA GT1A-AR03

$370.99

$

In Stock, only 1 left!

0

9

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

10

Gravely 05901426

BLT-HEX .44-20X2.00 G5 YZ EP80

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 03766851

ANCHOR - OGURA CLUTCH - HD

$38.99

$

In Stock, only 4 left!

0

12

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 00429000

DRAIN, 1/2" OIL

$40.99

$

In Stock, only 3 left!

0

16

Gravely 03772951

GUARD, HD CLUTCH WIRE

$33.99

$

In Stock, only 2 left!

0

17

Gravely 21438400

WASHER 8, POLISHED

$

$

Not available

18

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

19

Gravely 21533600

PLUG, SPARK

$8.49

$

In Stock, Qty 20+

0

20

Gravely 21538200

AIR FLTR,PAPER

$21.99

$

In Stock, Qty 20+

0

21

Gravely 21538300

FILTER, FOAM AIR PRE-

$11.99

$

Usually ships in 4-12 days

0
