991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 000101 - 019999) Frame Parts Diagram

Compact-Pro 44" Zero-Turn Mower

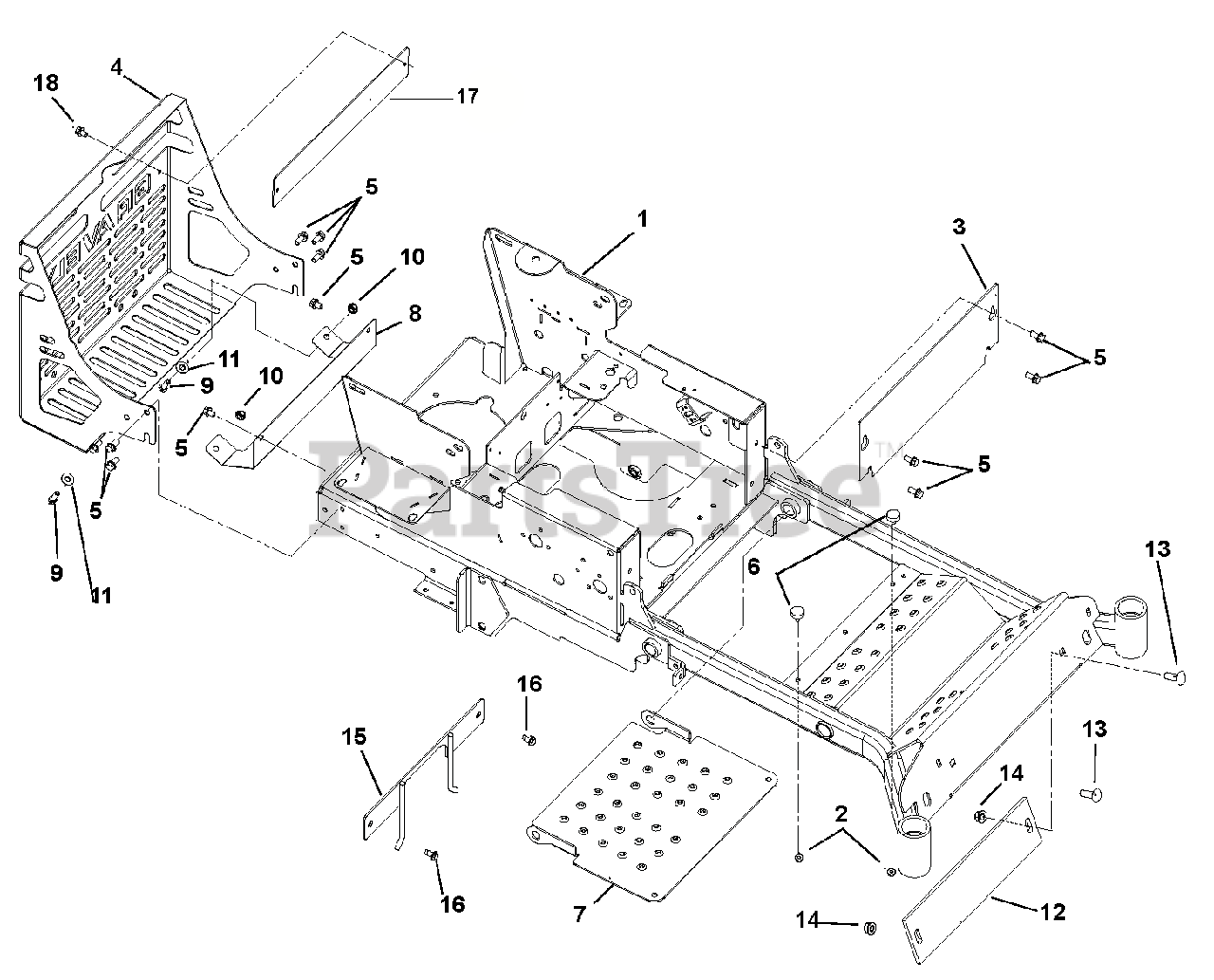

Frame Parts Diagram

  • Title

1

Gravely 03782353

WLDMT, FRAME

$

$

Not available

2

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 02989053

KICK PLATE - RED

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 03996053

BUMPER, COMPACT-PRO 2044

$209.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

7

Gravely 00298951

PANEL, INSPECTION - BLACK

$73.99

$

Usually ships in 4-12 days

0

8

Gravely 00462351

SHIELD - HEAT - CZ PROD

$51.99

$

In Stock, only 1 left!

0

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01922851

COUNTERWEIGHT, CZ FRONT-BLACK

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 06224800

BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04053651

PTO BELT FINGER WLDMT - BLK

$29.99

$

Usually ships in 4-12 days

0

16

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 03948251

BUMPER BACKER PLATE - BLACK

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
