991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 000101 - 019999) Fuel Tanks And Hoses Parts Diagram

Compact-Pro 44" Zero-Turn Mower

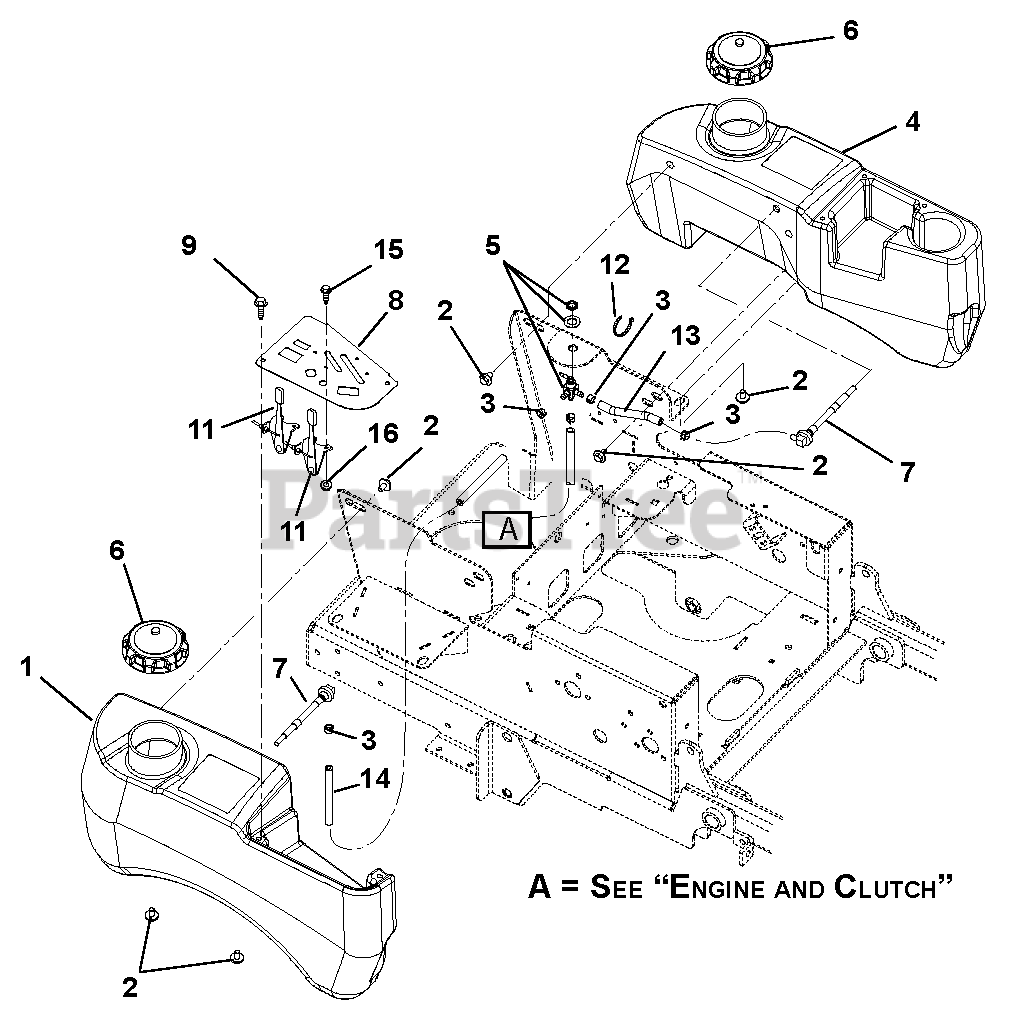

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 03973300

Tank, Fuel RH (S/N 101 – 2499)

Note: (S/N 101 – 2499)

$281.99

$

Usually ships in 4-12 days

0

1

Gravely 04245300

Tank, Fuel RH (S/N 2500 and up)

Note: (S/N 2500 and up)

$208.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, only 4 left!

0

3

Gravely 03278800

Clamp, Fuel Line

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 03973400

Tank, Fuel LH (S/N 101 – 2499)

Note: (S/N 101 – 2499)

$281.99

$

In Stock, only 2 left!

0

4

Gravely 04245400

Tank, Fuel LH (S/N 2500 and up)

Note: (S/N 2500 and up)

$215.99

$

Usually ships in 4-12 days

0

5

Gravely 09258200

Valve, Fuel

$48.99

$

In Stock, only 3 left!

0

6

Gravely 03859100

Cap, Fuel (S/N 101 – 2499)

Note: (S/N 101 – 2499)

$29.99

$

In Stock, only 3 left!

0

6

Gravely 04237300

Cap, Fuel Ratcheting (S/N 2500 and up)
(Superseded to 09190300)

Note: (S/N 2500 and up)

$35.99

$

In Stock, only 2 left!

0

7

Gravely 03900300

Assembly, Tank Fuel Pick-up
(Superseded to 04320900)

$40.99

$

In Stock, Qty 5

0

8

Gravely 00453951

Panel, Control

$27.99

$

Usually ships in 4-12 days

0

9

Gravely 06100137

Screw, Machine 10-24 x .50 Stainless

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06900336

Cable, Throttle

$79.99

$

Usually ships in 4-12 days

0

11

Gravely 06900319

Cable, Control

$47.99

$

Usually ships in 4-12 days

0

12

Gravely 07517300

Cable Tie

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
