992041 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Mounting Arms, Brackets And Belt Guards Parts Diagram

Pro-Master 50" Zero-Turn Mower, 22hp Briggs & Stratton

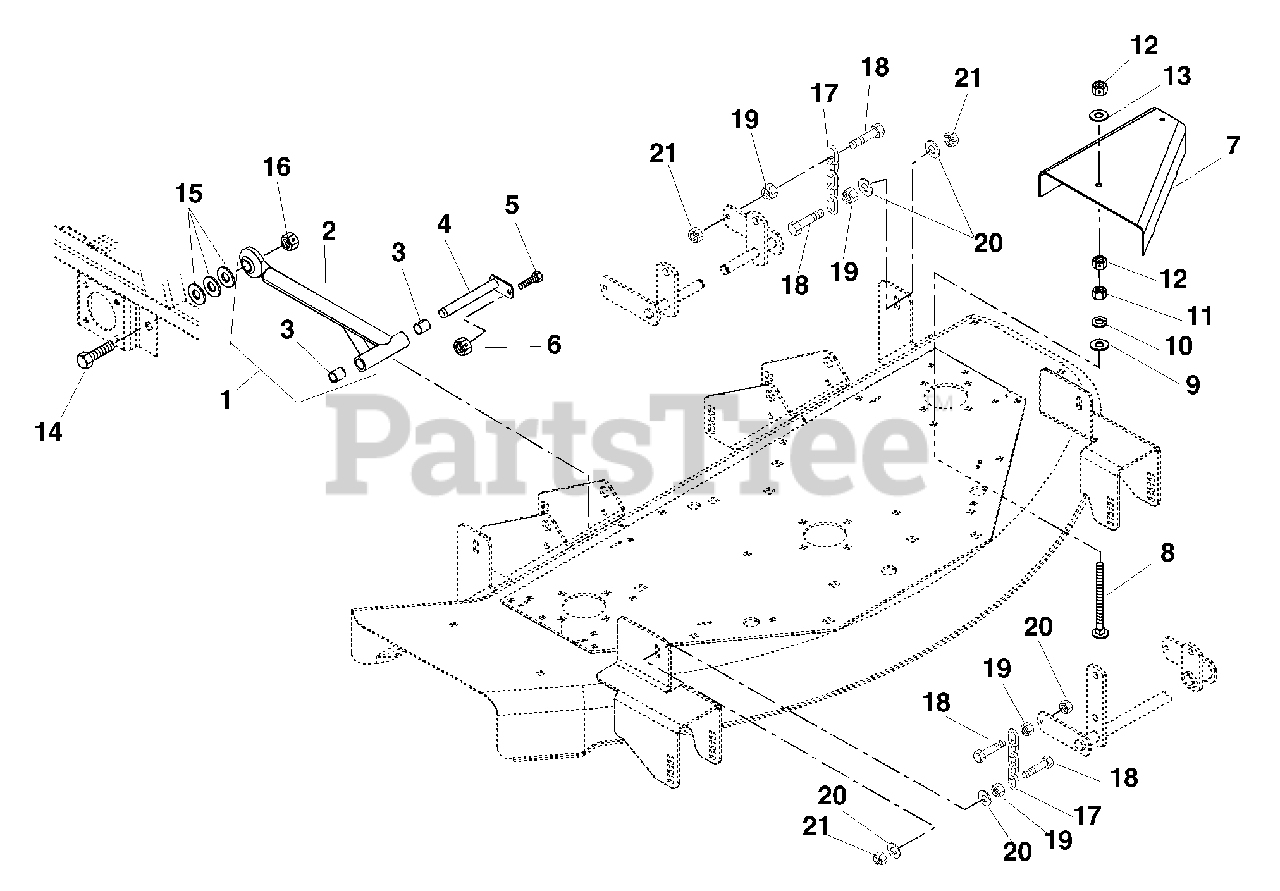

Mounting Arms, Brackets And Belt Guards Parts Diagram

  • Title

1

Gravely 09247800

Assembly, Mower Mounting Arm

Note: (Contains Items 2, 3)

$276.99

$

Usually ships in 4-12 days

0

2

Gravely 09247900

Weldment-Mower Mounting Arm
(Superseded to 09247951)

$261.99

$

Usually ships in 4-12 days

0

3

Gravely 05433400

Bearing .75 x .875 x 1.00
(Superseded to 05435900)

$6.99

$

In Stock, Qty 20+

0

4

Gravely 09238900

Weldment, Mower Mounting Pin

$63.99

$

In Stock, only 2 left!

0

5

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 8

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09246353

Guard, Pulley Right Hand

$70.99

$

In Stock, only 1 left!

0

7

Gravely 09246253

Guard, Pulley Left Hand

$52.99

$

In Stock, only 2 left!

0

8

Gravely 06221300

Bolt-Round Head Square Neck .31-18 x 3.50
(Superseded to 06200411)

$6.99

$

In Stock, only 2 left!

0

9

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 14

0

11

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

12

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x.083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05969500

Bolt-Hex .875-9 x 2.75 Grade 5

$8.49

$

In Stock, only 2 left!

0

15

Gravely 06444700

Washer-Flat-Steel .875 x 1.500 x .1196
(Superseded to 06401207)

$4.99

$

In Stock, Qty 8

0

16

Gravely 06539700

Nut-Locking-Center .875-9

$6.49

$

In Stock, only 2 left!

0

17

Gravely 09215300

Chain, Link

$7.49

$

Usually ships in 4-12 days

0

18

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, only 4 left!

0

19

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 8

0

20

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
