992048 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 004001 & Above) Fuel Tanks And Hoses - EFI Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

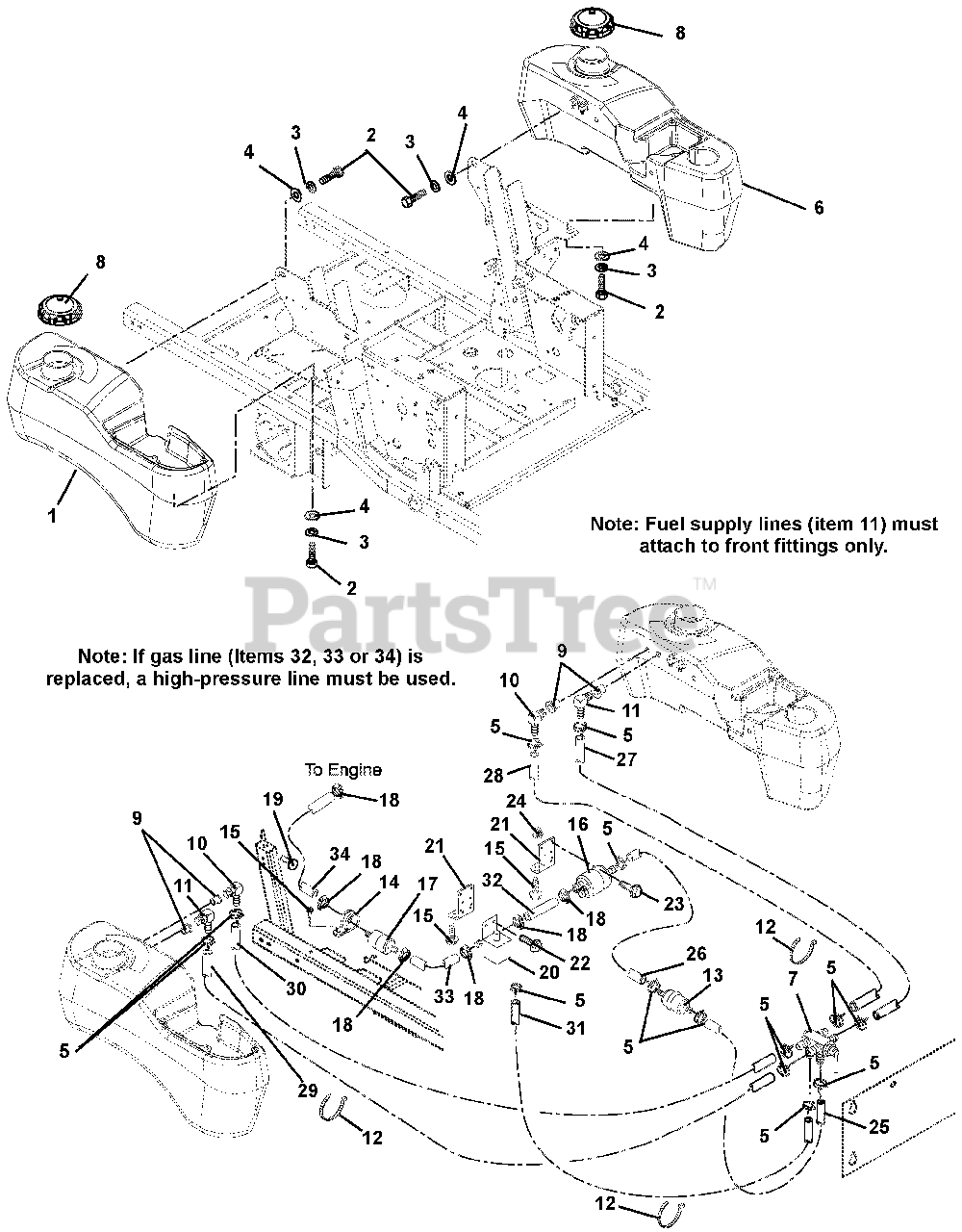

Fuel Tanks And Hoses - EFI Parts Diagram

  • Title

1

Gravely 09290900

TANK, FUEL-RH(W/RTN)W/O HOSE
(Superseded to 04004800)

$

$

Not available

2

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06947900

CLAMP, HOSE WIRE .520/.550

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00199100

TANK, FUEL-LH(W/RTN)W/O HOSE
(Superseded to 04007000)

Note: (EYE-Q) 200 Series-EFI

$

$

Not available

7

Gravely 09289600

VALVE, FUEL

$87.99

$

In Stock, only 2 left!

0

8

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

9

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

10

Gravely 21537200

FITTING, TANK (5/16 ELBOW)

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 21539100

FITTING, TANK ELBOW .31 HOSE

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 05050300

FILTER, FUEL .312 ID HOSE

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 06948000

CLAMP, 2.18"

$

$

Not available

15

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 21536600

PUMP, EFI FUEL

$

$

Not available

17

Gravely 21536500

FILTER, FUEL
(Superseded to 21542900)

$72.99

$

Usually ships in 4-12 days

0

18

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

19

Gravely 09236500

TUBE CLIP 3/4 (4158)

$

$

Not available

20

Gravely 21536700

REGULATOR, EFI FUEL

$

$

Not available

21

Gravely 09292751

BRACKET, PUMP & REGULATOR MTG

$

$

Not available

22

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06504100

NUT-LK TOP 10-24 PL

$

$

Not available

25

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

26

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

27

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

28

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

29

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

30

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

31

Gravely 00936700

GAS LINE, 5/16" ID (PRESSURE)

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 00936700

GAS LINE, 5/16" ID (PRESSURE)

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 00936700

GAS LINE, 5/16" ID (PRESSURE)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 00936700

GAS LINE, 5/16" ID (PRESSURE)

$2.49

$

Usually ships in 4-12 days

0
