992048 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 004001 & Above) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

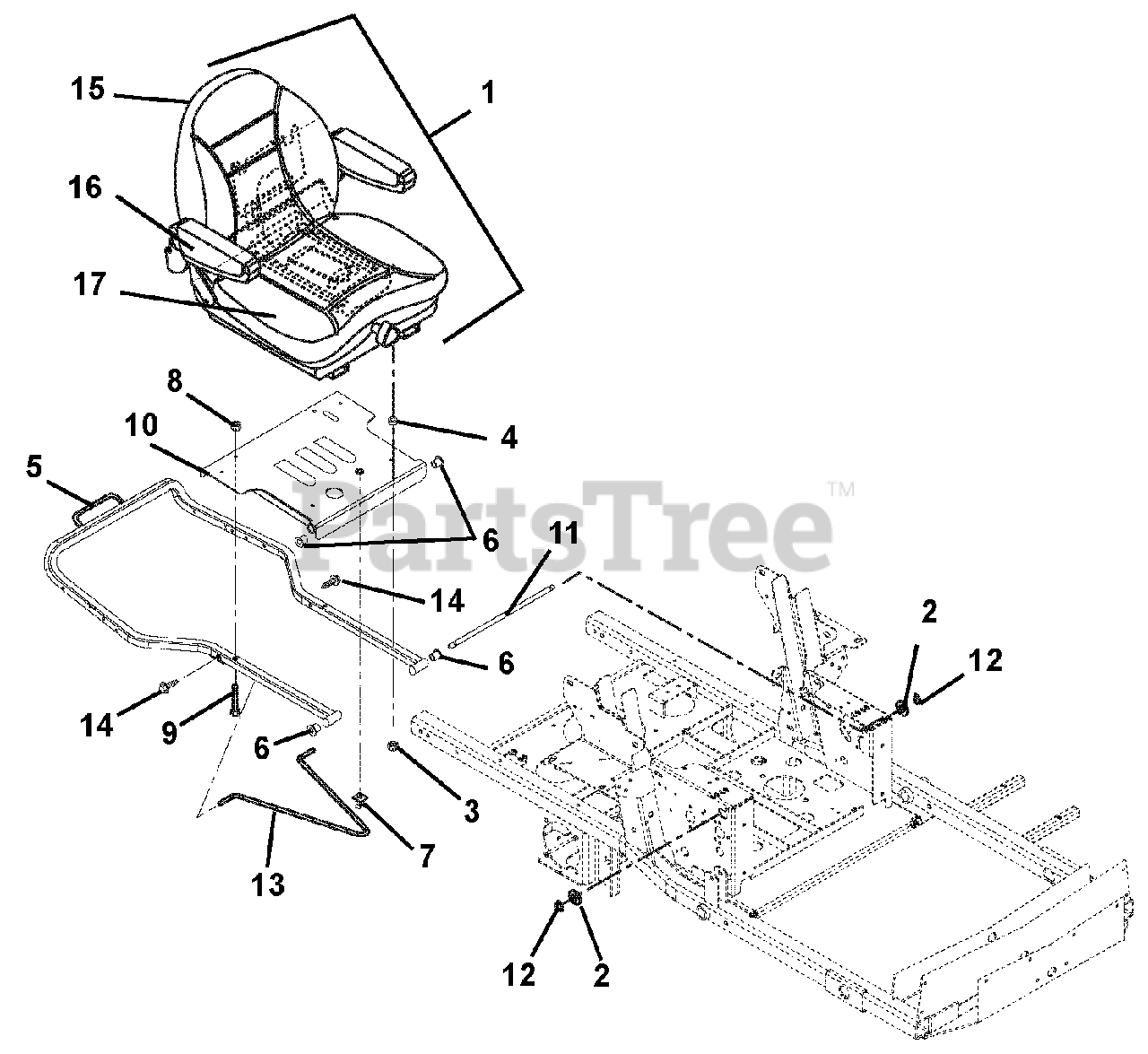

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 09293000

SEAT,
(Superseded to 03947200)

$925.99

$

Usually ships in 4-12 days

0

2

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 039145

BSHG-SLV .377X.624X.235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

5

Gravely 09289553

HOOD FRAME WELDMENT - RED
(Superseded to 09293353)

$277.99

$

Usually ships in 4-12 days

0

6

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 07534100

CLIP-.38

$10.99

$

In Stock, only 2 left!

0

8

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07056300

BLT, .38-16X1.50 RIB NECK YWZC

$

$

Not available

10

Gravely 09259751

WMT, SEAT PIVOT MOUNT
(Superseded to 03259951)

$

$

Not available

11

Gravely 09245400

ROD - SEAT FRAME PIVOT

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 09258500

ROD, SEAT PROP

$

$

Not available

14

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 59204300

KIT,BACK CUSHION

$369.99

$

Usually ships in 4-12 days

0

16

Gravely 59204500

KIT,ARMREST PAD ONLY 1 PER KIT

$

$

Not available

17

Gravely 59204400

KIT,SEAT CUSHION

$235.99

$

Usually ships in 4-12 days

0
