Gravely 992146 (PM 252M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kohler (SN: 000401 & Above) Engine And Clutch Parts Lookup with Diagrams

1

Gravely 08268300

Engine, 25hp Kawasaki (FH721V) (992148, 149, 151, 153)

Note: (FH721V) (992148, 149, 151, 153)

$

Not available 

Gravely 08200029

Engine, 26hp Liquid Cooled Kawasaki (FD731V) (992152, 157, 159)

Note: (FD731V) (992152, 157, 159)

$

Not available 

Gravely 08268100

Engine, 27hp Kohler (CV740S) (992150, 154)

Note: (CV740S) (992150, 154)

$

Not available 

Gravely 08200133

Engine, 23hp Kohler Command (PS75591) (992146)

Note: (PS75591) (992146)

$

Not available 

Gravely 08200143

Engine, 25hp Kohler Command (992147)

Note: (992147)

$

Not available 

Gravely 08200144

Engine, 30hp Kohler (CV750S) (992155)

Note: (CV750S) (992155)

$

Not available 

2

Gravely 09281600

Muffler, Kawasaki (992148, 149, 151, 153)

Note: (992148, 149, 151, 153)

$298.99

$

Usually ships in 4-12 days

Gravely 00297100

Muffler, Kawasaki Liquid Cooled (992152, 157, 159)

Note: (992152, 157, 159)

$

Not available 

Gravely 00470400

Muffler, Kohler Twin (992146, 147, 150, 154, 155)

Note: (992146, 147, 150, 154, 155)

$218.99

$

In Stock, only 3 left!

3

Gravely 07242000

Belt, Poly-V

$54.99

$

In Stock, Qty 9

4

Gravely 07417400

Screw, Tapping Hex Washer Head .38-16 x 1.50 (992146, 147, 148, 149, 150, 151, 153, 154, 155)

(Superseded to 07400203) 

Note: (992146, 147, 148, 149, 150, 151, 153, 154, 155)

$4.99

$

Usually ships in 4-12 days

Gravely 05964900

Bolt, Hex M8-1.25 x 25 Grade 8 (992152, 157, 159)

Note: (992152, 157, 159)

$2.99

$

Usually ships in 4-12 days

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5 (992146, 147, 148, 149, 150, 151, 153, 154, 155)

(Superseded to 05901804) 

Note: (992146, 147, 148, 149, 150, 151, 153, 154, 155)

$3.49

$

In Stock, Qty 5

6

Gravely 06543100

Nut, Locking Top Flange .31-18

(Superseded to 06500904) 

$1.49

$

In Stock, Qty 20+

7

Gravely 07300041

Sheave, Poly V 1.127 x 3.275

$95.99

$

In Stock, only 1 left!

8

Gravely 06600003

Key-Square .25 x 3.50 x .25 SAE (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$5.49

$

In Stock, only 3 left!

9

Gravely 00462500

Clutch, Electric (992146, 147)

Note: (992146, 147)

$619.99

$

Usually ships in 4-12 days

10

Gravely 00447100

Clutch, Electric (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$730.99

$

In Stock, only 1 left!

11

Gravely 06309300

Washer, Locking .44 x .109

(Superseded to 06300121) 

$2.99

$

In Stock, only 3 left!

12

Gravely 05900037

Bolt, Hex .44-20 x 3.00 Grade 5 YZ EP80

$7.49

$

In Stock, Qty 18

13

Gravely 00662151

Anchor, Clutch (992146, 147)

Note: (992146, 147)

$71.99

$

Usually ships in 4-12 days

14

Gravely 00662251

Anchor Clutch (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$84.99

$

Usually ships in 4-12 days

15

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5 (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

(Superseded to 05901928) 

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$1.99

$

In Stock, Qty 10

16

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065 (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

(Superseded to 06401013) 

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$1.49

$

In Stock, Qty 20+

17

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$6.49

$

In Stock, Qty 9

18

Gravely 06542000

Nut-Locking-Top-Flange .38-16 (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

(Superseded to 06500822) 

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$1.49

$

In Stock, Qty 20+

19

Gravely 00924300

Gas Line, Bulk .25 I.D. (992148, 149, 151, 152, 153, 157, 159)

(Superseded to 03278100) 

Note: (992148, 149, 151, 152, 153, 157, 159)

$1.49

$

In Stock, Qty 20+

20

Gravely 07517300

Cable Tie LG 5-1/2 (992148, 149, 151, 152, 153, 157, 159)

Note: (992148, 149, 151, 152, 153, 157, 159)

$

Not available 

21

Gravely 00429000

Drain, 1/2" Drain

$40.99

$

Usually ships in 4-12 days

22

Gravely 07052200

Adapter, .38 NPTF (992146, 147, 150, 154, 155)

Note: (992146, 147, 150, 154, 155)

$15.99

$

Usually ships in 4-12 days

23

Gravely 07024900

Nipple, Pipe .375-18 NPTF x 3.00 (992146, 147, 150, 154, 155)

Note: (992146, 147, 150, 154, 155)

$

Not available 

24

Gravely 21536900

Element, Inner Safety (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$29.99

$

In Stock, only 4 left!

Gravely 21536400

Air Filter (992146, 147)

Note: (992146, 147)

$24.99

$

In Stock, Qty 20+

25

Gravely 21537000

Element, Outer Primary (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$28.99

$

In Stock, Qty 20+

Gravely 21536300

Element, Pre-Cleaner (992146, 147)

Note: (992146, 147)

$6.99

$

In Stock, Qty 20+

26

Gravely 21535800

Oil Filter (992148, 149, 151, 153)

(Superseded to 49065-0724) 

Note: (992148, 149, 151, 153)

$18.99

$

In Stock, Qty 20+

Gravely 21380000

Oil Filter (992152, 157, 159)

(Superseded to 21535800) 

Note: (992152, 157, 159)

$18.99

$

In Stock, Qty 20+

Gravely 21397200

Oil Filter (992146, 147, 150, 154, 155)

(Superseded to 20715100) 

Note: (992146, 147, 150, 154, 155)

$21.99

$

In Stock, Qty 20+

27

Gravely 21536800

Hose, Air Intake (992150, 154)

Note: (992150, 154)

$26.99

$

Usually ships in 4-12 days

28

Gravely 21536100

Spark Plug (992148, 149, 151, 153)

Note: (992148, 149, 151, 153)

$3.99

$

In Stock, Qty 20+

Gravely 21538500

Spark Plug (992152, 157, 159)

Note: (992152, 157, 159)

$3.99

$

In Stock, Qty 20+

Gravely 21536800

Spark Plug (992150, 154, 155)

Note: (992150, 154, 155)

$26.99

$

Usually ships in 4-12 days

Gravely 21525900

Spark Plug (992146, 147)

(Superseded to 21541700) 

Note: (992146, 147)

$3.99

$

Usually ships in 4-12 days

29

Gravely 21410800

Fuel Filter (992148, 149, 151, 153)

(Superseded to 21541500) 

Note: (992148, 149, 151, 153)

$8.99

$

In Stock, Qty 20+

Gravely 21541800

Fuel Filter (992152, 157, 159)

Note: (992152, 157, 159)

$27.99

$

Usually ships in 4-12 days

Gravely 21539500

Fuel Filter (992146, 147, 150, 154, 155)

Note: (992146, 147, 150, 154, 155)

$12.99

$

In Stock, Qty 20+

30

Gravely 06308600

Washer, Lock .31 x .078

(Superseded to 06300119) 

$1.49

$

In Stock, Qty 20+

31

Gravely 06602200

Key, Square .25 x 1 x 0.25 (992146, 147)

Note: (992146, 147)

$3.99

$

In Stock, Qty 17

32

Gravely 06443600

Washer, Flat Steel .469 x 2 x .25 (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

(Superseded to 06401111) 

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$7.99

$

In Stock, Qty 20+

33

Gravely 08905500

Bushing, .407 x .625 x .813 (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157, 159)

$14.99

$

In Stock, only 2 left!

34

Gravely 06500018

Nut, Locking, Top M8-1.25

(Superseded to 06500919) 

$2.49

$

In Stock, Qty 5

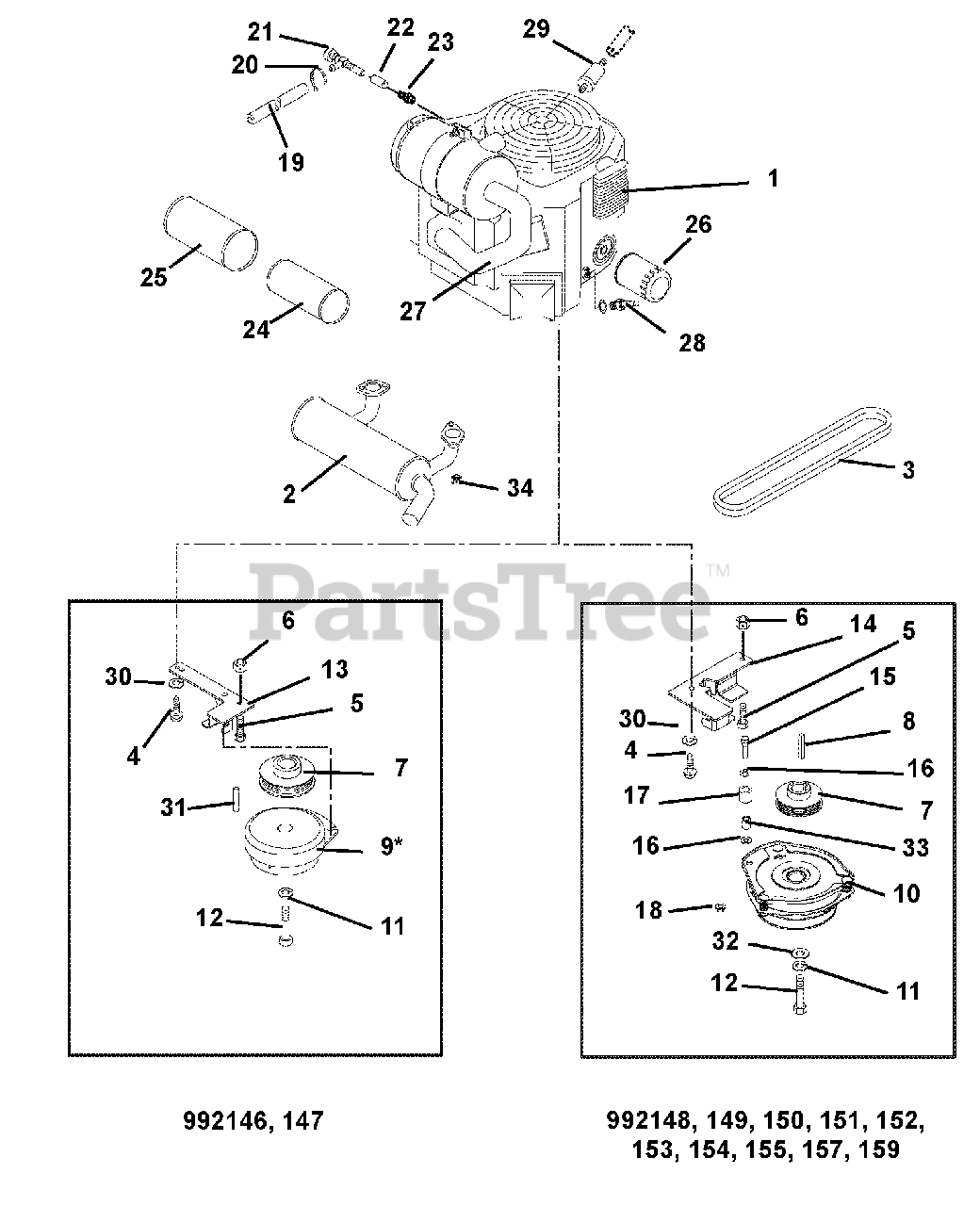

992146 (PM 252M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kohler (SN: 000401 & Above) Engine And Clutch Parts Diagram

Engine And Clutch Parts Diagram
