992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 020000 - 029999) Frame And Subframe Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

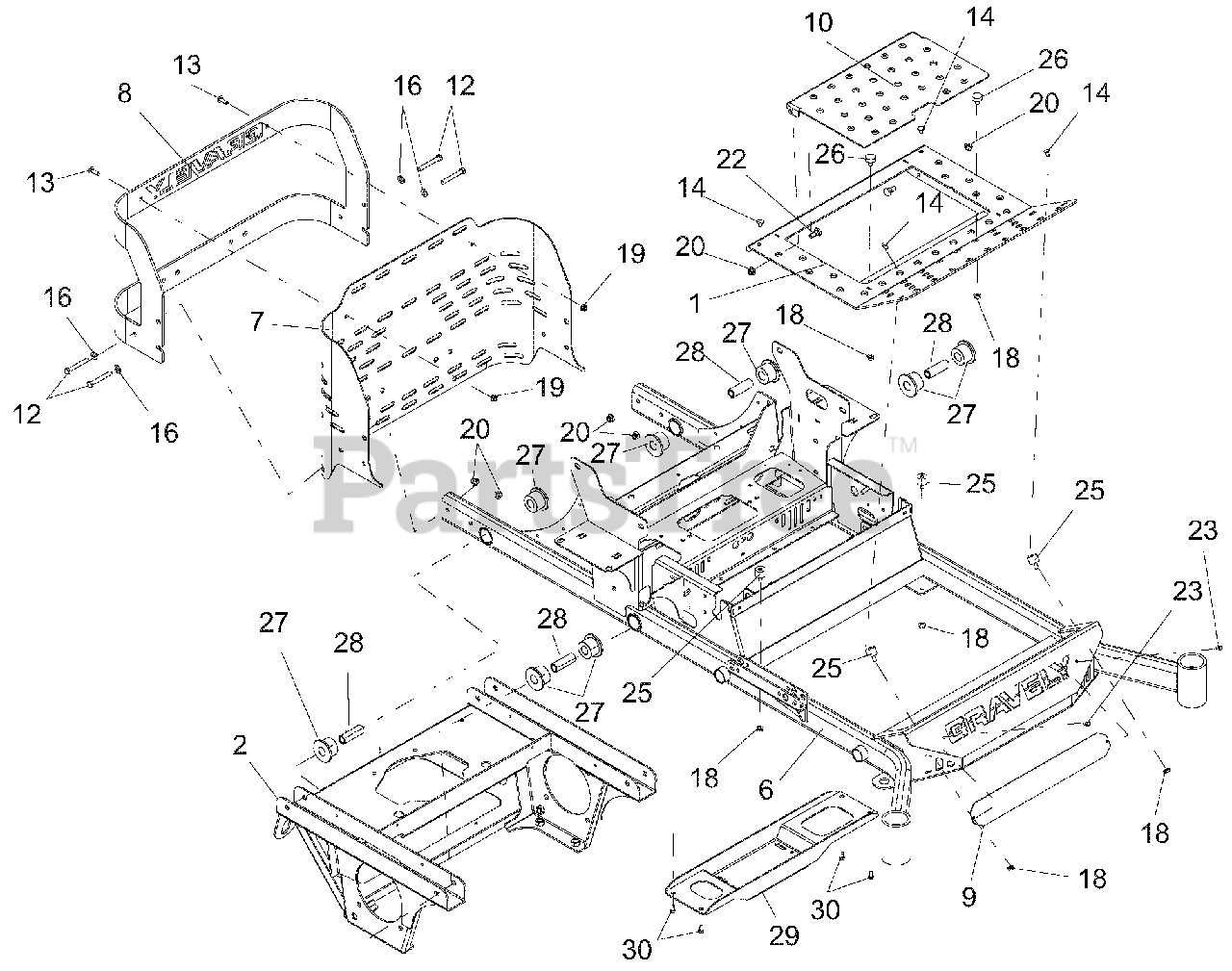

Frame And Subframe Parts Diagram

  • Title

1

Gravely 04412353

WLDMT, ISOLATED FOOT PLATE

$

$

Not available

2

Gravely 03855553

PT200/400 AXLE/ENG FRM WMT-RED

$647.99

$

Usually ships in 4-12 days

0

3

Gravely 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

$19.99

$

In Stock, only 1 left!

0

6

Gravely 04364453

52-66"PT400 MAIN FRAME WMT-RED
(Superseded to 59219800)

Note: (992237)

$1378.99

$

Usually ships in 4-12 days

0

Gravely 04369653

72" PT400 MAIN FRAME WLDMT-RED
(Superseded to 59217900)

Note: (992243)

$1792.99

$

Usually ships in 4-12 days

0

7

Gravely 04386351

REAR BUMPER FINGER GUARD -BLK

$174.99

$

Usually ships in 4-12 days

0

8

Gravely 04386453

PT400 REAR BUMPER -RED

$

$

Not available

9

Gravely 04386551

BUMPER LOGO BACKING PLATE -BLK

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 04412253

PANEL, INSPECTION

$

$

Not available

12

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

13

Gravely 06200007

BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$3.49

$

In Stock, only 2 left!

0

14

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$3.99

$

In Stock, Qty 14

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$4.99

$

In Stock, Qty 17

0

23

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07500214

BUMPER,STUD MNTD W/FEMALE INSR

$21.99

$

In Stock, Qty 13

0

26

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

27

Gravely 05500924

BSHG-FLG .75X1.51X1.13X2.0 URE

$12.99

$

Usually ships in 4-12 days

0

28

Gravely 03985600

BSHG-SLV .50X.75X2.23

$10.99

$

Usually ships in 4-12 days

0

29

Gravely 04420553

PT400 GAS BATTERY TRAY - RED

$96.99

$

Usually ships in 4-12 days

0

30

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0
