992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 020000 - 029999) Fuel System Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

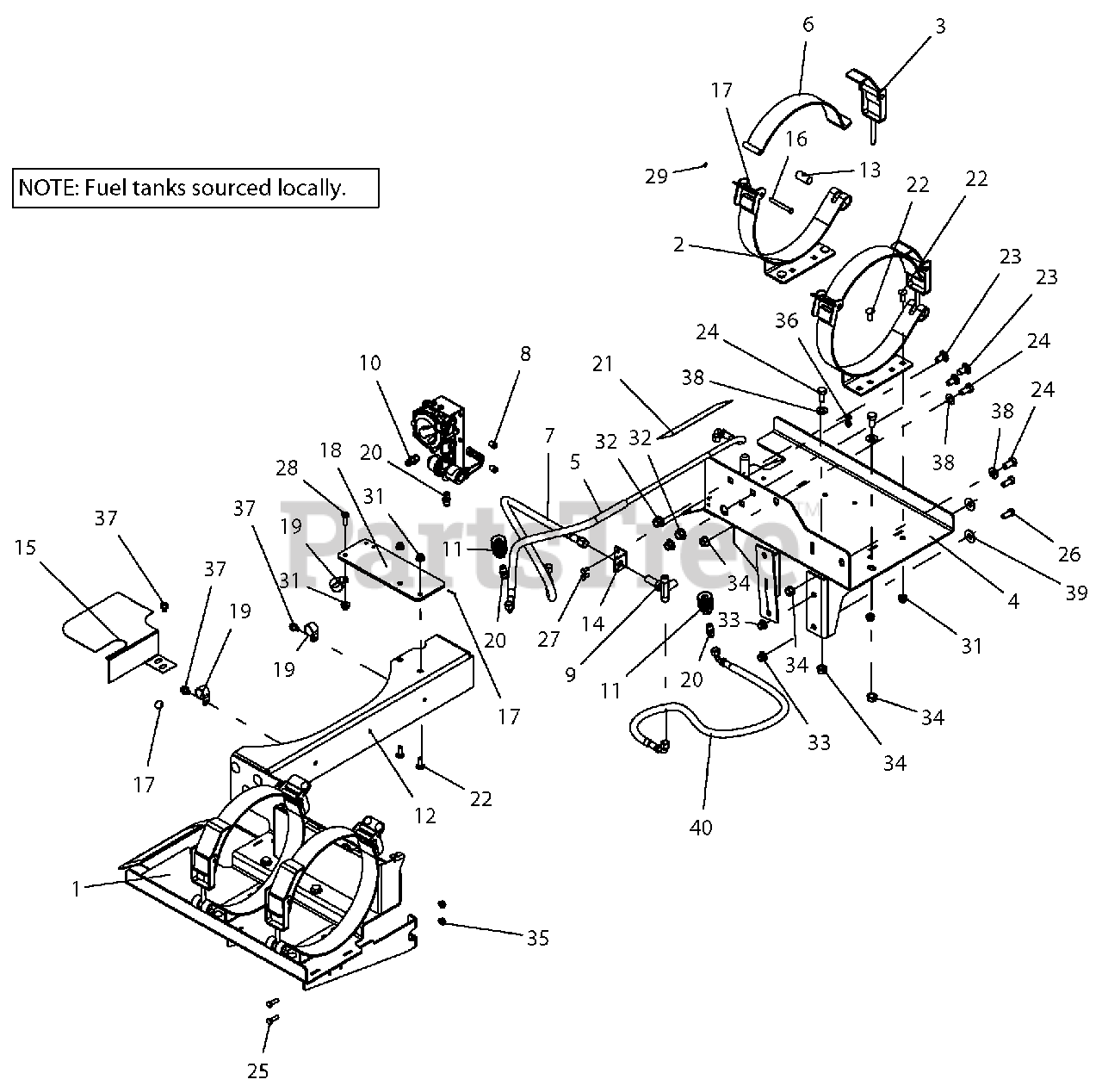

Fuel System Parts Diagram

  • Title

1

Gravely 04521853

WLDMT, TANK -LH LP
(Superseded to 59222600)

$

$

Not available

2

Gravely 00978700

WLDMT, CLAMP LP TANK

$

$

Not available

3

Gravely 00979000

ASM, LP TANK HANDLE CLAMP

$158.99

$

In Stock, Qty 6

0

4

Gravely 04521753

WLDMT, LP TANK MOUNTING - LH-BLACK
(Superseded to 59222500)

$

$

Not available

5

Gravely 04539000

HOSE, LPG SS25UL-6-4-6-45"

$164.99

$

Usually ships in 4-12 days

0

6

Gravely 04546900

WLDMT, UPPER LP TANK CLAMP

$

$

Not available

7

Gravely 04575800

HOSE, LPG SS25UL 6-4-6-30.00

$47.99

$

Usually ships in 4-12 days

0

8

Gravely 00150900

PLUG, PIPE 1/4 NPT

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 03877900

VALVE, SHERWOOD T PV3866 LPG

$287.99

$

Usually ships in 4-12 days

0

10

Gravely 03878100

FTG, BARB 1/2HOSE-3/8MNPT

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 04215300

FTG, LPG TANK COUPLER -LH THRD

$91.99

$

Usually ships in 4-12 days

0

12

Gravely 04523251

CROSS MEMBER, TANK MOUNTS - LP

$

$

Not available

13

Gravely 04525500

PIVOT, LP CLAMP HANDLE

$46.99

$

In Stock, Qty 8

0

14

Gravely 04529600

BRKT, TEE VALVE- MOUNTING

$

$

Not available

15

Gravely 04540551

GUARD, LP-MUFFLER-BLACK

$13.99

$

Usually ships in 4-12 days

0

16

Gravely 04546800

PIN, LP CLAMP

$10.99

$

Usually ships in 4-12 days

0

17

Gravely 04556100

MAGNET, .75X.060, LP CLAMP

$10.99

$

Usually ships in 4-12 days

0

18

Gravely 04576051

PLATE, REGULATOR MOUNT, EG

$

$

Not available

19

Gravely 06917900

CLAMP, CUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

20

Gravely 07001711

FTG, ADPTR 1/4MNPT X 5/8MJIC

$

$

Not available

21

Gravely 07700103

DECAL, HORZ. MOWER TANKS ONLY

$

$

Not available

22

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

23

Gravely 06224600

BLT-RDHDSQNK .50-13X1.00 G5 Y
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

24

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

25

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 10

0

26

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

27

Gravely 05900338

BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

31

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$6.49

$

In Stock, only 1 left!

0

34

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 15

0

38

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 1 left!

0

39

Gravely 06441000

WSHR-FL-STL..50X1.25X.083 YWZ
(Superseded to 06401202)

$3.49

$

In Stock, only 3 left!

0

40

Gravely 04539200

HOSE, LPG SS25UL 6-4-6-45"

$94.99

$

Usually ships in 4-12 days

0
