992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 002499) Belt Covers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

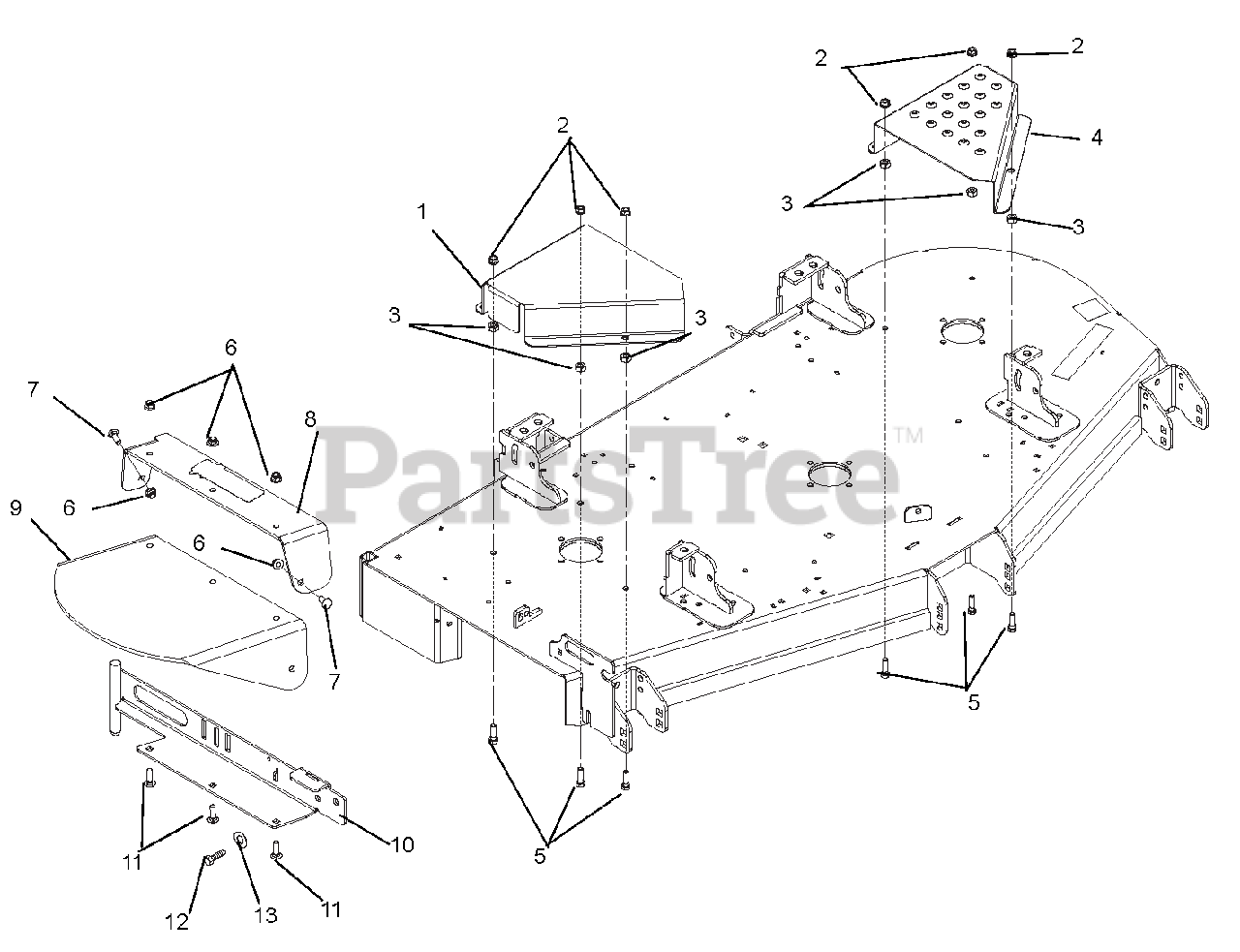

Belt Covers Parts Diagram

  • Title

1

Gravely 04099951

GUARD, RH PT200 CE BELT

$

$

Not available

2

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 04100051

GUARD, LH PT200 CE BELT

$

$

Not available

5

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$133.99

$

In Stock, only 1 left!

0

9

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$97.99

$

In Stock, only 3 left!

0

10

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

$138.99

$

In Stock, only 1 left!

0

11

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$3.49

$

In Stock, only 2 left!

0

13

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0
