992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 002499) Frame, Engine and Subframe Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

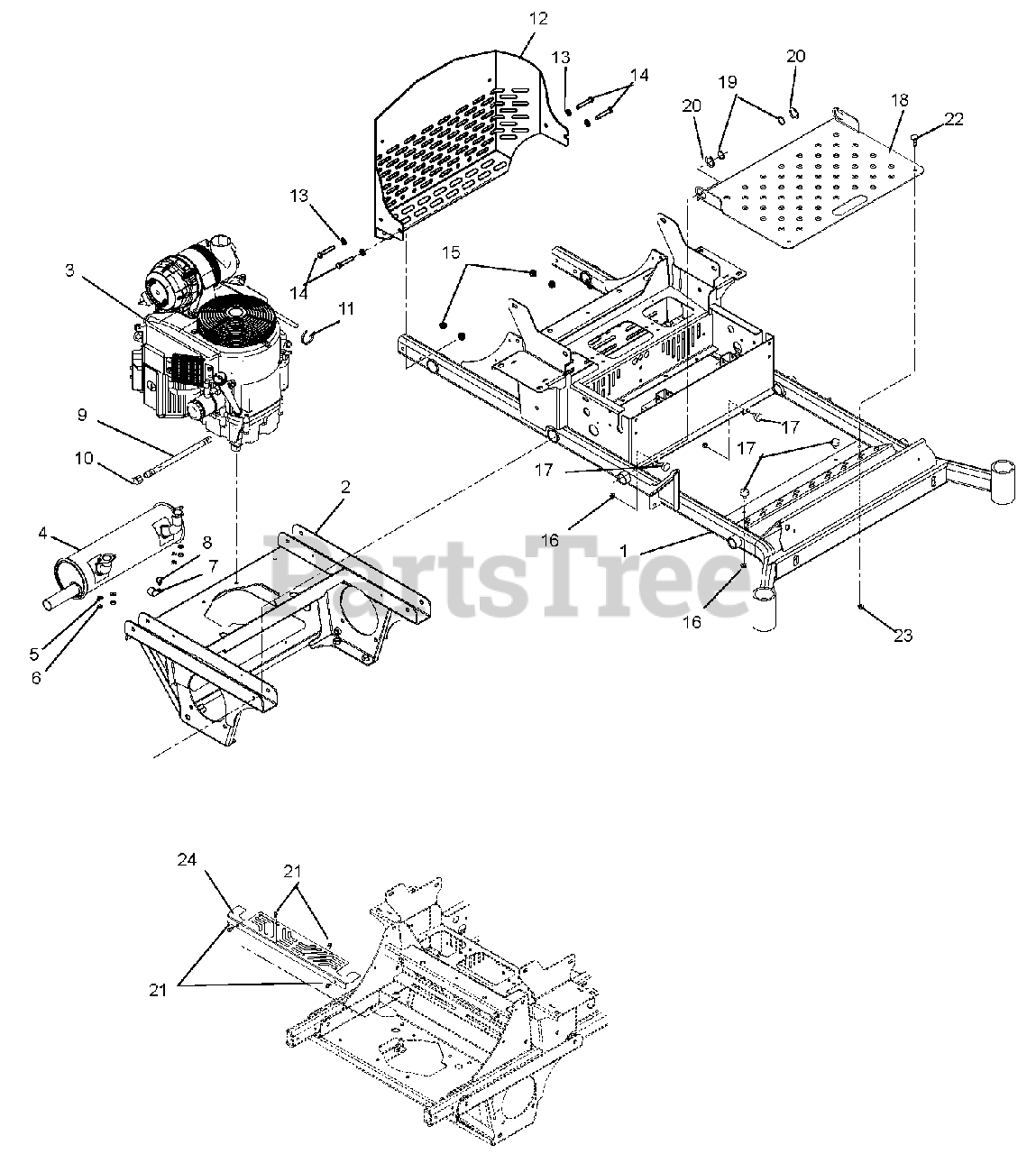

Frame, Engine and Subframe Parts Diagram

  • Title

1

Gravely 03880053

Weldment, PT200 CE Frame

$

$

Not available

2

Gravely 03855553

Weldment, 200PT Axle/Engine Frame

$597.99

$

Usually ships in 4-12 days

0

3

Gravely 08200431

Engine, Kawasaki FX730 (26HP)

Note: (26HP)

$

$

Not available

4

Gravely 03989000

Muffler, Kawasaki Fixed 24/26HP

$168.99

$

In Stock, only 2 left!

0

5

Gravely 06308600

Washer, Lock .31 x .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06500018

Nut, Locking Top M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

7

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 07412900

Screw-TAP .38-16 x .50 Hex Washer Head TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

9

Gravely 04058500

Hose,Hydraulic .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

10

Gravely 03873200

Pipe Cap 3/8 NPT Female

$12.99

$

Usually ships in 4-12 days

0

11

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

12

Gravely 04072653

Bumper, CE Rear

$

$

Not available

13

Gravely 06436200

Washer, Flat Steel.406 x .812 x .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05962900

Bolt-Hex .38-16 x 2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06545500

Nut, Locking Nylon-Flange .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

18

Gravely 03862353

Inspection Panel

$

$

Not available

19

Gravely 05707300

Ring, Retaining, External 1.00 x .078

$2.99

$

In Stock, only 2 left!

0

20

Gravely 06436300

Washer, Flat-Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 14

0

21

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

23

Gravely 06545400

Nut, Locking-Nylon-Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 8

0

24

Gravely 04073253

Guard, CE Rear Access

$

$

Not available
