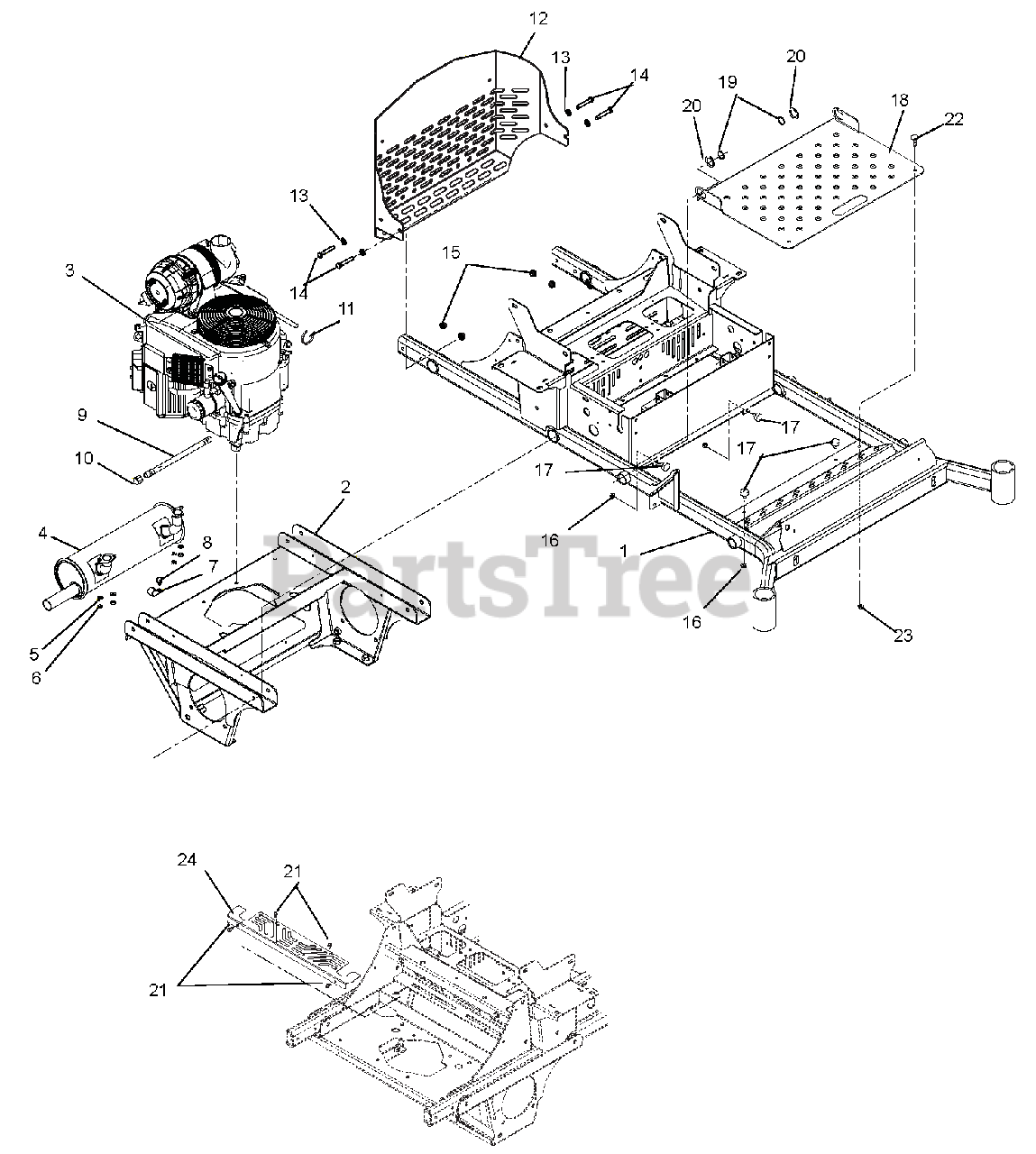

992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 002499) Frame, Engine and Subframe Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

Frame, Engine and Subframe Parts Diagram

  • Title

1

Gravely 03880053

WMT, PT200 CE FRAME

$

$

Not available

2

Gravely 03855553

PT200/400 AXLE/ENG FRM WMT-RED

$647.99

$

Usually ships in 4-12 days

0

3

Gravely 08200431

ENGINE, KAWASAKI FX730 (26HP)

Note: (26HP)

$

$

Not available

4

Gravely 03989000

MUFFLER, KAWASAKI FX 24/26HP

$192.99

$

Usually ships in 4-12 days

0

5

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.99

$

In Stock, Qty 11

0

7

Gravely 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 04058500

HOSE,HYD .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

In Stock, only 2 left!

0

11

Gravely 07517300

CABLE TIE LG 5-1/2

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 04072653

BUMPER, CE REAR

$

$

Not available

13

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

15

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 3 left!

0

18

Gravely 03862353

INSPECTION PANEL - RED

$

$

Not available

19

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.99

$

In Stock, only 2 left!

0

20

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 04073253

GUARD, CE REAR ACCESS

$

$

Not available
