992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 002499) Tire Assembly Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

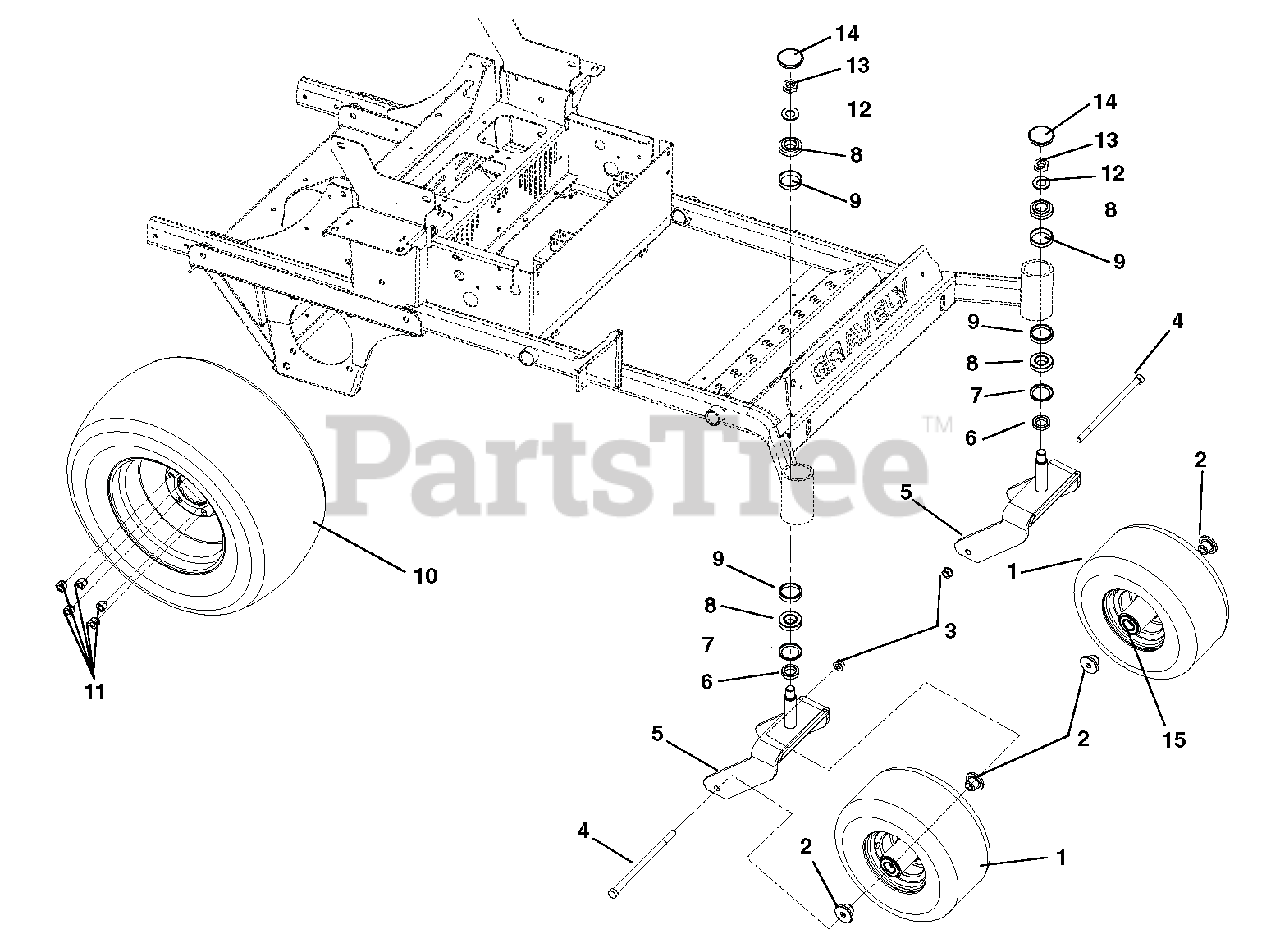

Tire Assembly Parts Diagram

  • Title

1

Gravely 07100212

TIRE/WHEEL ASSY, 15X6.00-6
(Superseded to 59219000)

$197.99

$

In Stock, only 4 left!

0

2

Gravely 07100236

TIRE, 13X6.50-6
(Superseded to 59103400)

$197.99

$

In Stock, only 1 left!

0

3

Gravely 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

4

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

6

Gravely 03924453

CASTER FORK WMT - RED

$184.99

$

In Stock, only 2 left!

0

7

Gravely 03760300

SPCR, 1.258ID X 1.750OD X.550

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, Qty 17

0

9

Gravely 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 18

0

10

Gravely 05404600

BRG-CUP 2.328X.465

$15.99

$

In Stock, Qty 13

0

11

Gravely 07100810

TIRE/WHEEL ASSM, 23X10-12
(Superseded to 07101116)

$319.99

$

Usually ships in 4-12 days

0

12

Gravely 07100210

TIRE, 23X10.00-12
(Superseded to 07101043)

$205.99

$

Usually ships in 4-12 days

0

13

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 8

0

15

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 9

0

16

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, Qty 5

0

17

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$25.99

$

In Stock, Qty 20+

0
