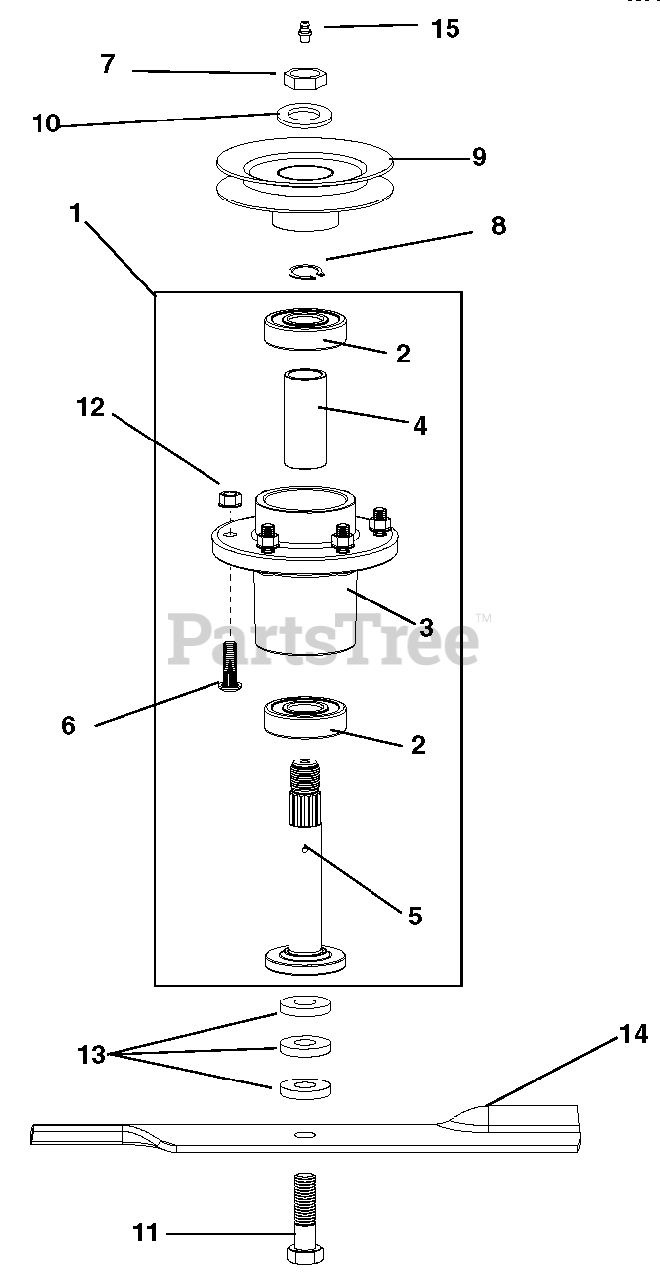

994600 (GSRKW2352S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Spindle Assembly Parts Diagram

Surfer Walk-Behind Mower

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00200262

Spindle Assembly (Includes 2, 3, 4, 5, & 15)

Note: (Includes 2, 3, 4, 5, & 15)

$250.99

$

In Stock, only 1 left!

0

2

Gravely 00200046

Bearing, 6305LLC

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 00200042

Casting, Spindle W/STUDS

$87.99

$

Usually ships in 4-12 days

0

4

Gravely 00200044

Spacer, 1.250 x 1.000 x 2.780

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 00200196

Shaft, Spindle .75-16

$

$

Not available

6

Gravely 00200045

Bolt, .38-16 x 1.25 Round Head Square Neck

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 00964024

Nut, 3/4-16 Crown Lock
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

8

Gravely 00200263

Ring, Retainer

$6.99

$

In Stock, only 1 left!

0

9

Gravely N/A

Pulley, Cutter Housing - Refer to Deck Assembly on page 22 or page 24

$

$

Currently unavailable

10

Gravely 03399703

Washer, .75 x 1.312 x .120

$3.99

$

In Stock, Qty 11

0

11

Gravely 00967348

Bolt, 5/8-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

12

Gravely 00960502

Nut, .38-16 Standard Hex Grade 5

$

$

Not available

13

Gravely D18055

Washer, .630 x 1.50 x .250 Flat
(Superseded to 06401033)

$6.99

$

In Stock, only 3 left!

0

14

Gravely GDM10230

Blade, 16.500 x .80 Lift (48-Inch Decks)

Note: (48-Inch Decks)

$

$

Not available

Gravely GDU10231

Blade, 18.000 x .80 Lift (52-inch Decks)

Note: (52-inch Decks)

$27.99

$

In Stock, Qty 20+

0

15

Gravely 00959995

Zerk, Grease S/O

$3.49

$

Usually ships in 4-12 days

0
