996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 020000 & Above) Front Brake Disc Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

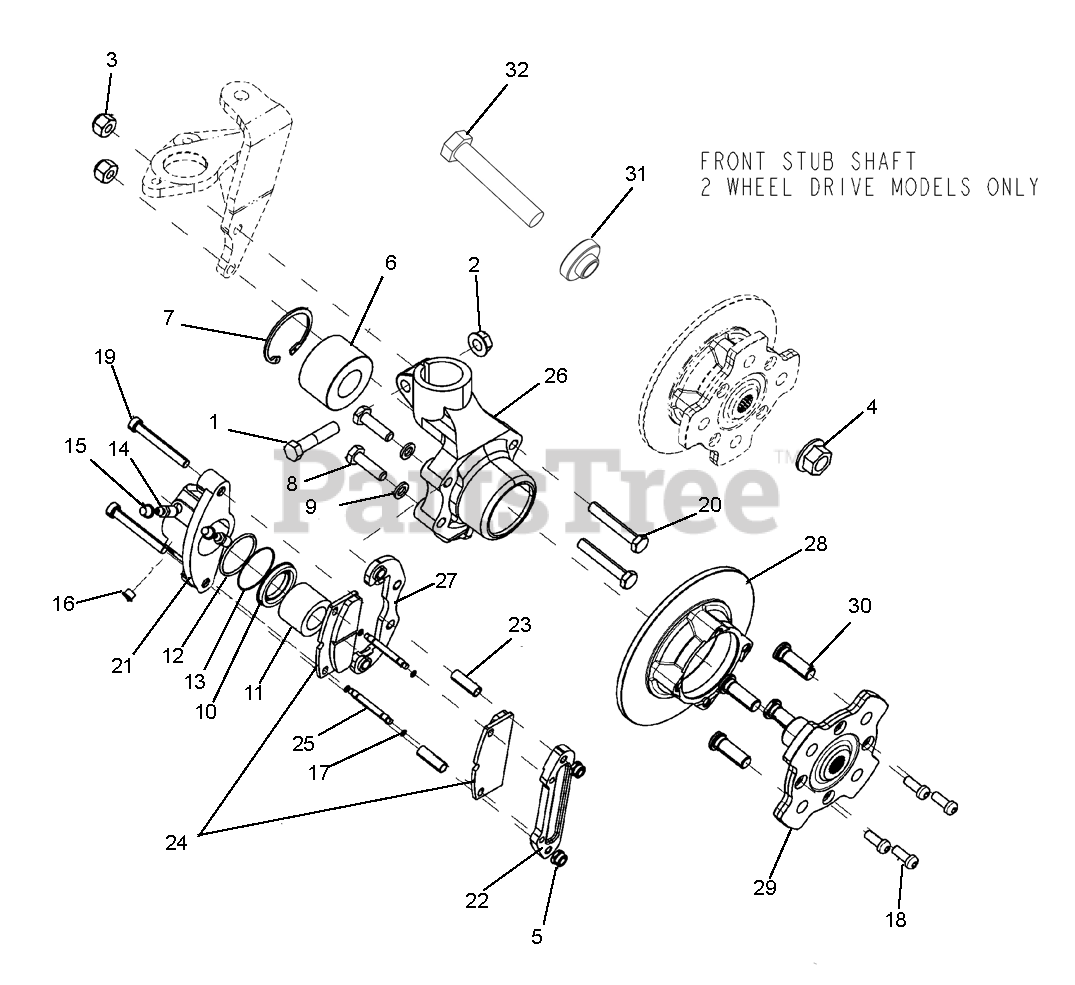

Front Brake Disc Parts Diagram

  • Title

--

Gravely T815-143C

RH DISC BRAKE ASM 172MM W/JNT

Note: (Does Not Include 3, 4 or 5)

$

$

Not available

--

Gravely T815-144C

LH DISC BRAKE ASM 172MM W/JNT

Note: (Does Not Include 3, 4 or 5)

$

$

Not available

1

Gravely 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

3

Gravely T803-280C

NUT HEX NYLOCK M10X1.5 PLT

$

$

Not available

4

Gravely T803-332C

NUT HEX FLG T LCK M16X1.5 PLT

$

$

Not available

5

Gravely TD2041

CMEX NUT M8

$

$

Not available

6

Gravely TF763

CMEX BALL BEARING 60,05X30X37

$104.99

$

Usually ships in 4-12 days

0

7

Gravely TF765

CMEX SEEGER

$

$

Not available

8

Gravely TF772

CMEX SCREW M 10 X 1.25 X 35

$

$

Not available

9

Gravely TF773

CMEX GROWER 10

$

$

Not available

10

Gravely TF824

CMEX DUST BOOT RING

$

$

Not available

11

Gravely TF822

CMEX CAP

$

$

Not available

12

Gravely TF823

CMEX SEALING RING

$

$

Not available

13

Gravely TF820

CMEX RUBBER DUST BOOT

$

$

Not available

14

Gravely TF827

CMEX BLEEDER SCREW

$

$

Not available

15

Gravely TF828

CMX BOOT

$

$

Not available

16

Gravely TF829

CMEX PLUG

$

$

Not available

17

Gravely TF832

CMEX DUST BOOT RING

$

$

Not available

18

Gravely TF845

CMEX SCREW M8 X 20

$

$

Not available

19

Gravely TF774

CMEX SCREW M8 X 65

$

$

Not available

20

Gravely TF799

CMEX HHS M10X1.5X50 PLT

$

$

Not available

21

Gravely TF813

CMEX CALIPER BODY

$

$

Not available

22

Gravely TF815

CMEX REACTION BRACKET

$

$

Not available

23

Gravely TF818

CMEX SPACER

$

$

Not available

24

Gravely TF1004

BRAKE PAD KIT (COMP. 2 WHEELS)

Note: (COMP. 2 WHEELS)

$106.99

$

Usually ships in 4-12 days

0

25

Gravely TF826

CMEX PIN

$

$

Not available

26

Gravely TF840

CMEX WHEEL PIVOT

$

$

Not available

27

Gravely TF834

CMEX CALIPER CLAMPING PLATE

$

$

Not available

28

Gravely TF843

CMEX DISC BRAKE

$

$

Not available

29

Gravely TF181

CMEX FLANGE WITH STUDS

$

$

Not available

30

Gravely TF909

CMEX STUD

$

$

Not available

31

Gravely 03959651

SPCR, STUB BOLT

$

$

Not available

32

Gravely 05984400

BLT-HEX M16-1.5 X 90 8.8 YWZC

$

$

Not available
