996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 020000 & Above) Fuel Tank Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

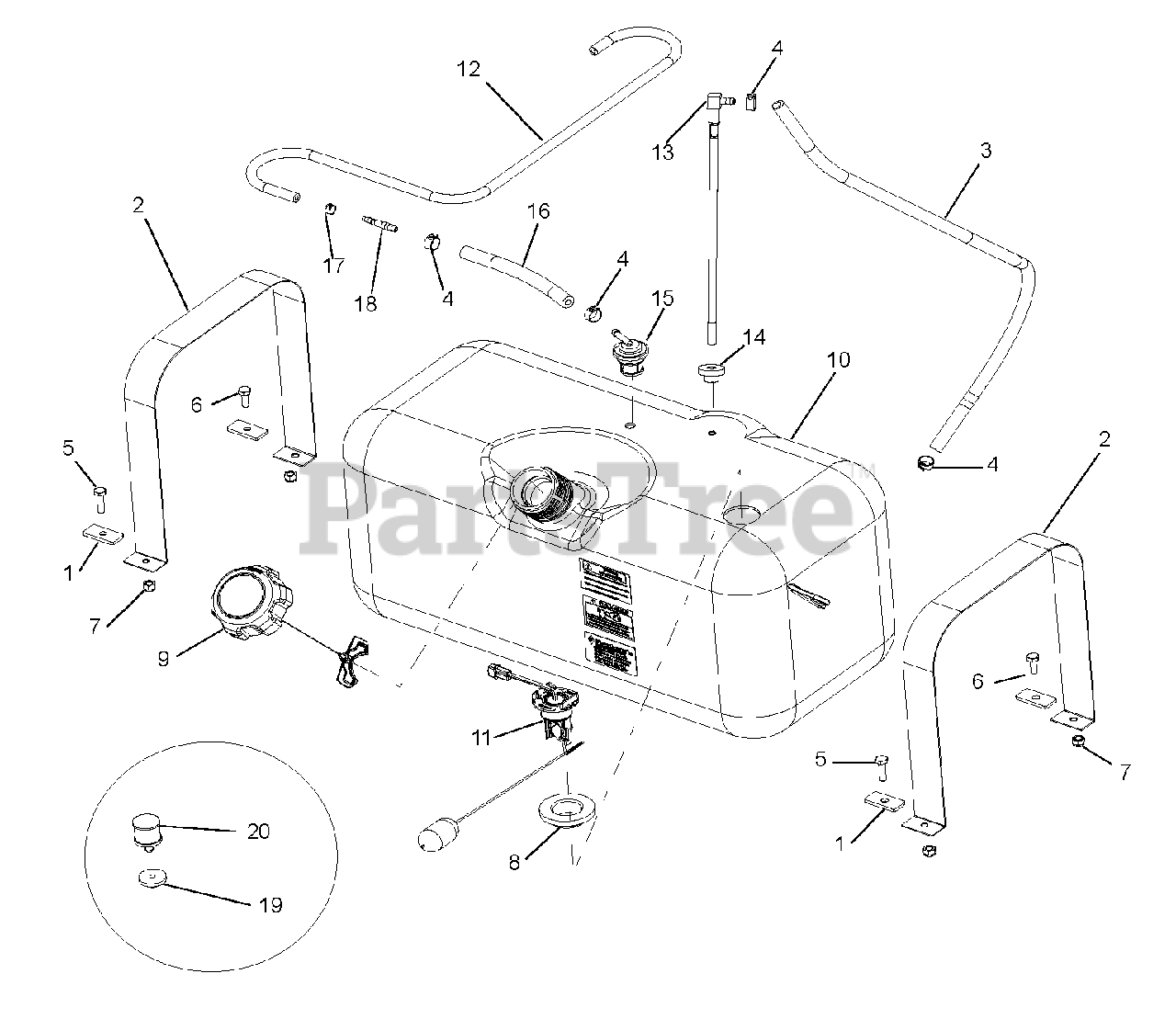

Fuel Tank Parts Diagram

  • Title

1

Gravely T700-017D

GAS TANK MOUNT SPACER

$

$

Not available

2

Gravely T700-175D

GAS TANK STRAP, WIDE

$

$

Not available

3

Gravely T700-213D

FUEL LINE 10" ST MODEL

$

$

Not available

4

Gravely 03278800

CLAMP, FUEL LINE, 1/4"

$1.49

$

In Stock, Qty 7

0

5

Gravely 05946800

BOLT, HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

6

Gravely 05947700

BOLT, HEX .25-20 X 1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

7

Gravely 06531000

NUT, HEX NYLOCK .25-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

8

Gravely 04240300

GROMMET, FUEL SENDER

$

$

Not available

9

Gravely 04589200

CAP, 2.25" ONE-WAY VENT FUEL
(Superseded to 09190200)

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 04434100

FUEL TANK, EPA

$

$

Not available

11

Gravely 04053801

SENDER, FUEL LEVEL

$

$

Not available

12

Gravely 03375900

HOSE, .188 LOW PERM 34"

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 21551100

FUEL, TANK PICK-UP LINE

$52.99

$

Usually ships in 4-12 days

0

14

Gravely 00387300

GROMMET, DAPCO VITON #12240

$7.99

$

In Stock, Qty 11

0

15

Gravely 21552800

IN-LINE CHECK VALVE, GROMMET FUEL TANK VENT (SN 20,000 +)

Note: (SN 20,000 +)

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS, 6" (SN 20,000 +)

Note: (SN 20,000 +)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 04097700

CLAMP, FUEL LINE, 3/16"

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 04580000

ADAPTOR, HOSE 3/16" TO 1/4" (SN 20,000 +)

Note: (SN 20,000 +)

$

$

Not available

19

Gravely 21551000

GROMMET, FUEL TANK (SN 10,000 – 19,999)

Note: (SN 10,000 – 19,999)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 21550900

SLOSH VALVE, FLAMBEAU 468885A (SN 10,000 – 19,999)

Note: (SN 10,000 – 19,999)

$38.99

$

Usually ships in 4-12 days

0
