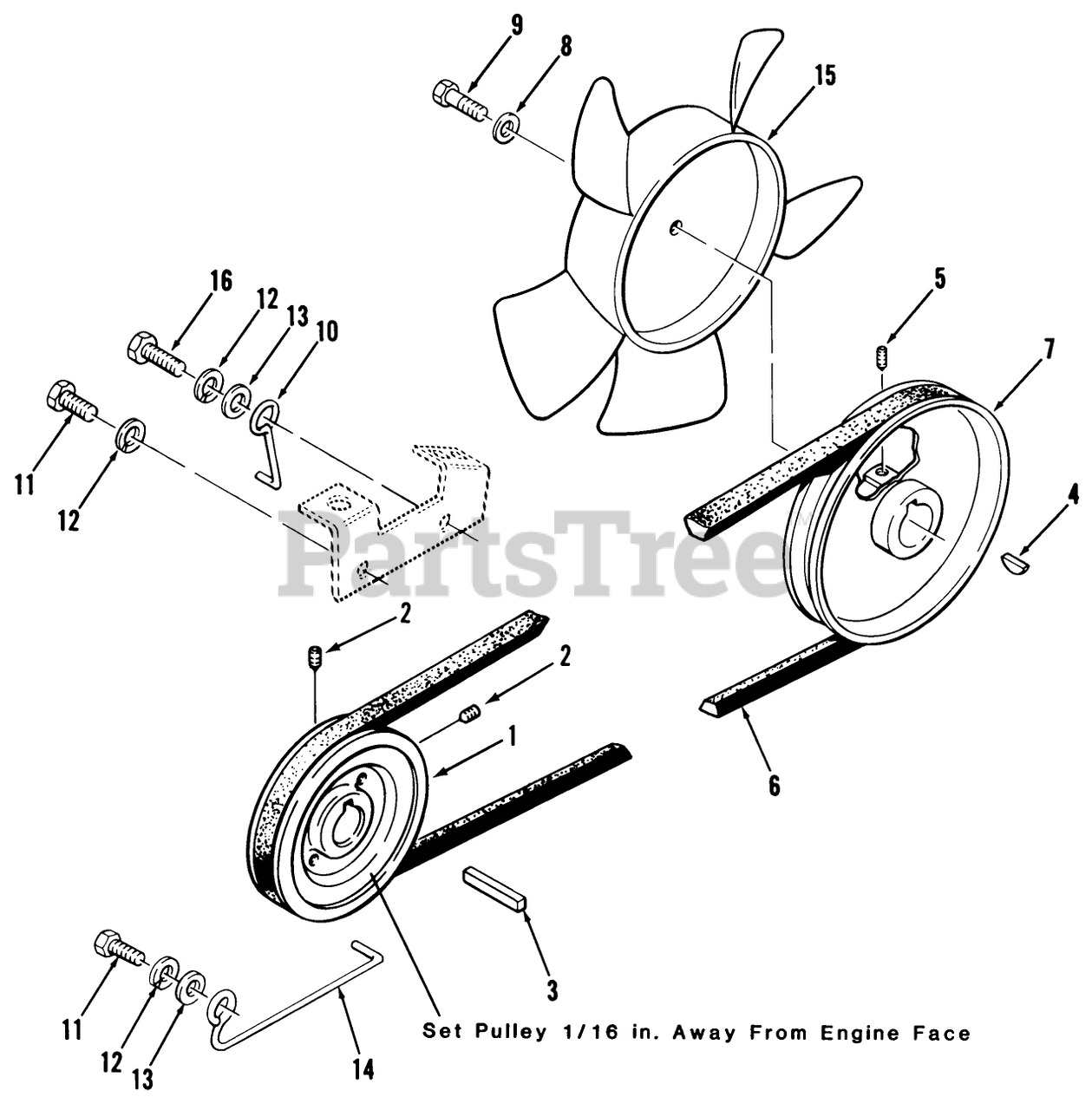

A1-18BE01 (GT-1800) - Toro Garden Tractor (1984) Drive Belt And Pulleys Parts Diagram

Garden Tractor

Drive Belt And Pulleys Parts Diagram

  • Title

1

Toro 110139

DISCONTINUED

$

$

Not available

2

Toro 909862

See Supercession: 3246-2
(Superseded to 3246-2)

$0.99

$

In Stock, Qty 10

0

3

Toro 108922

KEY-SQUARE

$

$

Not available

4

Toro 937221

See Supercession: 3257-17
(Superseded to 3257-17)

$

$

Not available

5

Toro 909540

See Supercession: 3242-2
(Superseded to 3242-2)

$1.99

$

In Stock, only 2 left!

0

6

Toro 7473

V BELT

$59.99

$

In Stock, only 2 left!

0

6

Toro 107939

See Supercession: 93-9809
(Superseded to 93-9809)

$64.99

$

In Stock, only 3 left!

0

7

Toro 106165

PULLEY-TRANSMISSION

$162.99

$

Usually ships in 3-6 days

0

10

Toro 107640

DISCONTINUED
(Superseded to 110667)

$

$

Not available

11

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

12

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

13

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

14

Toro 109835

DISCONTINUED

$

$

Not available

16

Toro 908033

See Supercession: 110242
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

1

Toro 106813

PULLEY-ENGINE

$362.99

$

In Stock, only 1 left!

0

4

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

6

Toro 108502

V-BELT TRANS DRIVE

$76.99

$

Usually ships in 3-6 days

0

7

Toro 108316

PULLEY

$

$

Not available

8

Toro 103995

WASHER

$9.99

$

Usually ships in 3-6 days

0

9

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

14

Toro 107638

See Supercession: 110668
(Superseded to 110668)

$18.99

$

In Stock, only 1 left!

0

15

Toro 108393

NYLON FAN-L-CW

$45.99

$

In Stock, only 2 left!

0
