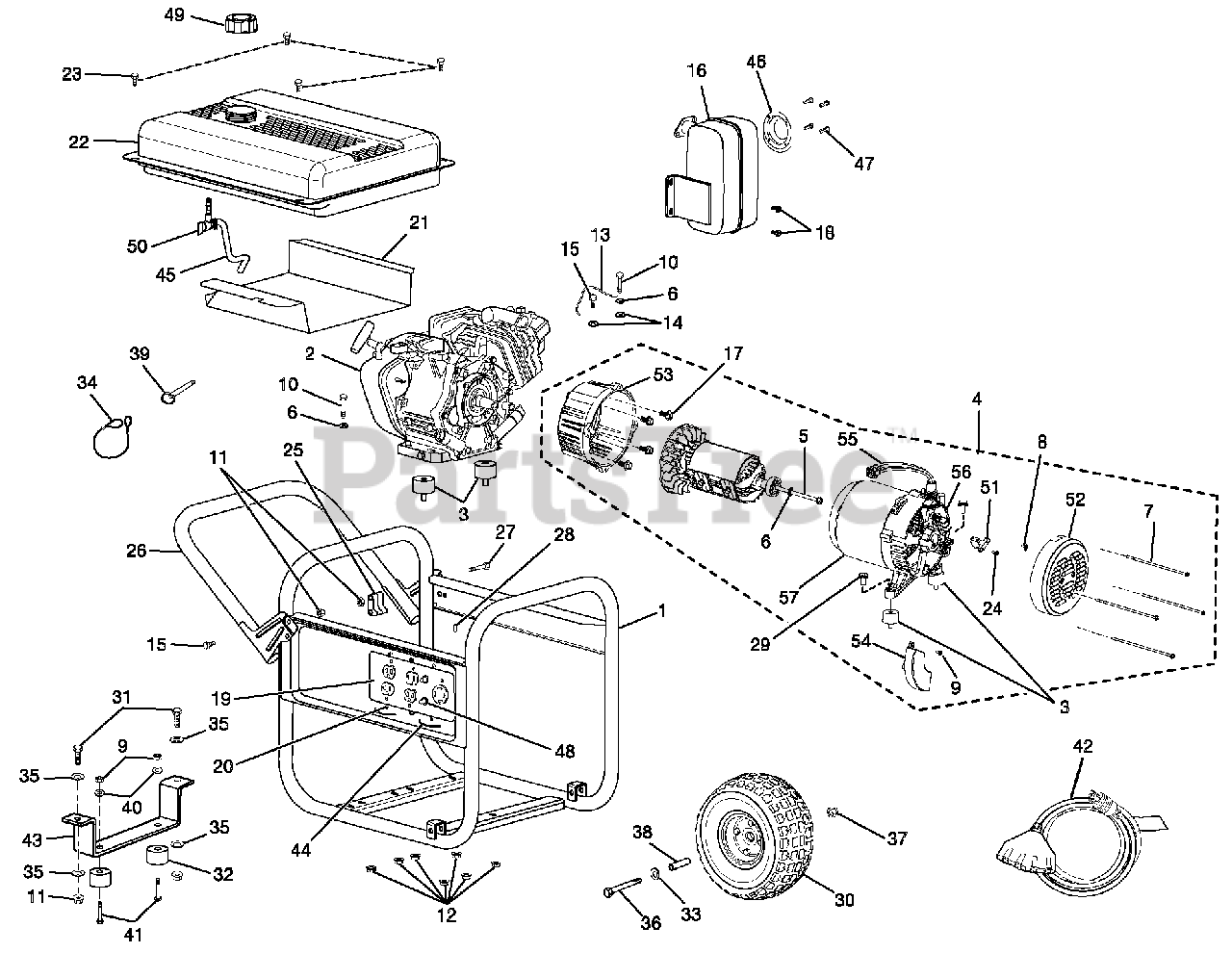

BM 10500 G - Black Max Generator General Assembly Parts Diagram

Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310220011

Frame Assembly

$

$

Currently unavailable

2

Engine (Subaru OHC)

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 310227016

Generator Head Assembly

Note: (Inc. Key Nos. 7, 9, 24, and 51-54)

$533.99

$

In Stock, only 1 left!

0

5

Homelite 661557009

Bolt (5/16-24 x 8.5 in., Hex Hd.)

$

$

Not available

6

Homelite 638678002

Lock Washer (5/16 in.)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660869006

Bolt (1/4-20 x 6 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 638703001

Ground Lug

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 661603001

Bolt, AVR Mounting

$

$

Not available

10

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in.)

$1.49

$

In Stock, only 3 left!

0

11

Homelite 678457004

Lock Nut (5/16-18)

$

$

Not available

12

Homelite 678145002

Flange Nut (5/16-18)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 290404001

Ground Wire Assembly

$

$

Not available

14

Homelite 638704001

Washer (5/16 in.) External Star

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 309322004

Muffler

$

$

Not available

17

Homelite 660596003

Bolt (3/8-16 x 3/4 in.)

$

$

Not available

18

Homelite 661557007

Bolt (5/16-24 x 5/8 in.)

$

$

Not available

19

Homelite 678674001

Wire Panel

$

$

Not available

20

Homelite 661305002

Screw (6-19 x 1/2 in.)

$

$

Not available

21

Homelite 638497004

Heat Shield

$

$

Not available

22

Homelite 310711031

Fuel Tank Assembly

$155.99

$

Usually ships in 3-7 days

0

23

Homelite 660597003

Screw (#10 x 1 in.)

$

$

Not available

24

Homelite 661603002

Bolt, Mounting Brush Assembly

$

$

Not available

25

Homelite 519789001

Handle Lock Bracket

$

$

Not available

26

Homelite 310224010

Handle Assembly

$20.99

$

Usually ships in 3-7 days

0

27

Homelite 660591004

Bolt (5/16-18 x 2-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 570364001

Rubber Cap

$

$

Not available

29

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in., Hex Hd.)

$1.49

$

In Stock, only 3 left!

0

30

Homelite 310223002

Wheel

$

$

Not available

31

Homelite 660599001

Bolt (5/16-18 x 1 in.)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 638706001

Rubber Foot

$10.99

$

Usually ships in 3-7 days

0

33

Homelite 638386003

Washer (3/8 in.)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 310715001

Lanyard

$

$

Not available

35

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in.)

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 678457003

Lock Nut (3/8-16)

$

$

Not available

38

Homelite 678672002

Spacer (.38 ID)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, Qty 5

0

40

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

41

Homelite 661503003

Bolt (1/4-20 x 1-1/2 in.)

$1.99

$

In Stock, only 4 left!

0

42

Homelite 290426001

Extension Cord (25 foot, 20 amp)

$97.99

$

Usually ships in 3-7 days

0

43

Homelite 638709001

Frame Support

$

$

Not available

44

Homelite 678655001

Cord Retainer

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 310725004

Fuel Line Assembly

$12.99

$

In Stock, only 1 left!

0

46

Homelite 638147003

Spark Arrester Screen

$

$

Not available

47

Homelite 661306001

Screw (8-32 x 3/8 in.)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 780350001

Circuit Breaker (20 amp)

$8.49

$

In Stock, only 1 left!

0

49

Homelite 519709001

Fuel Cap

$

$

Not available

50

Homelite 519711001

Fuel Shut Off Valve with Filter

$

$

Not available

51

Homelite 290441001

Brush Assembly Kit

$

$

Not available

52

Homelite 678296002

Brush Cover

$

$

Not available

53

Homelite 640331002

Adapter Housing

$37.99

$

Usually ships in 3-7 days

0

54

Homelite 290439004

Automatic Voltage Regulator (5000 Watt)
(Superseded to 290440006)

$

$

Not available

55

Homelite 290431006

Wiring Harness

$

$

Not available

56

Homelite 678289008

Bearing Support

$60.99

$

Usually ships in 3-7 days

0

57

Homelite 638545003

Generator Head Cover

$

$

Currently unavailable

Homelite 940678093

Data Label

Note: Not Shown

$

$

Currently unavailable

Homelite 940819002

Cord Warning Label

Note: Not Shown

$

$

Not available

Homelite 961030005

Caution/Danger Hang Tag

Note: Not Shown

$

$

Not available

Homelite 940707008

Large Danger Label

Note: Not Shown

$

$

Not available

Homelite 940974007

Risk of Fire Danger Label

Note: Not Shown

$

$

Not available

Homelite 940513005

Ground Label

Note: Not Shown

$

$

Not available

Homelite 940513008

Ground Warning Label

Note: Not Shown

$

$

Not available

Homelite 940680021

Hot Surface Label

Note: Not Shown

$

$

Not available

Homelite 940514005

Lock Pin Label
(Superseded to 940514001)

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 940705045

Logo Label

Note: Not Shown

$

$

Not available

Homelite 940708007

Engine Lubricant Label

Note: Not Shown

$

$

Not available

Homelite 940617031

Quick Start Label

Note: Not Shown

$

$

Not available

Homelite 940617032

Starting Label

Note: Not Shown

$

$

Not available

Homelite 900906013

Lubricant (SAE 10W30)
(Superseded to AC99G01)

Note: Not Shown

$

$

Not available

Homelite 987000626

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
