BM 25 TEC (090309033) - Black Max String Trimmer, Rev 01 (2019-01) Figure D Parts Diagram

String Trimmer, Rev 01

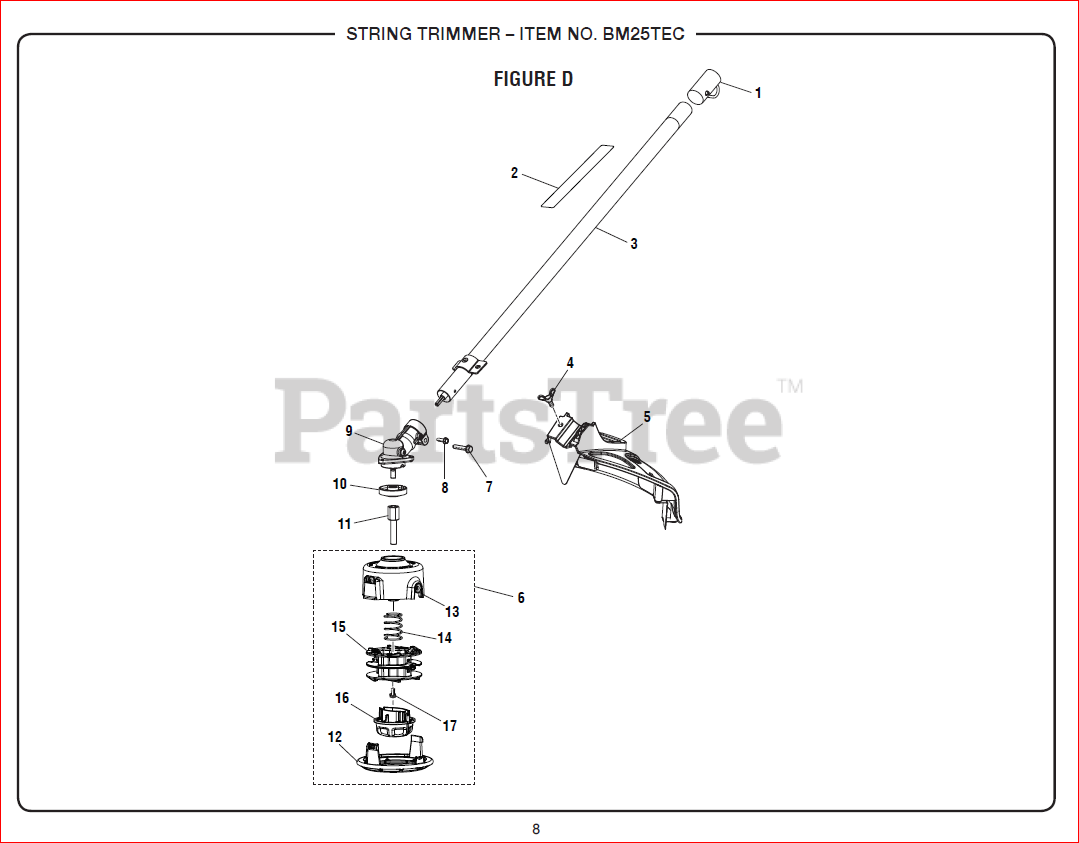

Figure D Parts Diagram

  • Title

1

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$2.49

$

In Stock, only 3 left!

0

2

Homelite 940657165

Warning Icon Label

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 308477031

Straight Shaft Assembly

$

$

Not available

4

Homelite 660886001

Screw (#1/4-20 x 1-1/4 in. Hex Washer Hd.)

$2.49

$

In Stock, only 4 left!

0

5

Homelite 308473006

Grass Deflector Assembly
(Superseded to 308473004)

$11.99

$

In Stock, only 1 left!

0

6

Homelite 308923015

Trimmer Head Assembly (.095)
(Superseded to 308923014)

Note: (Inc. Key Nos. 12-17)

$106.99

$

In Stock, Qty 5

0

7

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

8

Homelite 660736001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

9

Homelite 308210008

Gear Case Assembly
(Superseded to 308210001)

$

$

Not available

10

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$12.99

$

In Stock, only 1 left!

0

11

Homelite 678019004

Trimmer Head Shaft Adaptor

$5.99

$

Usually ships in 3-7 days

0

12

Homelite 518804003

Lower String Head Housing

$5.99

$

In Stock, only 2 left!

0

13

Homelite 518800005

Main Stringhead Housing
(Superseded to 308923015)

$106.99

$

In Stock, Qty 5

0

14

Homelite 678749001

Compression Spring

$2.49

$

In Stock, only 4 left!

0

15

Homelite 308924002

Spool w/ Line (.095)
(Superseded to 308924001)

$

$

Not available

16

Homelite 518803003

Bump Knob

$

$

Not available

17

Homelite 660649001

Screw (5/16 x 1/2 in., Left Hand)

$2.49

$

In Stock, only 2 left!

0
