BM 25 TEC (090333025) - Black Max String Trimmer, Rev 03 (2018-07) Figure B Parts Diagram

String Trimmer, Rev 03

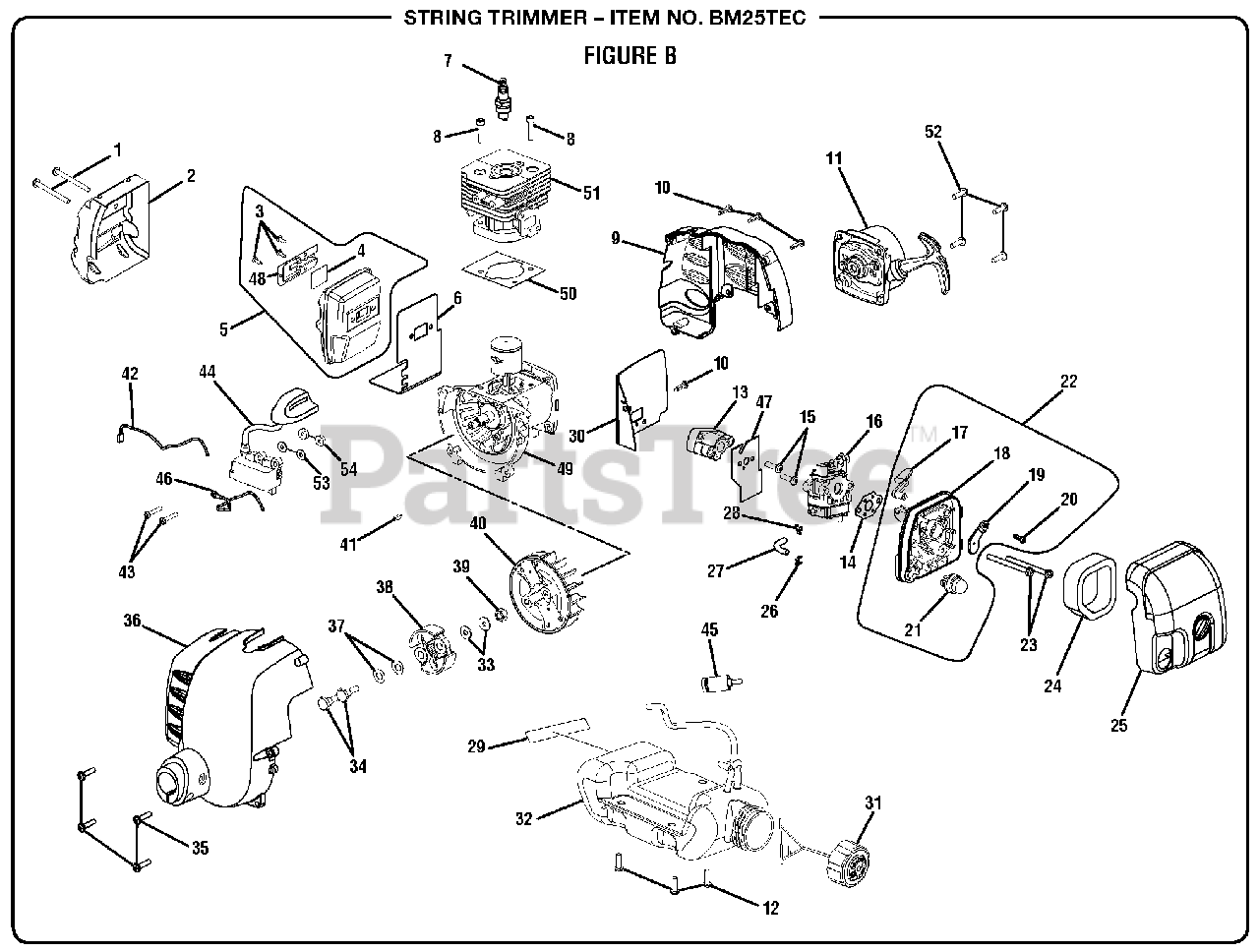

Figure B Parts Diagram

  • Title

1

Homelite 660347001

Screw (M5 x 50 mm, Torx Slotted Recessed Pan Hd.)

$1.49

$

In Stock, Qty 5

0

2

Homelite 638027002

Heat Shield

$

$

Not available

3

Homelite 660870001

Screw (6-20 x 1/4 in., T20 Torx Pan Hd. S.T.)
(Superseded to 984759001)

$

$

Not available

4

Homelite 638268001

Screen
(Superseded to 984753001)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 300748021

Muffler Assembly

Note: (Inc. Key Nos. 3-4 and 48)

$54.99

$

Usually ships in 3-7 days

0

6

Homelite 630002032

Muffler Gasket

$2.49

$

In Stock, only 2 left!

0

7

Homelite 870170001

Spark Plug (RCJ4Y)

$10.99

$

Usually ships in 3-7 days

0

8

Homelite 660342001

Screw (M5 x 22 mm, Soc. Hd.)

$1.49

$

In Stock, Qty 5

0

9

Engine Housing, Rear

$

$

Not available

10

Homelite 660466001

Screw (M4 x 16 mm, Torx Recessed Pan Hd.)

$1.49

$

In Stock, Qty 6

0

11

Homelite 310030002

Starter Recoil Assembly

$

$

Not available

12

Homelite 660354001

Screw (M5 x 16 mm, Torx Slotted)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 518329001

Heat Dam Insulator

$4.99

$

In Stock, only 1 left!

0

14

Homelite 900711003

Carburetor Gasket
(Superseded to 9071103)

$

$

Not available

15

Homelite 662210003

Screw (M5 x 31 mm Torx Slotted Recessed Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308480001

Carburetor Assembly

$

$

Not available

17

Homelite 590458001

Choke Lever
(Superseded to 5945801)

$

$

Not available

18

Homelite 518130001

Carburetor Plate

$2.49

$

In Stock, only 1 left!

0

19

Homelite 590946001

Choke Plate
(Superseded to 5994601)

$1.49

$

In Stock, only 2 left!

0

20

Homelite 660345001

Screw (M4 x 12 mm, Slotted Recessed Pan Hd.)
(Superseded to 983645005)

$1.49

$

In Stock, Qty 7

0

21

Homelite 300780002

Primer Assembly
(Superseded to 01183)

$

$

Not available

22

Homelite 308478004

Filter Housing Assembly

Note: (Inc. Key Nos. 17-21)

$6.49

$

In Stock, only 1 left!

0

23

Homelite 660346001

Screw (M5 x 60 mm, Slotted Recessed Pan Hd. Machine)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 560873001

Element
(Superseded to 5687301)

$

$

Not available

25

Air Box Cover Assembly

$

$

Not available

26

Homelite 690699001

Hose Clip
(Superseded to 6969901)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 570373002

Fuel Line (45 mm)

$1.49

$

In Stock, only 4 left!

0

28

Homelite 690700001

Hose Clip
(Superseded to 6970001)

$1.49

$

In Stock, Qty 5

0

29

Homelite 940654088

Combustion Warning Label

$1.49

$

In Stock, only 3 left!

0

30

Homelite 900711014

Insulator Gasket
(Superseded to 903279002)

$

$

Not available

31

Homelite 310816020

Fuel Cap Assembly

$4.49

$

Usually ships in 3-7 days

0

32

Homelite 308675063

Fuel Tank and Cap Assembly

Note: (Inc. Key Nos. 29 and 31)

$15.99

$

In Stock, only 2 left!

0

33

Homelite 690695001

Washer
(Superseded to 983788071)

$

$

Not available

34

Homelite 660353001

Clutch Screw

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 660344001

Screw (M5 x 20 mm Torx Slotted Recessed Pan Hd.)
(Superseded to 6634401)

$

$

Not available

36

Front Housing Assembly

$

$

Not available

37

Homelite 690696001

Curved Washer
(Superseded to 6969601)

$1.49

$

In Stock, only 3 left!

0

38

Homelite 307091001

Clutch Assembly

$

$

Not available

39

Homelite 690689001

Rotor Nut
(Superseded to 6968901)

$

$

Not available

40

Homelite 640574002

Rotor

$10.99

$

Usually ships in 3-7 days

0

41

Homelite 690688001

Woodruff Key (10 mm x 3 mm)
(Superseded to 983784006)

$

$

Not available

42

Homelite 290143001

Lead Wire, Black
(Superseded to 2914301)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 660968004

Screw (M4 x 22 mm, T20 Torx Slotted Recessed Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 290178024

Coil Boot Assembly

$27.99

$

In Stock, only 1 left!

0

45

Homelite 310976001

Fuel Filter

$5.99

$

In Stock, Qty 15

0

46

Homelite 290143002

Lead Wire, Red
(Superseded to 2914302)

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 901697001

Gasket

$1.49

$

In Stock, Qty 5

0

48

Homelite 638267001

Trimmer Outlet

$22.99

$

Usually ships in 3-7 days

0

49

Homelite 300749010

Crankcase Assembly

$72.99

$

In Stock, only 1 left!

0

50

Homelite 900709007

Gasket

$1.49

$

In Stock, Qty 6

0

51

Homelite 642368001

Cylinder

$38.99

$

Usually ships in 3-7 days

0

52

Homelite 660351001

Screw (M5 x 16 mm)
(Superseded to 6635101)

$1.49

$

In Stock, Qty 9

0

53

Homelite 690969001

Washer (ID4.2 x OD10 x 1t)

$1.49

$

In Stock, Qty 5

0

54

Homelite 590462001

Phenolic Spacer (Ignition Module)

$1.99

$

In Stock, only 2 left!

0

Homelite 000998216

Spark Arrestor Kit
(Superseded to 986179001)

Note: (Inc. Key Nos. 3-4 & 6), NOT SHOWN

$

$

Not available

Homelite 120900107

High Altitude Kit

$8.99

$

Usually ships in 3-7 days

0
