BM 25 TEC2 (090309039) - Black Max Trimmer/Edger, 25.4cc, Rev 02 (2020-12) FIGURE C Parts Diagram

Trimmer/Edger, 25.4cc, Rev 02

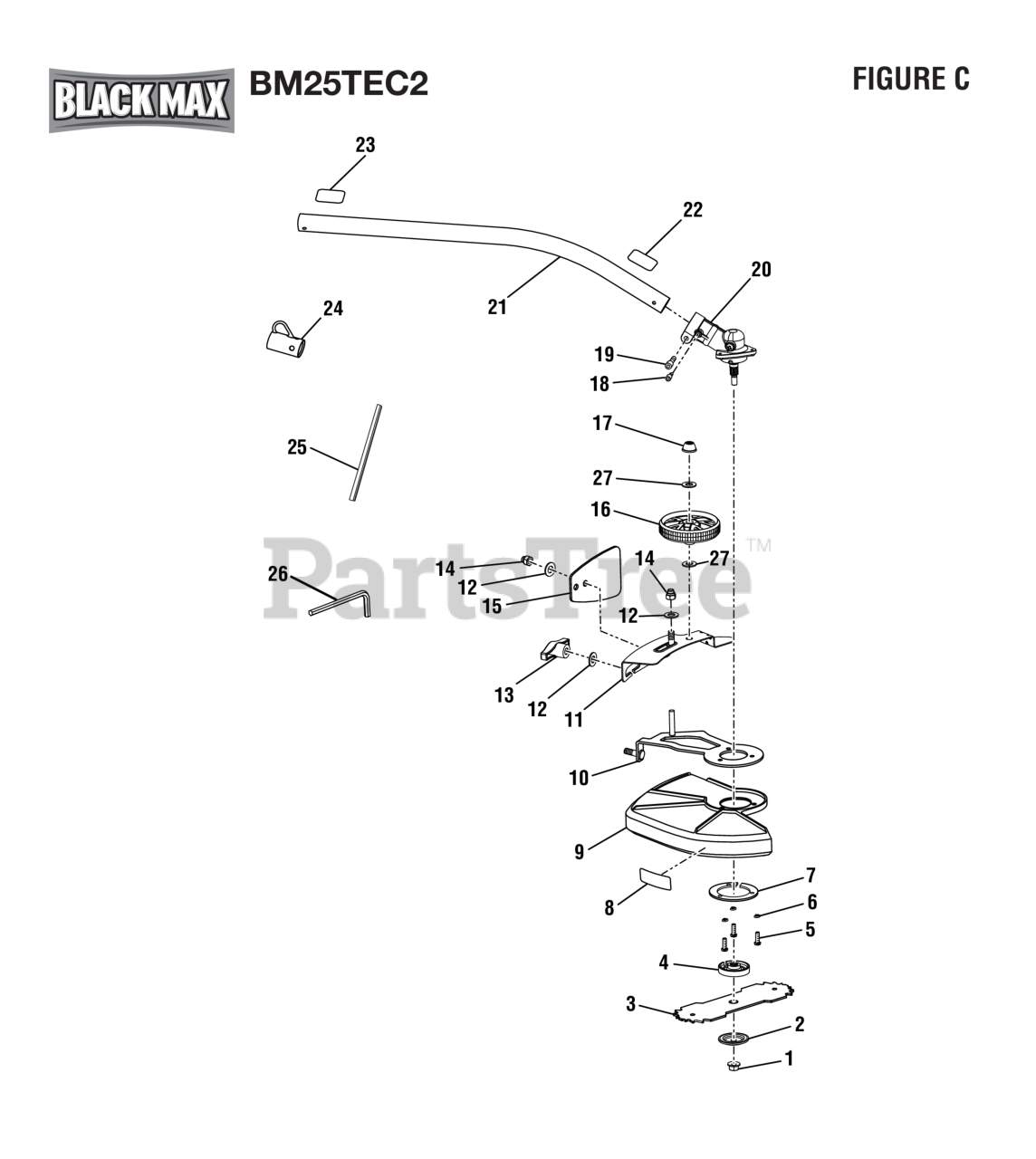

FIGURE C Parts Diagram

  • Title

1

Homelite 678018001

Lock Nut (M8 x 1.25 in., Left Hand Threads)
(Superseded to 04277)

$

$

Not available

2

Homelite 638017001

CUPPED WASHER
(Superseded to 04409)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 638006008

Edger Blade

$

$

Not available

4

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 660887001

Screw (10-24 x 5/8 in, Hex Hd.)
(Superseded to 099078001007)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 678263001

Lock Washer (5 mm)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 678262001

Ring Washer
(Superseded to 099078001009)

$

$

Not available

8

Homelite 940657011

Warning Label (Guard)

$

$

Not available

9

Homelite 308169003

Blade Guard

Note: (Inc. Key No. 8)

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 310515001

Main Frame

$

$

Not available

11

Homelite 310516001

Wheel Frame

$5.99

$

Usually ships in 3-7 days

0

12

Homelite 678258001

Washer (10 mm)
(Superseded to 099078001019)

$

$

Not available

13

Homelite 308730005

Adjusting Knob w/Hex Nut

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 678259001

Hex Nut with Nylon Cap (5/16-18)
(Superseded to 099078001021)

$

$

Not available

15

Homelite 561382002

Debris Flap

$1.99

$

In Stock, only 1 left!

0

16

Homelite 518665001

Guide Wheel

$4.99

$

Usually ships in 3-7 days

0

17

Homelite 308483001

Push Nut (10 mm)
(Superseded to 099078001028)

$1.49

$

In Stock, only 3 left!

0

18

Homelite 660641002

Screw (10-24 x 5/8 in. Hex Socket Hd.)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 660642002

Screw (1/4-20 x 1-1/4 in., Hex. Socket Hd.)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 308210011

Gear Head Assembly

$36.99

$

Usually ships in 3-7 days

0

21

Homelite 205309005

Drive Shaft Assembly

Note: (Inc. Key Nos. 22-24)

$12.99

$

Usually ships in 3-7 days

0

22

Homelite 941489003

Hot Surface Warning Label

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 940657026

Boom Icon Warning Label

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 518019004

Hanger Cap

$1.49

$

In Stock, only 2 left!

0

25

Homelite 678020001

Gear Head Locking Tool
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

26

Homelite 638015003

Hex Key (M4)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 678432003

Washer, ID 11 x OD 18 x 2T

$1.49

$

Usually ships in 3-7 days

0
